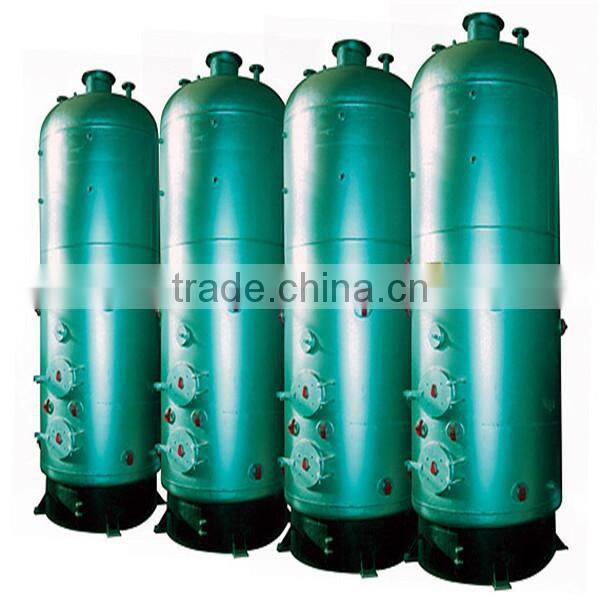

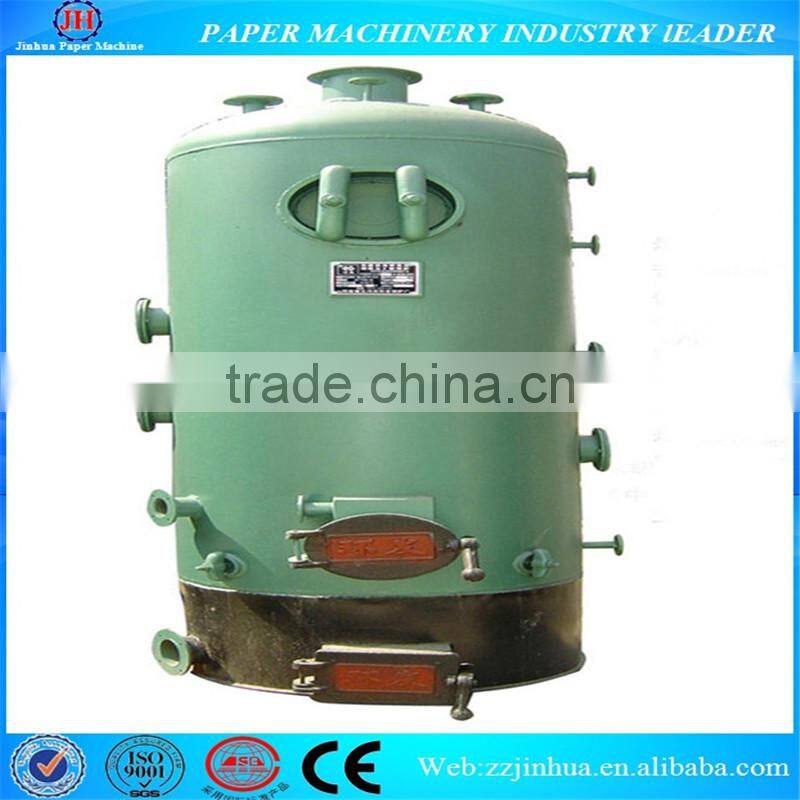

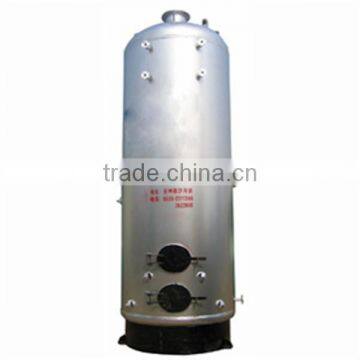

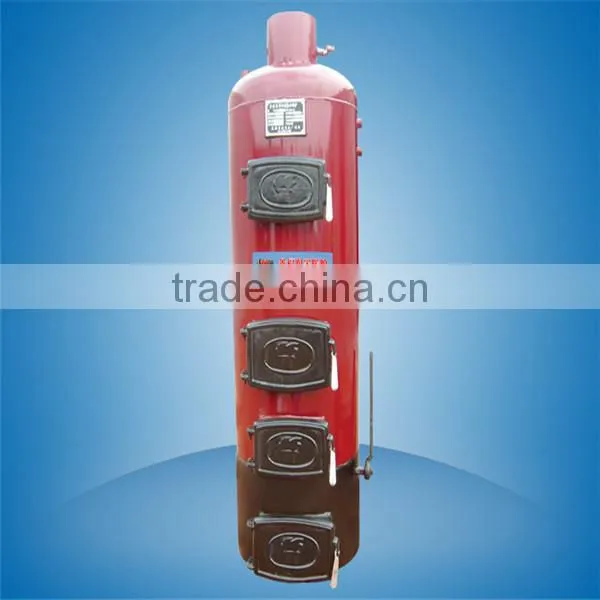

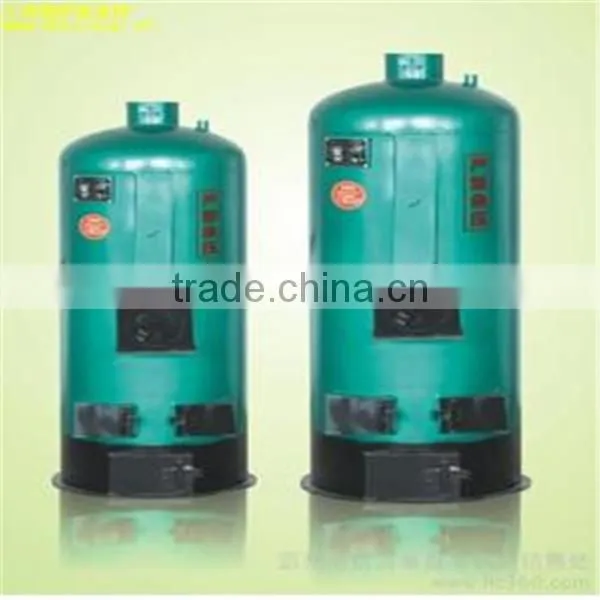

Wood fired steam boiler
Usage:
The steam boiler can be used for producing desired hot water for product manufacturing process in the weave factory, printing and dying, papermaking, and rubber, plastic chemical, pharmaceutical, etc. And for heating room, bath, air conditional, and daily life water in the factories, departments, hotels, schools, restaurants, services industries etc.
The Advantages:
1. Lower fuel consumption.
2. Lower power consumption.
3. Lower heat losses.
4. Boilers are completely trimmed, packaged boilers. No additional fuel train items or
electrical wiring is needed.
5. Integrating with explosion gate, digital control system guarantee the boiler is safe.
6. Unique structure, novelty design, sufficient heated surface and combine with some
enforcement heat transmitting which makes the heat efficiency accomplishing an ideal
state.
| Model | LSB0.5-0.4-WII | LSB0.6-0.4-WII | LSB0.7-0.4-WII | LSB1-0.4-WII | LSB0.5-0.7-WII | LSB0.6-0.7-WII | LSB0.7-0.7-WII | LSB1-0.7-WII |
|
Rated evaporation capacity(t/h) |
0.5 | 0.6 | 0.7 | 1 | 0.5 | 0.6 | 0.7 | 1 |
|
Rated working pressure(Mpa) |
0.4 | 0.4 | 0.4 | 0.4 | 0.7 | 0.7 | 0.7 | 0.7 |
|
Rated steam temperature('C) |
151 | 151 | 151 | 151 | 170 | 170 | 170 | 170 |
| Fuel | WII | |||||||
| Reference weight(t) | 2.8 | 3.4 | 4.2 | 6.2 | 3.1 | 3.6 | 4.6 | 6.8 |
| Diameter size(mm) | 1300 | 1300 | 1400 | 1600 | 1300 | 1300 | 1400 | 1600 |
| Height size(mm) | 3600 | 3800 | 4000 | 4400 | 3700 | 3900 | 4200 | 4600 |
|
Elucidation:1.data and pictures in watch provide the reference only,the product takes real object as to follow,forgiving not to go to another circula such as the alteration because of remodel 2.prepare to make,reserve,and design of the boiler building,pleased contact to confirm before relevant data. | ||||||||
