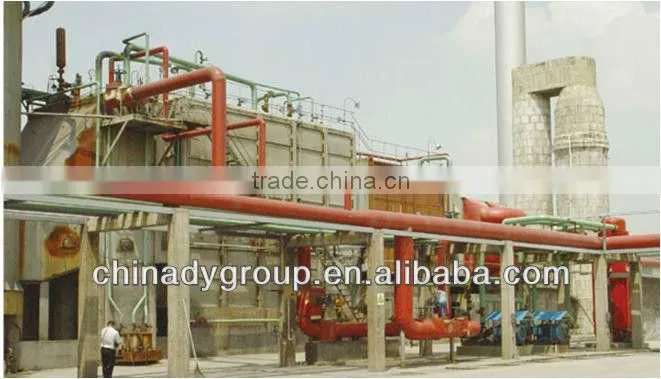

Help CenterQ Series Heat Recovery Boiler for Sale
Related Products
-
Waste Heat Water BoilerNegotiableMOQ: 1 Set -
Packaged Steam Boiler Coal Fired Steam Boiler Industial Steam BoilerUS$ 3,000 - 200,000MOQ: 1 Set
-
Q Series Waste Heat Recovery Steam BoilerUS$ 20,000 - 300,000MOQ: 1 Set
-
SZL Series Combined Steam BoilerNegotiableMOQ: 1 Set
-
35t/h-130t/h Sequence Chain Grate Boiler SZL29-1.25/130/70-AIIUS$ 3,000 - 50,000MOQ: 1 Set
Specifications
Q Series Heat Recovery Boiler1.ASME certificate,ISO9001 Certificate .
2.Rated output(t/h):1.2--50.
3.Rated working pres
Q Series Heat Recovery Boiler features
1,The boiler produces steam using waste-heat in the process of production.It can save energy
and improve economic performance.
2,The heat recovery boiler has the advantages of compact structure,good sealing performance.no pollution,small resistance,easy to operate,safey and reliability,remain heat can be recovered well.
3,HEAT recovery boiler can be designed according to user's technological parameters.

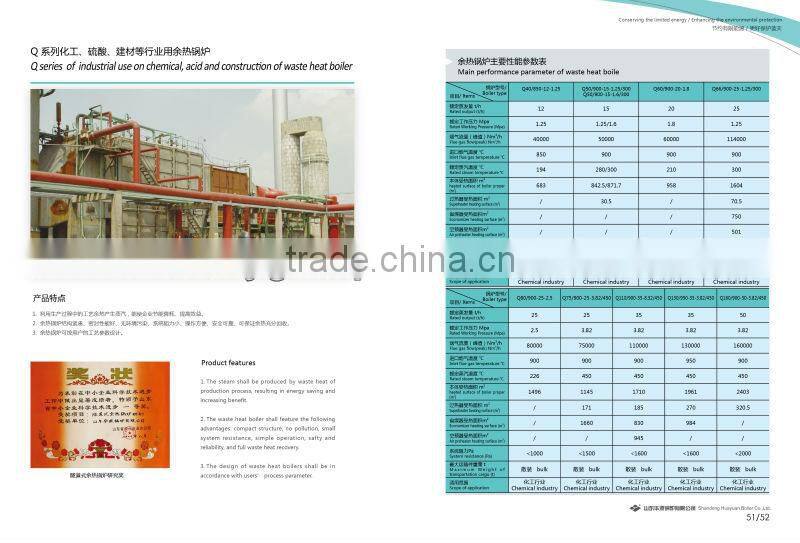

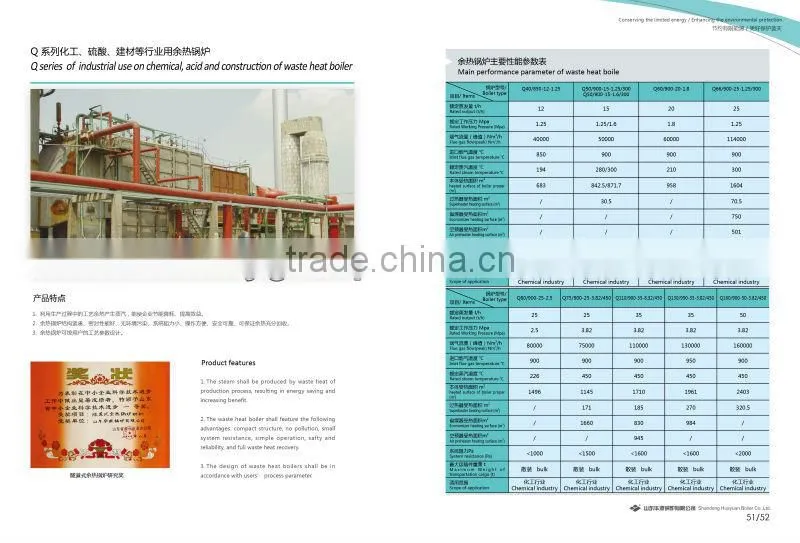

Main Specifications of Waste Heat Boiler | ||||
|
boiler model project |
Q40/850 -12-1.25 |
Q50/900-15-1.25/300 Q50/900-15-1.6/300 |
Q60/900 -20-1.8 |
Q66/900 -25-1.25/300 |
rated steam capacity t/h |
12 |
15 |
20 |
25 |
rated steam pressure Mpa |
1.25 |
1.26/1.6 |
1.8 |
1.25 |
fume flow rate Nm 3 /h |
40000 |
50000 |
60000 |
66000 |
Inlet fume temperature°C |
850 |
900 |
900 |
900 |
rated steam temperature °C |
194 |
300 |
210 |
300 |
the body heating surface m 2 |
638 |
842.5/871.7 |
958 |
1604 |
supereater heating surface m 2 |
/ |
30.5 |
/ |
70.5 |
economizer heating surface m 2 |
/ |
/ |
/ |
750 |
air preheater heating surface m 2 |
/ |
/ |
/ |
501 |
system resistance Pa |
<2000 |
<1500 |
<1000 |
<2000 |
weight of biggest part for transportation t |
38.9 |
In bulk |
In bulk |
In bulk |
range of application |
chemical lines |
chemical lines |
chemical lines |
chemical lines |
Main Specifications of Waste Heat Boiler | |||||
|
boiler model project |
Q80/900 -25-2.5 |
Q75/900 -25-3.82/450 |
Q110/900 -35-8.32/450 |
Q130/950 -35-3.82/450 |
Q160/900 -50-3.82/450 |
rated steam capacity t/h |
25 |
25 |
35 |
35 |
50 |
rated steam pressure Mpa |
2.5 |
3.82 |
3.82 |
3.82 |
3.82 |
fume flow rate Nm 3 /h |
80000 |
75000 |
11000 |
130000 |
160000 |
Inlet fume temperature°C |
900 |
900 |
900 |
950 |
900 |
rated steam temperature °C |
226 |
450 |
450 |
450 |
450 |
the body heating surface m 2 |
1496 |
1145 |
1710 |
1961 |
2403 |
supereater heating surface m 2 |
/ |
171 |
185 |
270 |
320.5 |
economizer heating surface m 2 |
/ |
1660 |
830 |
984 |
/ |
air preheater heating surface m 2 |
/ |
/ |
945 |
/ |
/ |
system resistance Pa |
<1000 |
<1500 |
<1600 |
<1600 |
<2000 |
weight of biggest part for transportation t |
In bulk |
In bulk |
In bulk |
In bulk |
In bulk |
range of application |
chemical lines |
chemical lines |
chemical lines |
chemical lines |
chemical lines |
Main Specifications of Waste Heat Boiler | ||||
|
boiler model project |
Q12/300 -1.21.25(Blue gas afterheat recycling) |
Q6/1000 -2-1.25(Blue gas afterheat recycling) |
Q10/1000 -4-1.25/350 |
Q15/900 -4-1.25/280 Q15/900-4-1.6/280 |
rated steam capacity t/h |
1.2 |
2 |
4 |
4 |
rated steam pressure Mpa |
0.25 |
1.25 |
1.25 |
1.25/1.6 |
fume flow rate Nm 3 /h |
12000 |
6000 |
10000 |
15000 |
Inlet fume temperature°C |
300 |
1000 |
1000 |
900 |
rated steam temperature °C |
138 |
194 |
350 |
280 |
the body heating surface m 2 |
248 |
70 |
84 |
278/292 |
supereater heating surface m 2 |
/ |
/ |
115 |
7.1 |
system resistance Pa |
<500 |
<500 |
<1000 |
<1000 |
weight of biggest part for transportation t |
18.2 |
12 |
24.5 |
22.7/24.5 |
range of application |
chemical lines |
sulfacid |
sulfacid |
chemical lines |
Main Specifications of Waste Heat Boiler | ||||
|
boiler model project |
QCF10/950-5 -2.45/400 |
Q18/900-6- 1.25/280 Q18/900-6- 1.6/280 |
Q26/900-8- 1.25/250 Q26/900-8- 1.6/280 |
Q36/900-10- 1.25/250 Q36/900-10- 1.6/250 |
rated steam capacity t/h |
5 |
6 |
8 |
10 |
rated steam pressure Mpa |
2.45 |
1.25/1.6 |
1.25/1.6 |
1.25/1.6 |
fume flow rate Nm 3 /h |
10000 |
18000 |
26000 |
36000 |
Inlet fume temperature°C |
950 |
900 |
900 |
900 |
rated steam temperature °C |
400 |
280 |
250/280 |
250/280 |
the body heating surface m 2 |
150 |
371.3 |
418/436 |
506 |
supereater heating surface m 2 |
30 |
9.46 |
9.55 |
12.4 |
system resistance Pa |
<1000 |
<1000 |
<1000 |
<1000 |
weight of biggest part for transportation t |
In bulk |
25.4/28.2 |
32.4 |
38.8 |
range of application |
pyrite-acid |
chemical lines |
chemical lines |
chemical lines |
