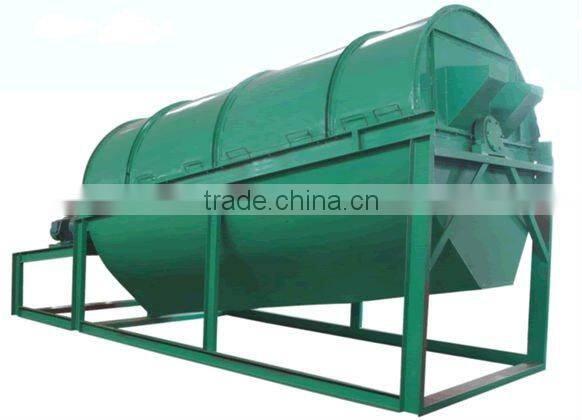

Diameter 1500mm sand trommel machine
- 30 Set / Sets per Month
- Tianjin/Qingdao/Shanghai
Product Details
Condition: | New | Type: | Circular | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | Tongxin | Model Number: | GS1500 |
Voltage: | 380V,50hz,3phas (can be customized) | Power(W): | 4kw-15kw | Dimension(L*W*H): | can be customized |
Weight: | varity | Certification: | ISO9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
We are the professional manufacture of drum sieve machine ,and we have 20 years history of producing screening equipment /elevating equipment /conveying equipment /feeding equipment .

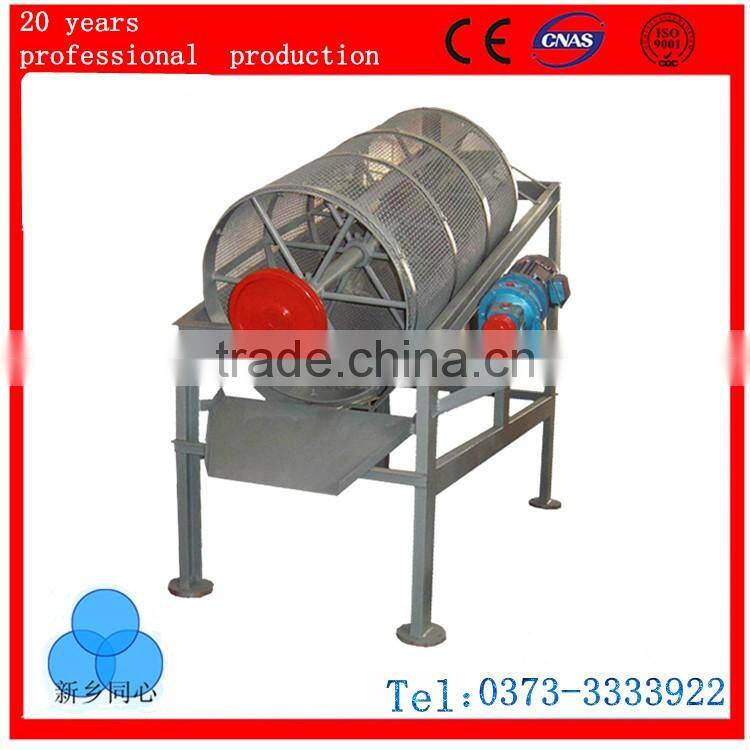

Drum sieve machine (open type )
(1)Operating Principle
Trommel screen consists of motor, decelerator, rotordrive, chassis, seal cap, inlet and outlet. Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
(2)Features
♣Configured for classification, screening and grading
♣Simple structure, higher reliability, low investment cost
♣Large processing capacities
♣Smooth running, low noise
♣Easy maintenance
♣Unique screen design, result in higher capacities, longer screen life and less blocking of mesh screen
♣Accord with ISO9001:2008 and CE certification
(3)Applicable Industry
♣Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
♣Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
♣Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
♣Metallurgy, construction and other industries
(4)Parameters
Model | Material | Type | Capacity | Drum | Length of Screen | Screen Size | Deck | Power | |
(m3/h) | (mm) | (mm) | (KW) | ||||||
GS-600 | 1. Carbon steel 2.Stainless steel | 1.Sealed type
2.Open-type | 1-5 | Φ600 | 1500-3000
| According to customer | 1-5 | 3 | |
GS-800 | 1-10 | Φ800 | 1-5 | 3 | |||||
GS-1000 | 20-30 | Φ1000 | 1-5 | 3 | |||||
GS-1200 | 20-50 | Φ1200 | 1-5 | 3 | |||||
GS-1500 | 40-80 | Φ1500 | 1-5 | 5.5 | |||||
GS-1800 | 80-150 | Φ1800 | 1-5 | 7.5 | |||||
GS-2000 | 130-200 | Φ2000 | 1-5 | 11 | |||||
Remarks: 1) The length of screen surface is customized according to customer requirement, and is related to the sifting ratio. 2) According to the difference of working environment, the trommel screen can be equipped with vibration motor(indoors) or diesel engine(outdoors) 3) Dust-collecting device can be provided as requested. |
Note:Re-design the special requirements according to the users.
Below are the pictures of the drum sieve machine ,only for reference.
Welcome to visit our old and new factory
(Contact us :Tel 86-373-3333922 Fax 86-373-3382033)
Our customers visisted our factory
(contact us :Tel:86-373-3333922 Fax 86-373-3382033 QQ:2080094363)
Our cooperation customers
Address:
Industrial cluster ,Guguzhai town,Xinxiang County ,Xinxiang city ,Henan Province,China(Mainland)
Alibaba website: http://xxtongxin.en.china.cn
Inquire us today or give us a call,let our professional team help you with the best
solutions.
Tel:+86-373-3333922
Fax:+86-373-3382033
