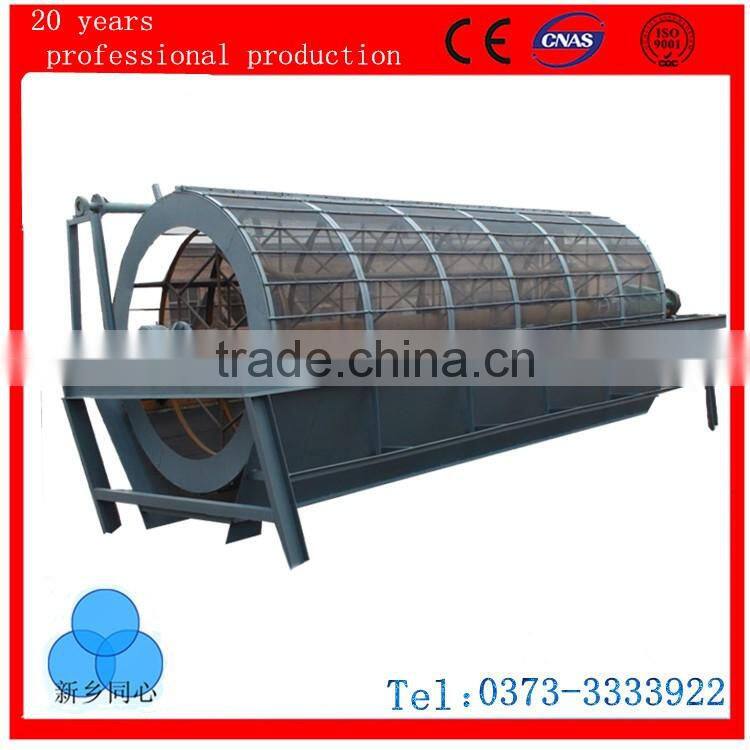

Hot Sale Drum Screen in Machinery (open Type)

We have 20 years professional history of producing drum screen machine ,and we have exported to many countries and got their high praise.

(contact us :Tel:86-373-3333922 Fax 86-373-3382033 QQ:2080094363)

open type  Drum screen

1.Main Information:(contact us :Tel:86-373-3333922 Fax 86-373-3382033 QQ:2080094363)

 Drum sieve other name is 5 drum-type automatic sieve feeder, The overall design stratified isolated automatic screen feeding system, and fundamentally solve the power consumption of large vibrating screen, screen wear fast, difficult to replace the screen, and many other users are difficult to resolve problems.

2.Chracteristics:

 Sieve drum feeder with a high yield, loss of small, screening materials, low cost, simple installation, easy maintenance and so on.

3. Use in many industries:

 Is refractory factory, ceramics factory, furnace charge plant, coal washery, quartz powder factory sieve materials such as the ideal professional equipment manufacturers.

4. Basic Priciple:(contact us :Tel:86-373-3333922 Fax 86-373-3382033 QQ:2080094363)

 This machine adopts transmission-type deceleration systems, the design speed and reasonable speed cylindrical 84 m / min, inner circle 57 meters / min. If users want to adjust when the screen is expected to replace a pulley rotational speed can be achieved only speed purposes.

5. Screen mesh:

The choice of screen mesh machine factory specifications for 1mm, 3mm, 5mm, 8mm, 4 sieve, on-line for more than 8mm, a total of 5 weed out the material. Users can choose according to their own material situation of the specifications of the replacement screen, replacement screen more easily, simply remove the screen layering and installing new screws can be online.

6.Feeding systems:(contact us :Tel:86-373-3333922 Fax 86-373-3382033 QQ:2080094363)

 Drum screen feeder feed inlet design specifications for the φ400mm and with a certain degree of tilt, the user can use manual feed or automatic feeding systems. Inlet height from the ground 1650mm (feed port centerline) rolling screen feeder discharge port is divided into five, each set in different locations, you can ensure that a material without mixing, discharging port specification 100 200mm.

7.The manual loading:

 Screen out material when the manual loading, discharging port packaging bag can be fixed does not fall off, the replacement Liaodai discharge port when closed, so that a small amount of artificial replacement, mobile Liaodai time. Discharge port from the ground height 500 - 600mm, the user automatic discharge system, the machine discharge port to meet the minimum spacing of 400mm the average user automatic discharging system is installed.

8.Deceleration systems:

This machine adopts transmission-type deceleration systems, the design speed and reasonable speed cylindrical 84 m / min, inner circle 57 meters / min. If users want to adjust when the screen is expected to replace a pulley rotational speed can be achieved only speed purposes.

9.Automatic closed system:

  5 drum-type screen feeder machine design using automatic closed system that can effectively prevent the vibrations of dust flying around the harsh environment, basically the site operator can guarantee physical and mental health.

10.Voltage systems:(contact us :Tel:86-373-3333922 Fax 86-373-3382033 QQ:2080094363)

 This machine adopts three-phase 380V voltage systems, electrical power of 2.5 kW, basically solved the shaker power of big, easy to damage to motor bearings, long-term eccentric, vibration, heat and burning electric motor problems.

11.Overall design:(contact us :Tel:86-373-3333922 Fax 86-373-3382033 QQ:2080094363)

This machine adopts the overall design, installation and transportation convenient, not to fight foundation, can be connected to the power of production, greatly reducing the installation period. Professional Factory For a foundation to fight, just rack legs were fixed by one can be foot screw.

12.Basic parameters of Table:

 Note: The factory can produce sizes according to user requirements models

Note: while the special requirements of the user to re-design.

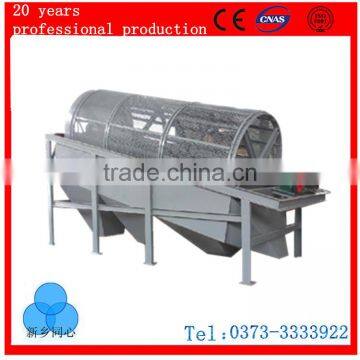

 Below are the pictures of the open type drum screen  ,only  for reference .

Our certificates (contact us : Tel:86-373-3333922 Fax 86-373-3382033 QQ:2080094363)

Here are some pictures of our factory ,welcome to visisted our factory from all over the world .(Contact us :Tel 86-373-3333922  Fax 86-373-3382033 QQ:2080094363)

Our customers visisted our factory

(contact us :Tel:86-373-3333922 Fax 86-373-3382033 QQ:2080094363)

Except the drum screen machine   ,we also have other screen equipment,such as linear vibrating screen machine /mining vibrating screen machine /rotary vibrating screen /WS air sieving machine .
