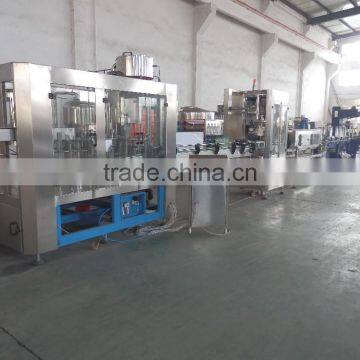

Fruit Juice/water/beverage/ Filling and Sealing Production Line Machine

FOB Price

US$ 10,000 - 50,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	JZ
Model Number	RGCF		Certification	ISO

fruit juice filling line parameter

Model	RCGF12126	RCGF18186	RCGF24248	RCGF32328	RCGF404010	RCGF505012	RCGF606015	RCGF808020
Number of washing ,filling, capping heads	12-12-5	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15	80-80-20
Production capacity (500ml) B/H	3000-4000	5000-6000	8000-10000	12000-14000	16000-18000	20000-24000	24000-28000	36000-40000
Suitable bottle type (mm)	H=170-320 φ=50-100(330-1500ml)
Spraying pressure (MPa)	0.25-0.3
Total power(kw)	2.2+0.37	2.2+0.37	3+0.45	5.5	7.5	11	15	19
Overall dimensions(mm)	2400×1750 ×2500	2500×1860 ×2550	3100×2100 ×2550	3800×3000 ×2850	4650×3300 ×3400	4850×3650 ×3300	6500×5400 ×3500	7650×6400 ×2700
Weight(kg)	2600	3500	4650	6800	8500	10000	12500

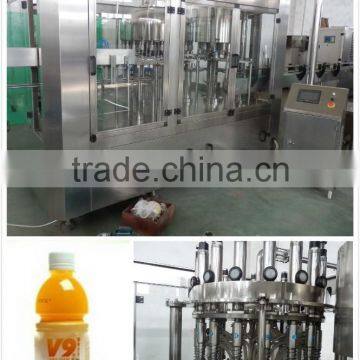

juice filling line, hot filling machine

it is used for filling fruit juice, tea drink into PET bottles. we can supply the whole production line.

Characteristics:

1. The washing, filling and capping 3 kinds of jobswill be finished just by this one machine.

2. it is very convenient to change diverse sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjustedby frequency conversion device.

4. In case of overheat it will alarm while if temperature is lower than standard the machine will stop and the liquid will flowback.

5. Main electronic components are all from famous international enterprises.
