Plastic Bottle Juice Filling Manufacturing Plant

Plastic Bottle Juice Filling Manufacturing Plant thumbnail-1
Plastic Bottle Juice Filling Manufacturing Plant thumbnail-2
Plastic Bottle Juice Filling Manufacturing Plant thumbnail-3
Plastic Bottle Juice Filling Manufacturing Plant thumbnail-4
Plastic Bottle Juice Filling Manufacturing Plant thumbnail-5
Plastic Bottle Juice Filling Manufacturing Plant photo-1

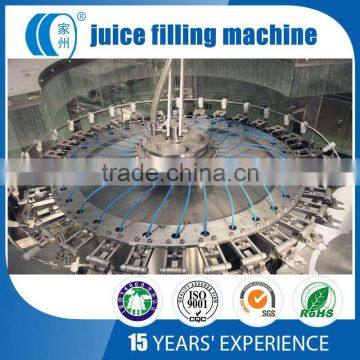

Plastic Bottle Juice Filling Manufacturing Plant photo-2

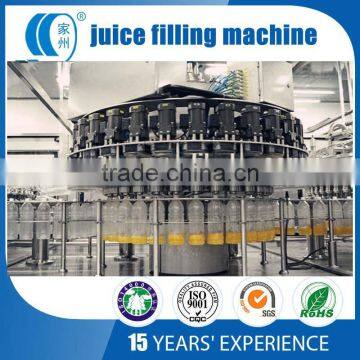

Plastic Bottle Juice Filling Manufacturing Plant photo-3

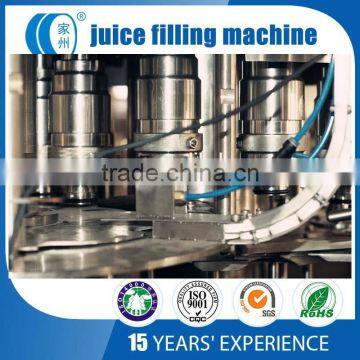

Plastic Bottle Juice Filling Manufacturing Plant photo-4
Plastic Bottle Juice Filling Manufacturing Plant photo-5
US$ 7,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Juice Or Tea
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for juice filling manufacturing plant
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Other, Beverage, Juice Or Tea
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number RCGF
Dimension(L*W*H) 2800*2900*3000mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Plastic bottle juice filling manufacturing plant

Juice Washing Station:
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star wheel thus
 guaranteeing a safe grip.

After the gripping, the bottle is turned upside down and cantredabove a spraying nozzle which directs a

stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position

again.

Juice Filling Station:

-The star-wheels drive the bottles always "by the neck" through the rinsing,

filling and capping steps. For the various types of bottle, it is easy to adjust

the structure for the operator by our specialized design. -Product bowl is to reduce the loss of heat.
If the temperature is low than the setting value, the filling valves will stop and return the last beverage

in filling valve to recycle tank and return to UHT again to sterilize with pump.

Juice Capping Station:

-Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating

 the capping heads.

Product display Plastic bottle juice filling manufacturing plant

Plastic bottle juice filling manufacturing plant



Plastic bottle juice filling manufacturing plant



Plastic bottle juice filling manufacturing plant

Product Parameters Plastic bottle juice filling manufacturing plant
Model RCGF
18186		 RCGF
24248		 RCGF
323212		 RCGF
404015		 RCGF
505018		 RCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000

Plastic bottle juice filling manufacturing plant

C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Plastic bottle juice filling manufacturing plant
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
Plastic bottle juice filling manufacturing plant
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Plastic bottle juice filling manufacturing plant
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
Plastic bottle juice filling manufacturing plant
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
Plastic bottle juice filling manufacturing plant
C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
Plastic bottle juice filling manufacturing plant
