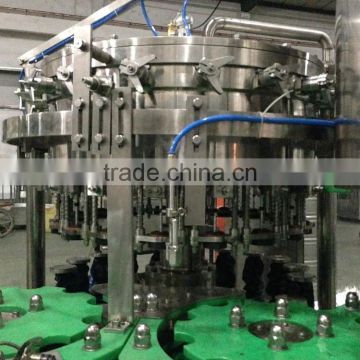

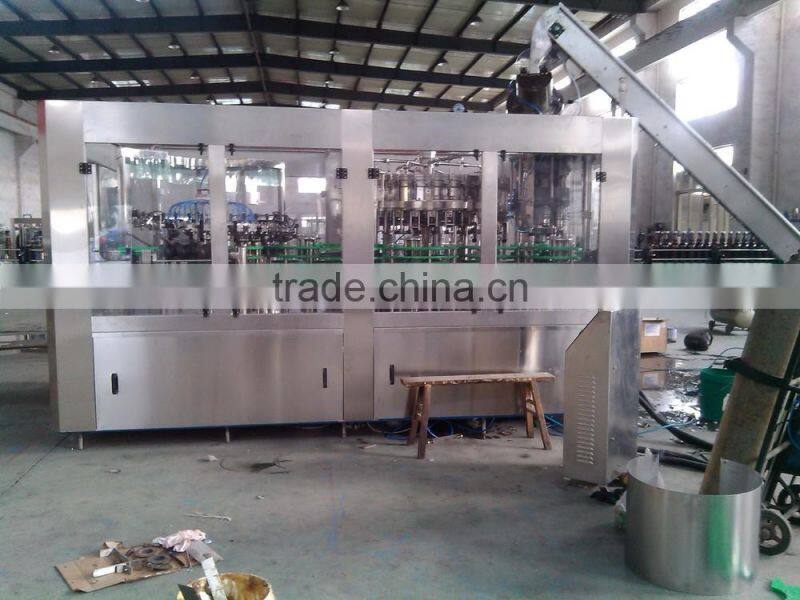

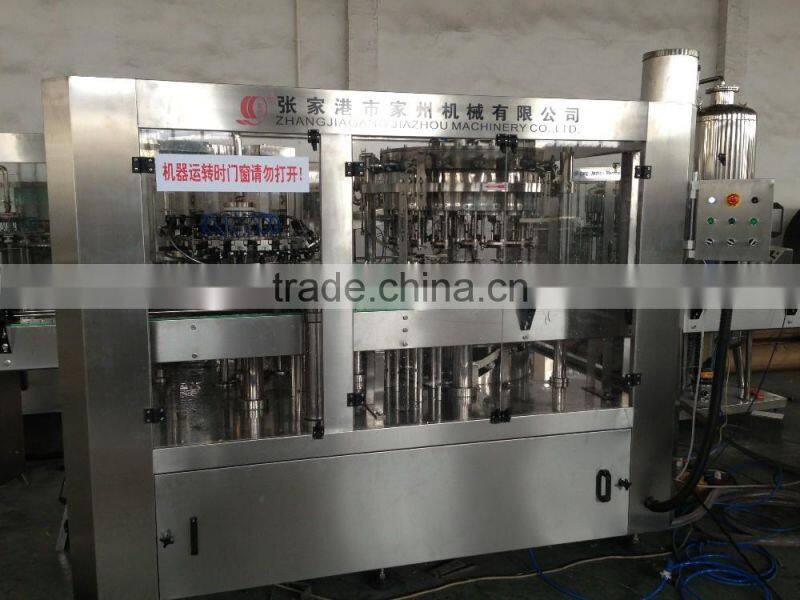

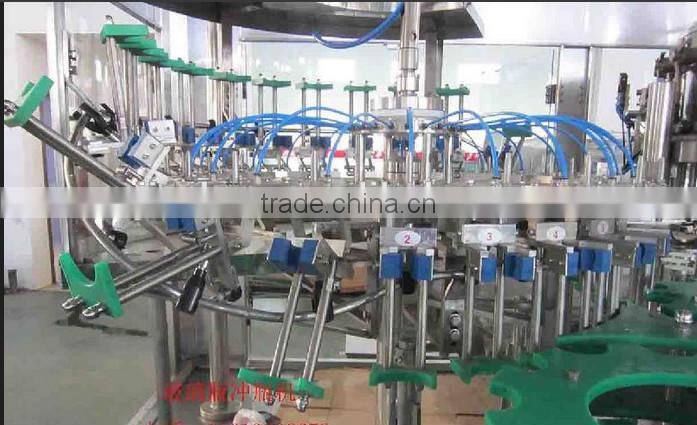

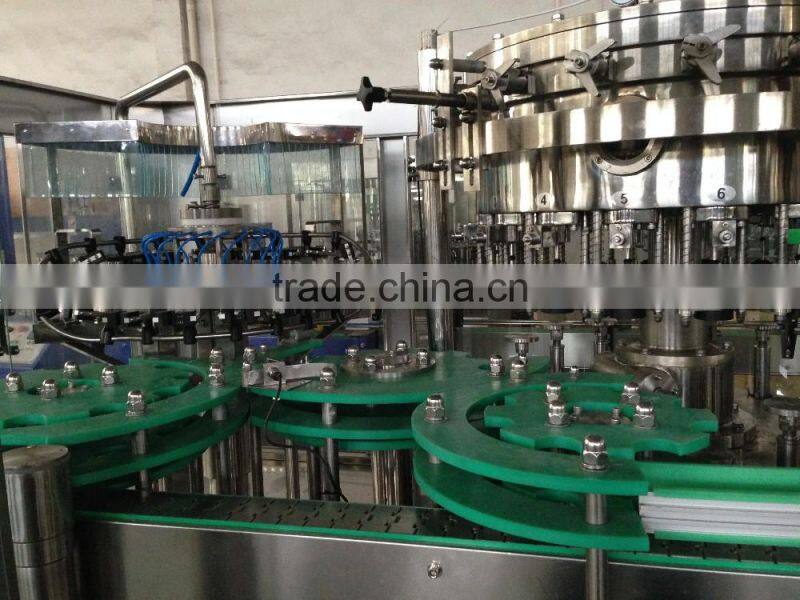

Carbonated glass bottle Drink Filling Machine
Carbonated glass bottle Drink Filling Machine combines washing, filling and rotary capping functions in one unit,is a fully automatic and high efficieney liquid packing equipment.
It is suitable for packing beverage containing gas. Its performance is as follwing:all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature. Using programmable controller to realize fully automatic control from bottles entering to finishing packing.
Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting equal pressure filling principle and current spring valves in order to assure beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
· Main Technical parameters | |||||||||
Model |
CGFD16126 |
CGFD8186 |
CGFD4248 |
CGFD32328 |
CGFD4010 |
CGFD4812 |
CGFD6015 |
||
Filler/Capper heads |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
48-48-12 |
60-60-15 |
||
Bottle diameter(mm) |
Φ=50-100 H=170 330-1500ML |
Φ50-Φ110 |
H=160-340 |
|
|
||||
Production capacity (b/h) |
2000-4000 |
4000-7000 |
8000-10000 |
10000-12500 |
12500-15000 |
16000-20000 |
20000-24000 |
||
Filling temperature |
0-5 |
||||||||
Filler type |
Balanced pressure filler |
||||||||
Spraying pressure |
0.2-0.25 |
0.2-0.25 |
|||||||
Filling pressure |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
|
|
|
|
||
Motor power(kw) |
1.5+0.12+0.45 |
2.2+0.55+0.45 |
3+0.37+0.55 |
7.5 |
8.6 |
11 |
15 |
||
Overall dimension |
2300×1600×2500 |
2460×1860×2650 |
3100×2100×2650 |
4350×2880×3200 |
4850×3800×3200 |
5000×4000×3300 |
6500×5800×3200 |
||
weight kg |
2800 |
3650 |
4800 |
6000 |
7500 |
|
|
|
|
related machine--------co2 mixer
warmer machine
ink jet printer
PE film packing
WATER TREATMENT:
1. stretch film packaging to save container space
2. standard wooden case to protect machine's important part.
Our Service:
1. one year gurantee, free charge for spare parts in warranty.
2. engineer available to service overseas.
3. good quality competitive price. ISO9001:2008 and BV certificate
