Automatic Small Beer Bottling Machine/beer Filling Machine Equipment

Name: Automatic Small Beer Bottling Machine/beer Filling Machine Equipment
Brand: JIAZHOU
SKU: 140470538
Availability: InStock

Zhangjiagang Jiazhou Machinery Co., Ltd.

US$ 15,000 - 20,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

Other, Beer filling machine

Packaging Type:

Bottles

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Beer filling machine

Packaging Type Bottles

Packaging Material Glass

Automatic Grade Automatic

Driven Type Electric

Voltage 220V

Power 2.2KW

Place of Origin Jiangsu, China

Brand Name JIAZHOU

Model Number BCGF 18-18-6

Dimension(L*W*H) 2360*1880*2750MM

Weight 3T

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

P/roduct information

Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description

BCGF 18-18-6 Glass Bottle Beer Filling 3 in 1 Monoblock Unit

The parts contact with the drink all made of good stainless steel (Minimum 304).

Driving and conveying System are driven by seamer.
Gas-controlling system receives and distributes the air/CO₂etc. to each point. All tie-ins with decompress valve and filters.
With centralized panel and touch screen. PLC and frequency inverter control.
Beer inlet is by a pneumatic adjusting valve. Inside the filling bowl, there is liquid level control sensor to balance the filling bowl level and pressure by integral control of the beer inlet valve.
Seaming roller and pressing head material: Stainless steel imported from Switzerland or Taiwan.
For beer, prefers to adopt Stainless steel instead of Cr12MoV to avoid eroding.

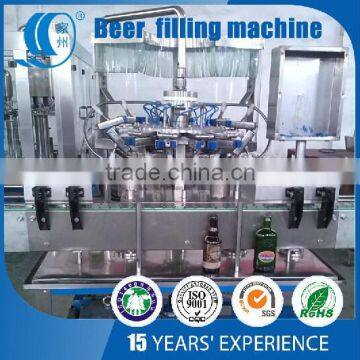

Product display

Product Parameters

Model	BCGF14-12-4	BCGF18-18-6	BCGF24-24-8	BCGF32-32-10	BCGF40-40-12	BCGF50-50-15
Washing heads	14	18	24	32	40	50
Filling heads	12	18	24	32	40	50
Capping heads	4	6	8	10	12	15
Applicable bottle	Bottle diameter(mm): 50-90 Bottle height(mm): 150-310
Applicable cap	Crown cap
Capacity	1500-2000	4000	6000	8000	10000	14000
Main machine Motor(KW)	1.5	2.2	4	5.5	7.5	11
Overall dimensions(mm)	1850x1650x2750	2360x1880x2750	2670x2200x2750	4050x2290x2750	3800x3000x2850	5400x3350x2850
Weight(kg)	3200	3800	4200	5200	6700	8500
