Beer Bottle Filling Machine

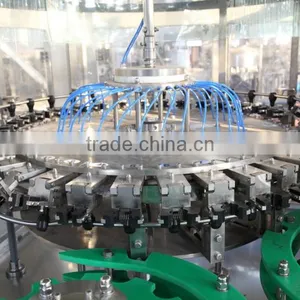

Beer Bottle Filling Machine thumbnail-1
Beer Bottle Filling Machine thumbnail-2
Beer Bottle Filling Machine photo-1

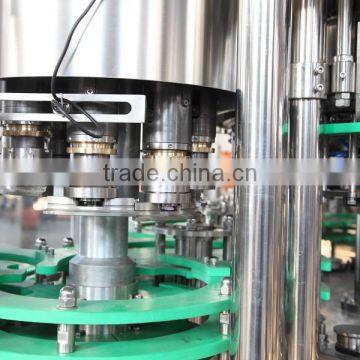

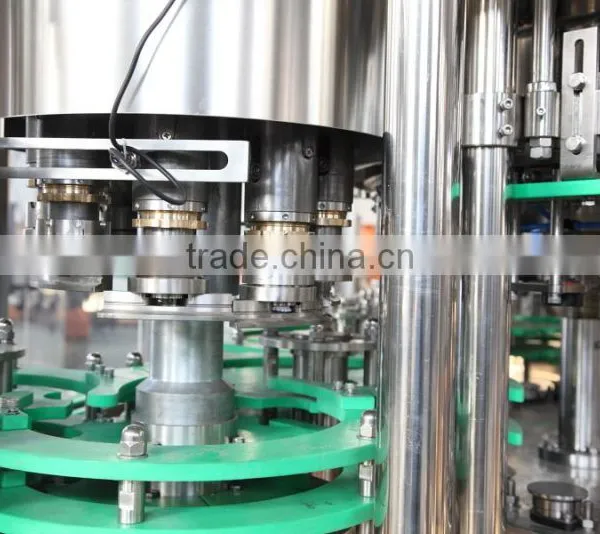

Beer Bottle Filling Machine photo-2
US$ 5,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage Customized
Power 2.5KW
Model Number BCGF
Dimension(L*W*H) 2200X2100X2200MM
Weight 5500KG
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Beer Bottle Filling Machine
P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Beer Bottle Filling Machine
Product display Beer Bottle Filling Machine
Beer Bottle Filling Machine
  Beer Bottle Filling Machine

Equipment overview:
Glass bottle beer filling machine is based on the introduction, digestion and absorption of foreign advanced technology, according to China's beer filling process requirements, innovative research and development of an advanced level of filling equipment. It has the advantages of advanced structure, stable operation, reliable operation, safe operation, convenient maintenance, stepless speed regulation and high efficiency. It is a ideal equipment for small beer production plant.



Specific characteristics of equipment:
A, Filling valve with high precision mechanical filling valve, with no bottle no vacuum mechanism.
B, External mechanical valve structure, the body without spring and seal, the material is stainless steel.
C, With two vacuum pumping capacity, equipped with high pressure shock device.
D, Drive with open gears and gear box combination drive. Frequency conversion stepless speed regulation, speed range.
E, The drive of the machine is equipped with automatic lubricating device for lubricating grease, which can be used to lubricate the oil supply at the required time. High transmission efficiency, low noise, long life.
F, In the red gas or by pouring wine, because of the quality of the bottle caused by the explosion of the bottle, the wine valve automatically shut down, and equipped with automatic bottle washing device.
G, Using magnetic stainless steel hopper, crown cap sorting, under cover, cover are transmitted from the magnetic and in operation in the cover is not easy to deformation, under cover a large quantity and unobstructed, gland reliable and automatic unloading function, reduce bottle breakage rate.
H, Pairs of middle - and - oriented with double - guide rod, have the function of pre - cover.

I, Stable and reliable in bottle.
J, Lift and jar crowner head for electric lift, in order to adapt to different bottle height range of design.
K, The material level in the filling cylinder is controlled by the electrical probe, and the liquid level is stable and the filling is reliable.
