Automatic Soft drink or Carbonated Drink Filling Machine
Carbonated drink filling system 's Description

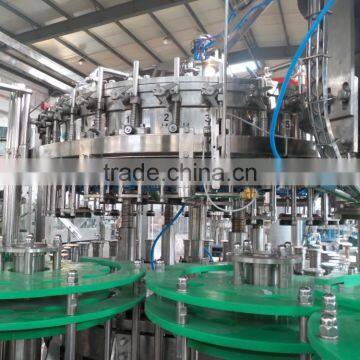

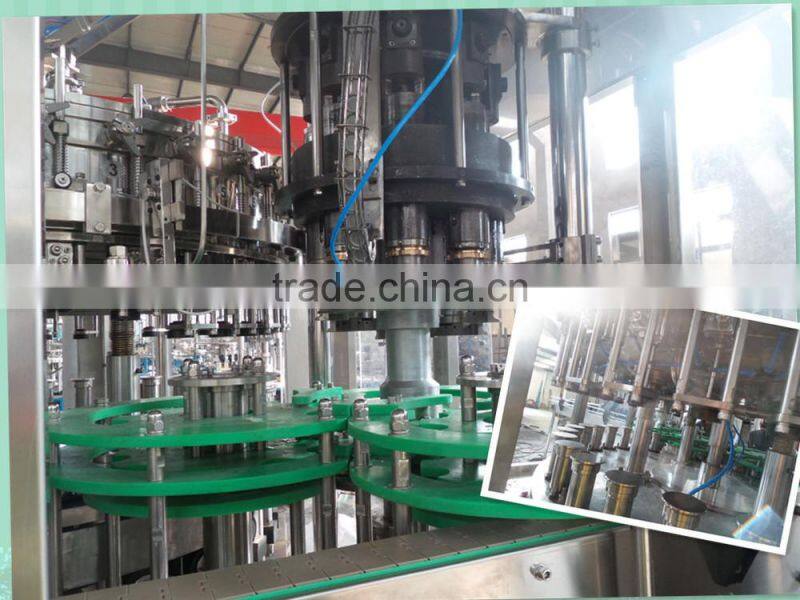

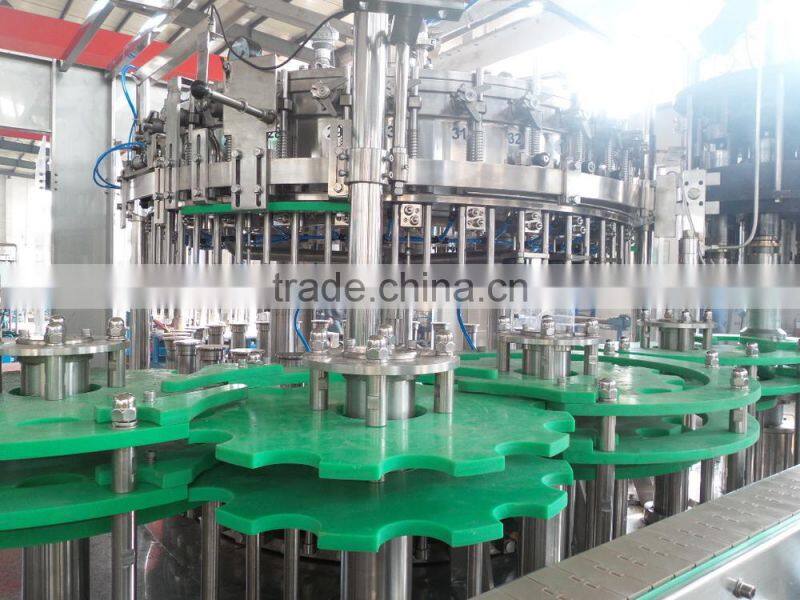

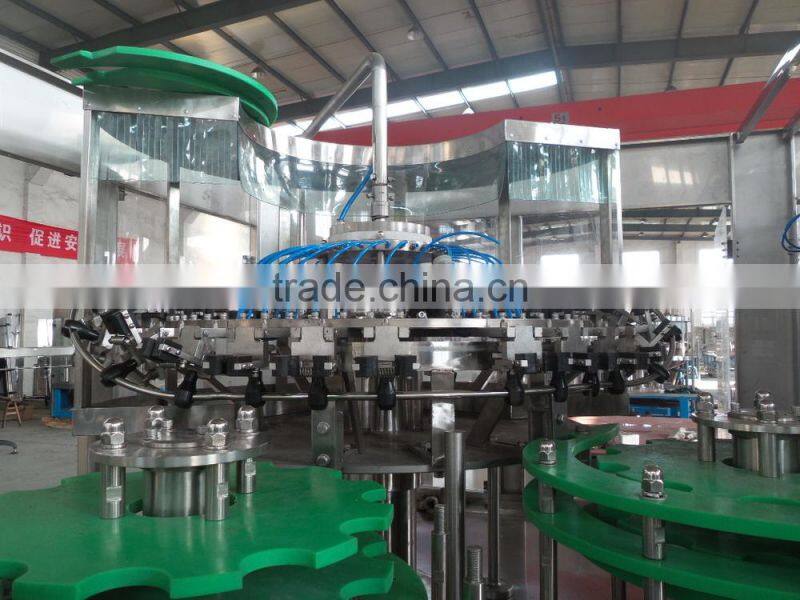

1) Rinser / filler / capper monobloc
2) Bottle material: PET, glass, metal
3) Bottle volume: 150ml - 2.5L
4) Production capacity: 50 - 22,000bottles/h
5) Can design according to customers' demands 6) We can supply filling line solution and filling machines for soft drinks (carbonated drinks)
Trademark:sheenstar
Carbonated drink filling system 's Technique parameter
Filling temperature: 3-5degree
Total power: 4.2KW
Conveyor form: air conveyor

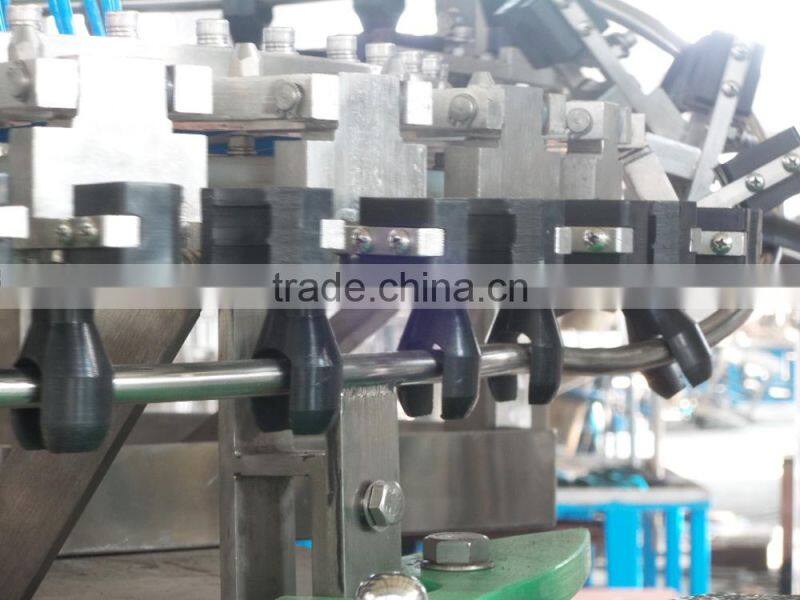

Bottle neck-hanging: GERMAN KRONES
Washing: new type pf bottle neck hanging: GERMAN KRONES

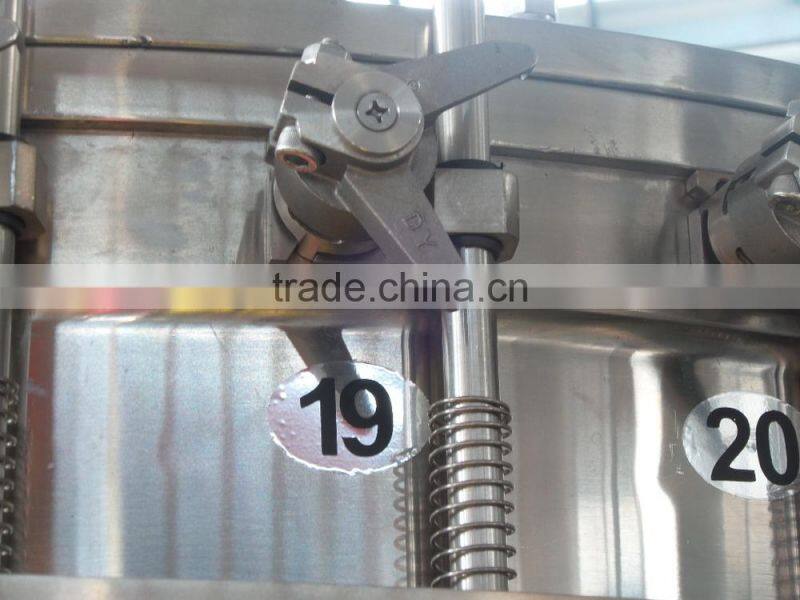

Filling: new type of filling valve GERMAN KRONES

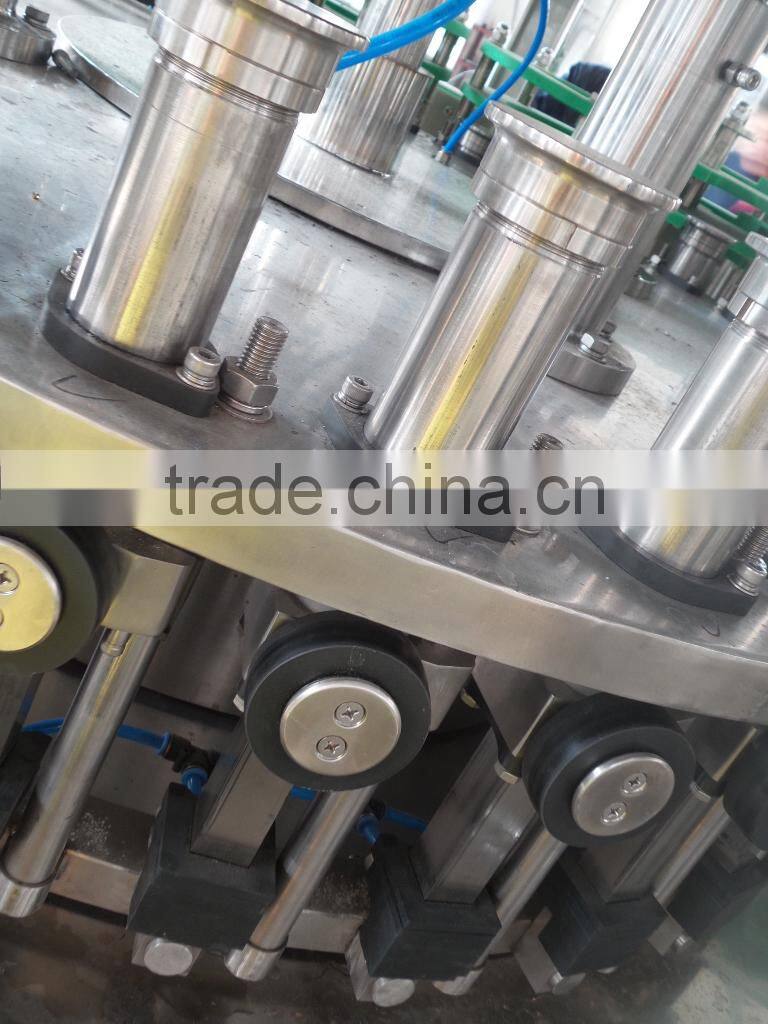

Sealing: magnetic capping technique GERMAN KRONES
Touch screen: TAIWAN WENVIEW
Transducer: American EMERSON
Main electric: GERMAN SIEMENS
PLC: JAPAN OMRON
Approach switch: Korea AUTONICS
Light Fiber switch: Korea AUTONICS
Reducer: HANGZHOU JIE BRAND
Motor: shanghai
Pneumatic elements: TAIWAN AIRTAC
Bottle application: glass bottle
Diameter of bottle body: Φ 50mm —Φ 100mm
Height: 150mm -320mm
Maximum of cap: Φ 40mm
Cap application: plastic
Adjustable form: transducer
Power of Cap unscramble: 0.37kw
Pressure of water supplier: >0.06MPa <0.2Mpa
Height of liquid in slot: 1 -2.5m
Air supplier: >0.5MPa
The pressure of compressor in carbonated drinks: 3MPA
Carbonated drink filling system 's Main Data
Model: | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-12 | DCGF40-40-12 | ||
Capacity :500ml | 5000 | 8000 | 12000 | 16000 | ||
Bottle shape: | roud or square | |||||
PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
Cap: | PE srew cap | |||||
Filling precision: | ≤±5mm | |||||
Filling pressure:(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | ||
Rinsing pressure:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | ||
Filling volume :(L) | 3.5 | 4 | 6 | 8 | ||
Overall size:(mm) | 2450*1800 *2350 | 2780*2200 *2350 | 3600*2650 *2350 | 3800*2950 *2400 | ||
Weight: (kg) | 3500 | 4500 | 5500 | 6500 | ||

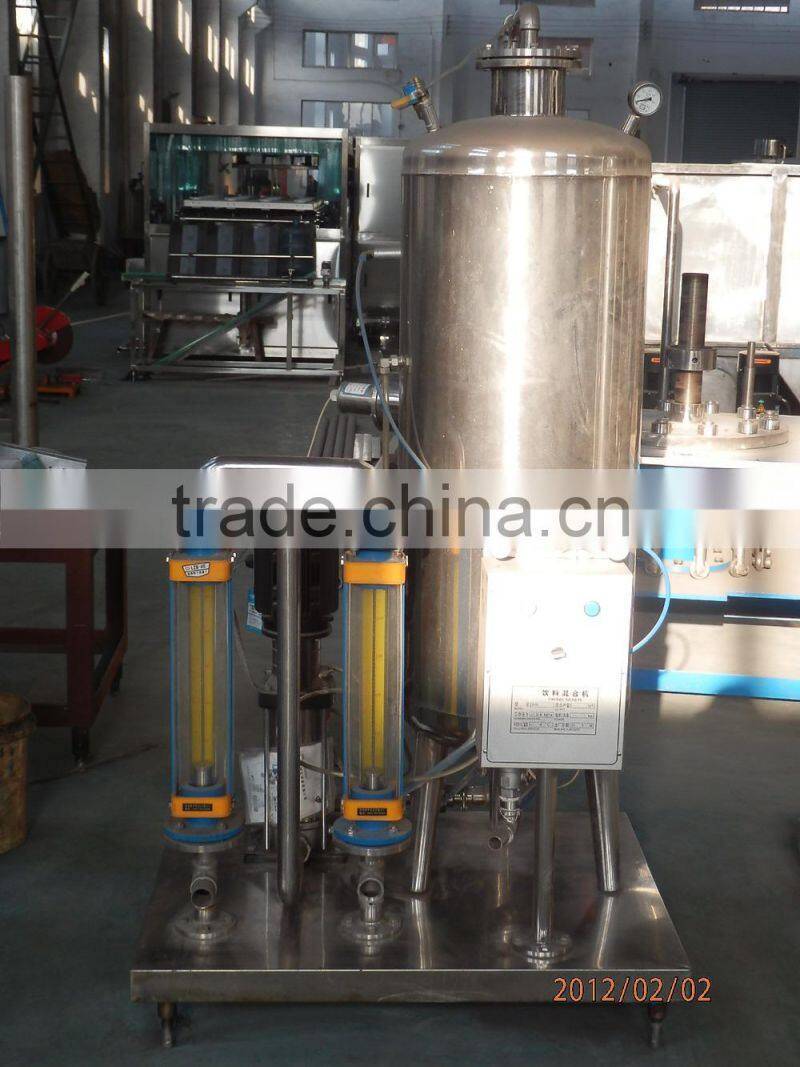

related machine--------co2 mixer

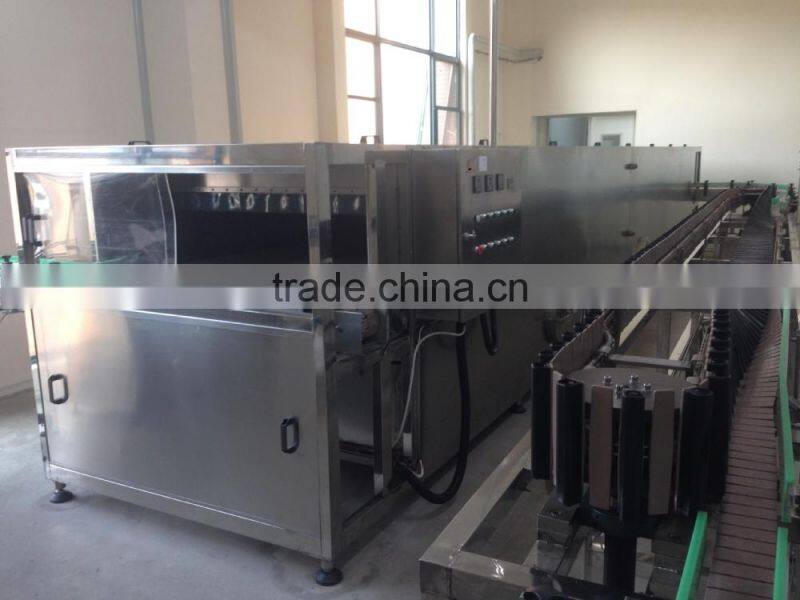

warmer machine

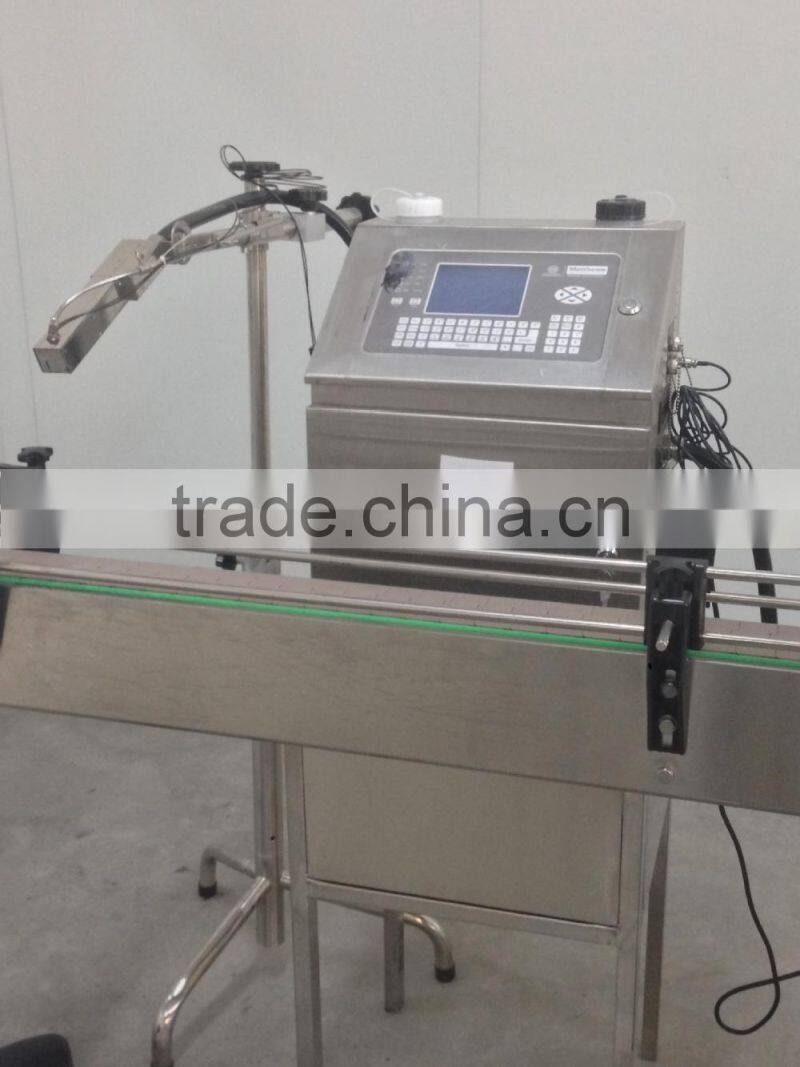

ink jet printer

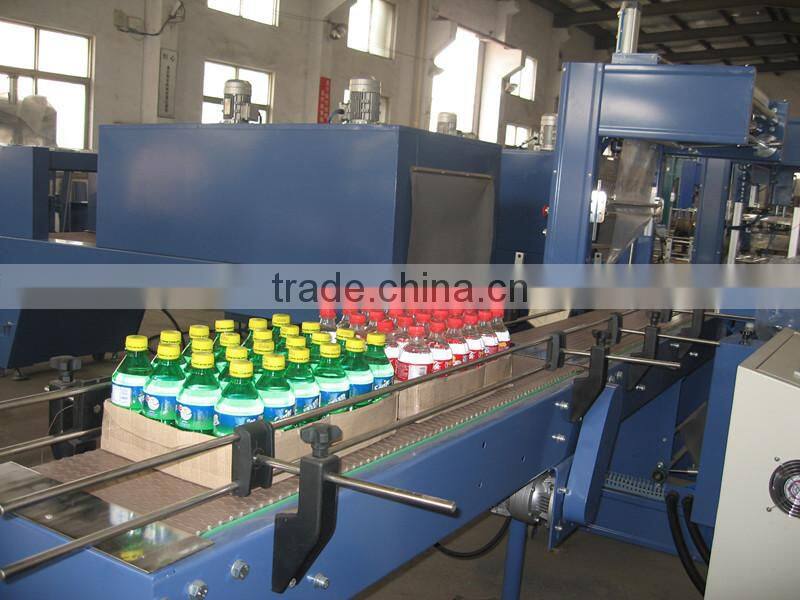

PE film packing
WATER TREATMENT:
1. stretch film packaging to save container space
2. standard wooden case to protect machine's important part.
Our Service:
1. one year gurantee, free charge for spare parts in warranty.
2. engineer available to service overseas.
3. good quality competitive price. ISO9001:2008 and BV certificate
Company Information
Company Introduction
Zhangjiagang Jiazhou Machinery Co.,Ltd is a manufacturer in beverage machine field for about 15 years. She has her own factory which is founded in year of 1998. Her sale company Zhangjiagang Jiazhou Machinery Company Limited is set up in 2005. Jiazhou has entered into international trade in 2008, now is 7 years old on Alibaba.
Jiazhou has well cooperated with many clients in many countries and areas, such as Kenya, Nigeria, Malaysia, Vietnam, Bangladesh, Ghana, Madagascar, and Middle East Area. She also has popular market in China, received very good reputation.
Jiazhou shall make progress with clients and market. Her aim is to establish credibility and pursue specialized quality and service. Choose Jiazhou as business partner, you can get assured about the quality.
