5 Gallon water bottle filling machine/line/plant
5 gallon water bottle filling machinery-Characteristics
5 gallon water filling machine /line
5 gallon filling machine,automatic barrel filling machine,5 gallon filling line,barrel filling machine ,filling machine,filling equipment,filling and sealing machine

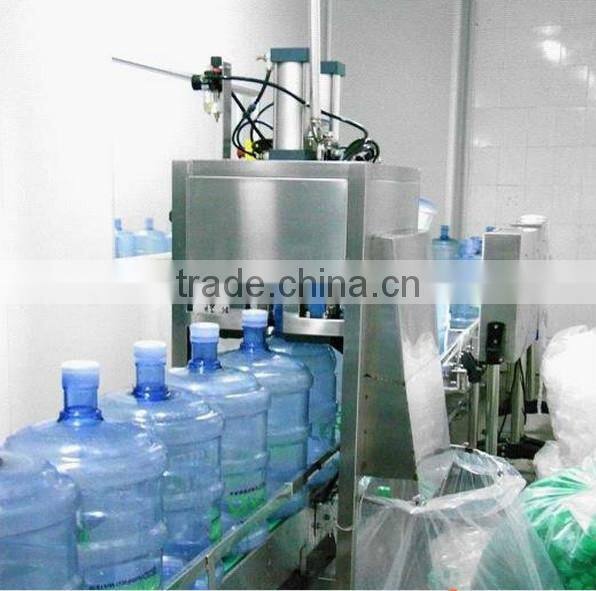

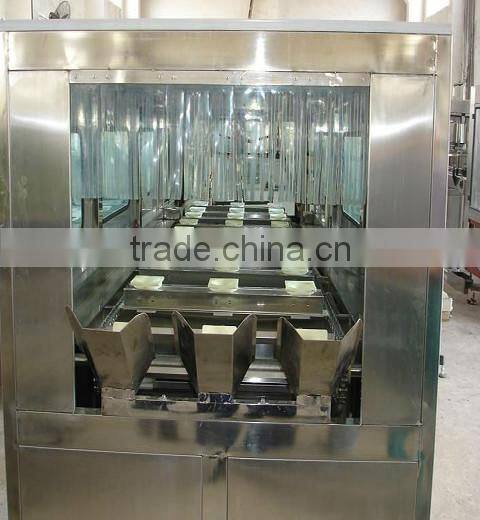

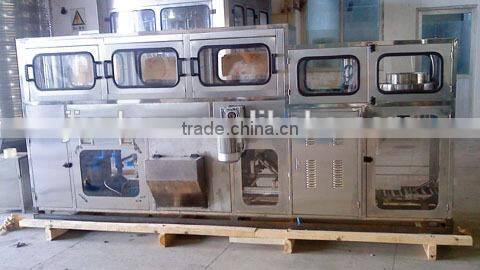

This filling line specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type.ltintegrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The sealer can seal bottle caps automatically.This line equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this line can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which integrates mechanism,electricity and pneumatics technologies together.
Main Technical parameters | |||||||
Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
Filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size(mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
Capacity(B/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
Motor power(Kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Outline dimension(mm) | 3790×650 | 3550×800 | 3550×1200 | 3650×1500 | 2200×1860 | 2560×2350 | 3100×2800 |
Weight(kg) | 800 | 2800 | 4000 | 5500 | 7500 | 9500 | 11800 |
Description:
-5gallon bottle ( 18.9Liter bottle, 3gallon and 6gallon is available) water line. (5 Gallon Barreled Drinking Filling Machine).
ZHANGJIAGANG JIAZHOU MACHINERY LTD

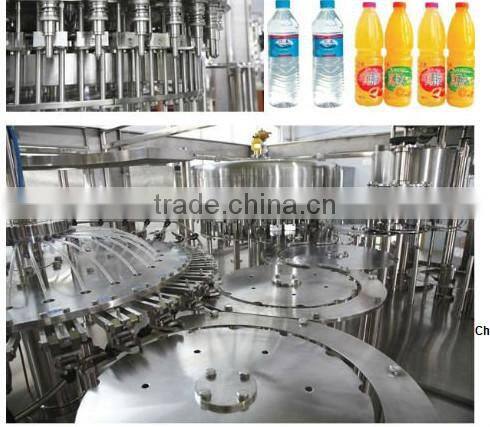

1Production Line / Full mineral pure water filling machine
2 complete production line juice
3 complete production line soda /carbonated filling machine
4 5-gallon water production line.
5 Beer / wine / sauce / oil sander

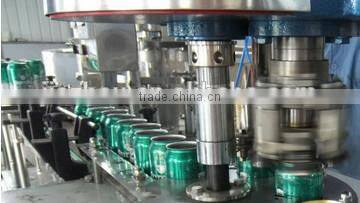

6 can filling machine
7 all kind of liquid filling machine packing machine

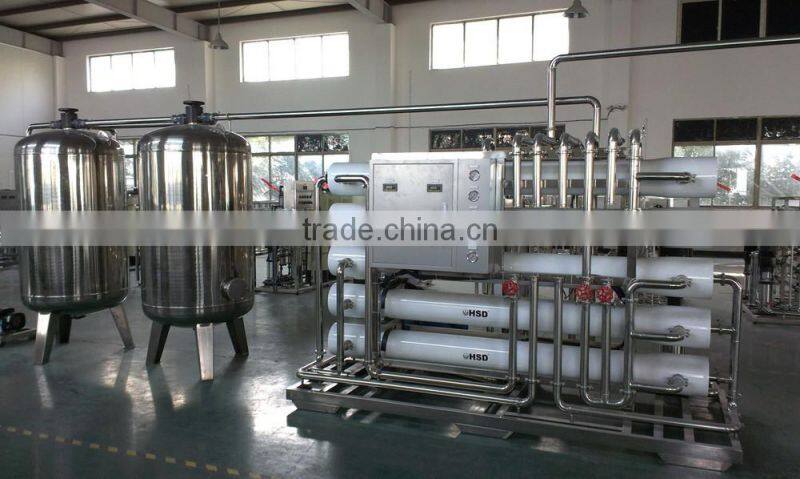

8 water treatment packing machine
