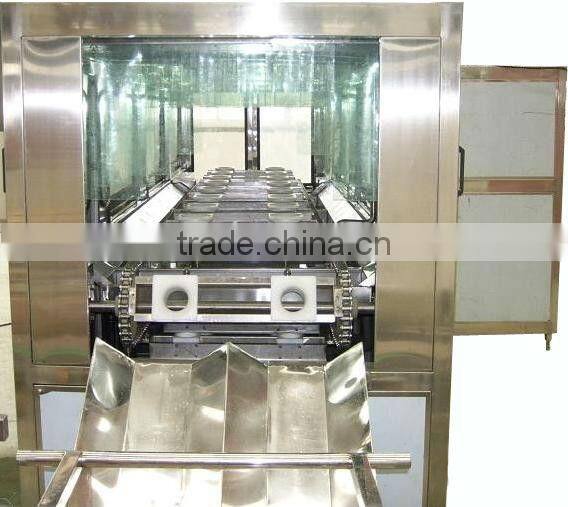

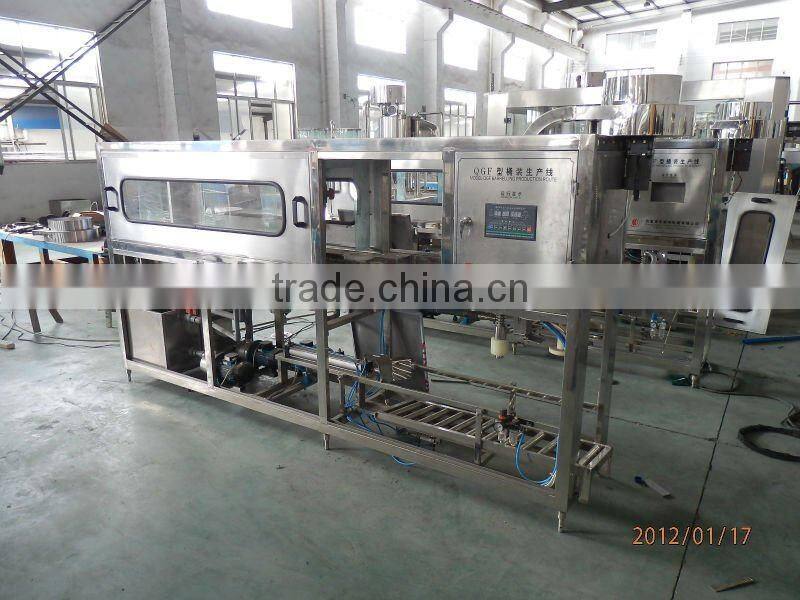

Automatic Production Line for 3 or 5 Gallons Barreled Water
This barrel filling line specially produces 5 gallons barreled drinking water. It integrates bottle washer,filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in barrel washer, washing solution can be used circularly. The sealer can seal barrel caps automatically.
This line equips with water spraying device to sterilize caps of barrels in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging. It i a new kind of barreled water auto-producing line, which integrates mechanism,electricity and pneumatic technologies together.
| Model | QGF-80 | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling Heads | 1 | 1 | 2 | 3 | 4 | 6 |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel Size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity | 80 | 150 | 300 | 450 | 600 | 900 |
| Gas Pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4- 0.6 | 0.4-0.6 | 0.4-0.6 |
| Gas Consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.2 |
| Moter Power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9 |
| Moter Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 500 | 700 | 1200 | 1600 | 2000 | 3500 |
| Overall Dimension | 2500*1100*1600 | 2800*1100*1300 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 | 4200*2300*1600 |
