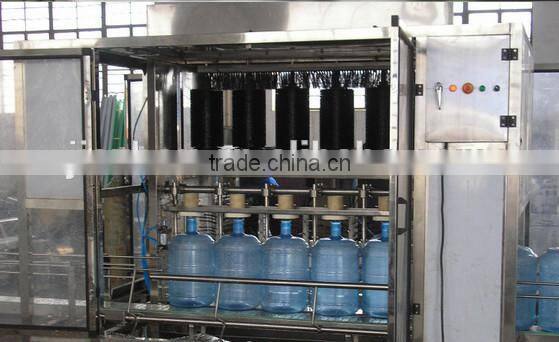

automatic 5 gallon water bottle filling machine
5 gallon water bottle filling machinery-Characteristics
This 5 gallon water bottle filling machinery specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type. 5 gallon water bottle filling machinery integrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The 5 gallon water bottle filling machinery sealer can seal bottle caps automatically.This 5 gallon water bottle filling machinery equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this 5 gallon water bottle filling machinery can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which 5 gallon water bottle filling machinery integrates mechanism,electricity and pneumatics technologies together.
5 gallon water bottle filling machinery-Specification
5 gallon water bottle filling machine Technical parameter:
| |||||||
Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
Filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size(mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
Capacity(B/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
Motor power(Kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Outline dimension(mm) | 3790×650 | 3550×800 | 3550×1200 | 3650×1500 | 2200×1860 | 2560×2350 | 3100×2800 |
Weight(kg) | 800 | 2800 | 4000 | 5500 | 7500 | 9500 | 11800 |
