Small Capacity 5 Gallon Barreled Production Line

Small Capacity 5 Gallon Barreled Production Line photo-1

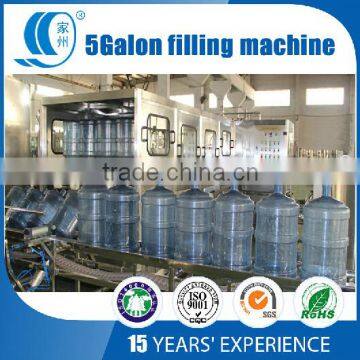

Small Capacity 5 Gallon Barreled Production Line photo-2

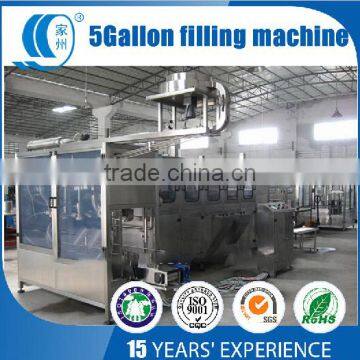

Small Capacity 5 Gallon Barreled Production Line photo-3

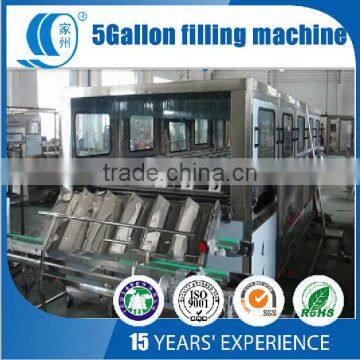

Small Capacity 5 Gallon Barreled Production Line photo-4
US$ 1,500 - 6,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, water, Drinking Water
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for 5 gallon barreled filling machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, water, Drinking Water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number QGF
Dimension(L*W*H) 3700*750*1500mm
Weight 1T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product descriptionSmall capacity 5 gallon barreled production line

QGF Series barrel machine is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideals for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, Strong for erosion proof ability, easy to washing. Mostly electric components are adopted SIEMENS, OMRON etc famous company. Electric component adopt import Air TAC famous brand product. The machine is advanced in construction, occupying small area, steady in performance, high in produce efficiency, high in automatization degree. Easy in operation, which integrates machinery, electricity and pneumatics technologies together into one unit full automatic barreling machine.

Product displaySmall capacity 5 gallon barreled production line



Small capacity 5 gallon barreled production line



Small capacity 5 gallon barreled production line



Small capacity 5 gallon barreled production line

Product ParametersSmall capacity 5 gallon barreled production line
ModelQGF-100QGF-300QGF-450QGF-600QGF-900QGF-1200QGF-2000
Number of filling heads123481216
Filling capacity18.918.918.918.918.918.918.9
Barrel size (mm)φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490
Production capacity (b/n)100-120200-240300-40060090012002000
Gas pressure (Mpa)0.4-0.60.4-0.60.60.60.60.60.6
Gas consumption (m3/min)0.370.60.61.22.234.5
Motor power(kw)1.753.224.88.58.58.58.5
Rated voltage (V)380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz
Overall dimension (mm)3790×6503550×8003550×12003650×15002200×18602560×23503100×2800
×1550×1800×1800×1800×2700×2750×2750
