Hot Sales 5 Gallon Bottling Line Price

Hot Sales 5 Gallon Bottling Line Price photo-1
Hot Sales 5 Gallon Bottling Line Price photo-2
Hot Sales 5 Gallon Bottling Line Price photo-3
Hot Sales 5 Gallon Bottling Line Price photo-4
US$ 5,000 - 10,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, WATER, Drinking Water
Packaging Type:
Barrel
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for 5 Gallon Bottling plant
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, WATER, Drinking Water
Packaging Type Barrel
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number QGF
Dimension(L*W*H) 3700*600*1550mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product descriptionHot sales 5 gallon bottling line price

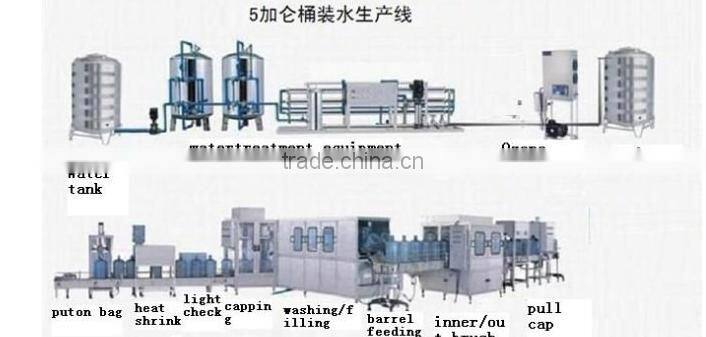

This filling line specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type.ltintegrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The sealer can seal bottle caps automatically.This line equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this line can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which integrates mechanism,electricity and pneumatics technologies together.
Product displayHot sales 5 gallon bottling line price

Hot sales 5 gallon bottling line price



Hot sales 5 gallon bottling line price



Hot sales 5 gallon bottling line price

Product ParametersHot sales 5 gallon bottling line price

Model

QGF-100QGF-300QGF-450QGF-600QGF-900QGF-1200QGF-2000

Filling heads

123481216

Volume(L)

18.918.918.918.918.918.918.9
Barrel size(mm)φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490
Capacity(B/n)100-120200-240300-40060090012002000
Gas pressure(mpa)0.4-0.60.4-0.60.60.60.60.60.6
Gas consumption
(m3/min)
0.370.60.61.22.234.5
Motor power(Kw)1.753.224.88.58.58.58.5
Rated voltage(V)380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz
Outline dimension(mm)3790×650
×1550
3550×800
×1800
2800×1100
×1800
3550×1200
×1800
3800×1100
×1800
3650×1500
×1800
3800×1100
×1800
2200×1860
×2700
2560×2350
×2750
3100×2800
×2750
Weight(kg)8002800400055007500950011800
