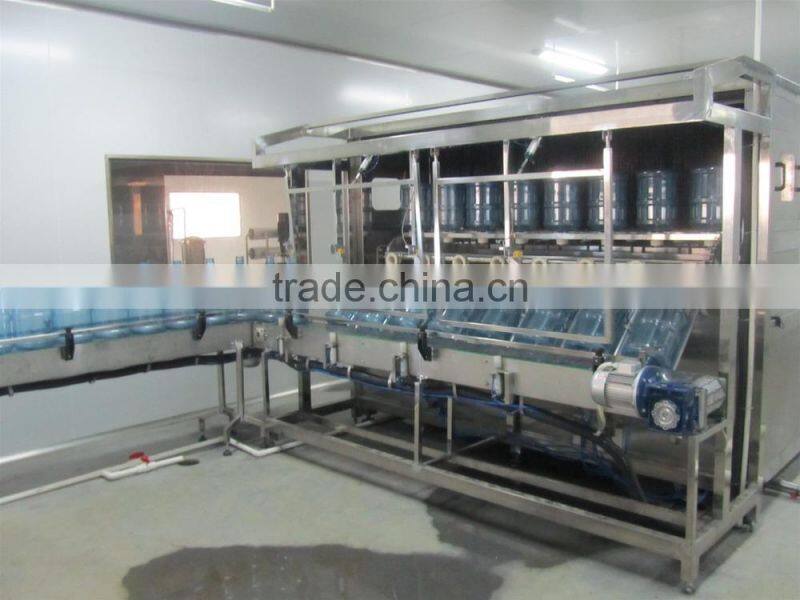

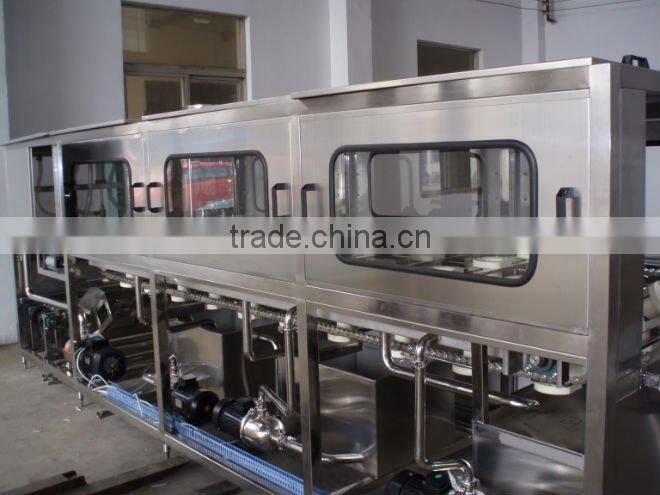

zhangjiagang new design 5 gallon water filling machine
- 30 Unit / Units per Month
- shanghai
- T/T Credit Card
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | JZ | Model Number: | QGF |
Certification: | ISO |
Product Description
Description
5 gallon water filling machine-Characteristics
This 5 gallon water filling machine specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type. 5 gallon water filling machineintegrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The 5 gallon water filling machine sealer can seal bottle caps automatically.This 5 gallon water filling machine equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this 5 gallon water filling machine can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which 5 gallon water filling machine integrates mechanism,electricity and pneumatics technologies together.
(1) This filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
technical parameter
Main Technical parameters | |||||||
Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
Filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size(mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
Capacity(B/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
Motor power(Kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Outline dimension(mm) | 3790×650 ×1550 | 3550×800 ×1800 2800×1100 ×1800 | 3550×1200 ×1800 3800×1100 ×1800 | 3650×1500 ×1800 3800×1100 ×1800 | 2200×1860 ×2700 | 2560×2350 ×2750 | 3100×2800 ×2750 |
