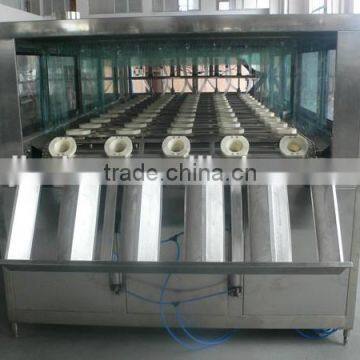

(100BPH) type 5 gallons bottle filling machine
TG Series Barreled Production Line is composed of bottle washing, filling and sealing into one body especially for the production of drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water. The whole line is made of superior stainless steel, anticorrosive and easy to clean. Siemens electric components are adopted as main components. The world famous product of AirTAC and Omron are introduced in the air circuit systems. The machine is compactly conformed to small occupation of land and high efficiency and reliable and stable quality and high automation. Only two operators are needed for a line, which is wholly automatic barreled equipment with motor, electric unit and air three in one.
Main technical Parameter:
| Model | TG-100 |
| Filling heads | 1 |
| Volume(L) | 18.9 |
| Barrel size(mm) | 270×490 |
| Capacity(b/n) | 100 |
| Gas pressure(mpa) | 0.4-0.6 |
| Gas consumption(m3/min) | 0.37 |
| Moto power(kw) | 1.38 |
| Rated voltage(v) | 380V/50HZ |
| Weight(kg) | 680 |
