Good Quality Best 5 Gallon Water Barrel Plant

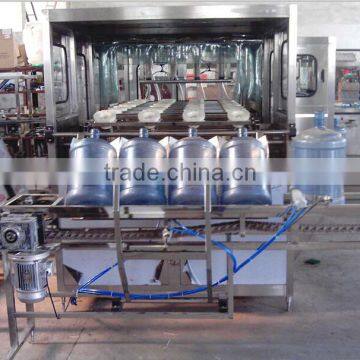

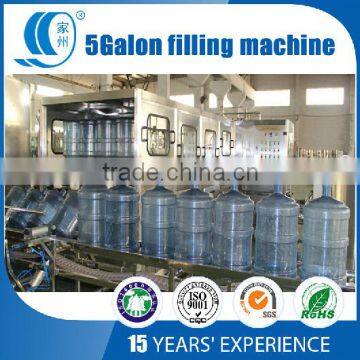

Good Quality Best 5 Gallon Water Barrel Plant photo-1
Good Quality Best 5 Gallon Water Barrel Plant photo-2
Good Quality Best 5 Gallon Water Barrel Plant photo-3
Good Quality Best 5 Gallon Water Barrel Plant photo-4
US$ 3,000 - 10,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, WATER, Drinking Water
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, WATER, Drinking Water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number QGF
Dimension(L*W*H) 4500*800*1800mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product descriptionGood quality best 5 gallon Water Barrel plant

Introduction:

This filling line specially for 3-5gallons barreled drink water,with type QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200,It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together

Product displayGood quality best 5 gallon Water Barrel plant

Good quality best 5 gallon Water Barrel plant



Good quality best 5 gallon Water Barrel plant



Good quality best 5 gallon Water Barrel plant

Product ParametersGood quality best 5 gallon Water Barrel plant
ModelQGF-100QGF-300QGF-450QGF-600QGF-900
Filling heads12346
Volume(L)18.918.918.918.918.9
Capacity(b/h)100300450600900
Gas consumption(m3/min)0.370.60.811.5
Moto power (kw)1.383.85.67.59.75
Weight(kg)6801500210030003500
Size(W*L*H)0.5*4.0*1.50.9*4.0*1.51.3*4.0*1.51.8*4.0*1.52.4*4.0*1.5
