5 gallon mineral water filling machine/pure water bottling machine/water filling production line

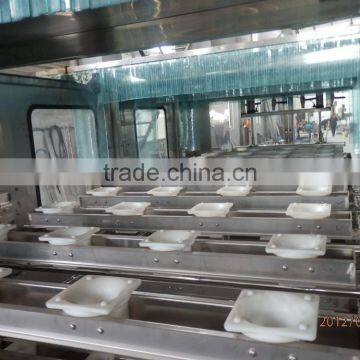

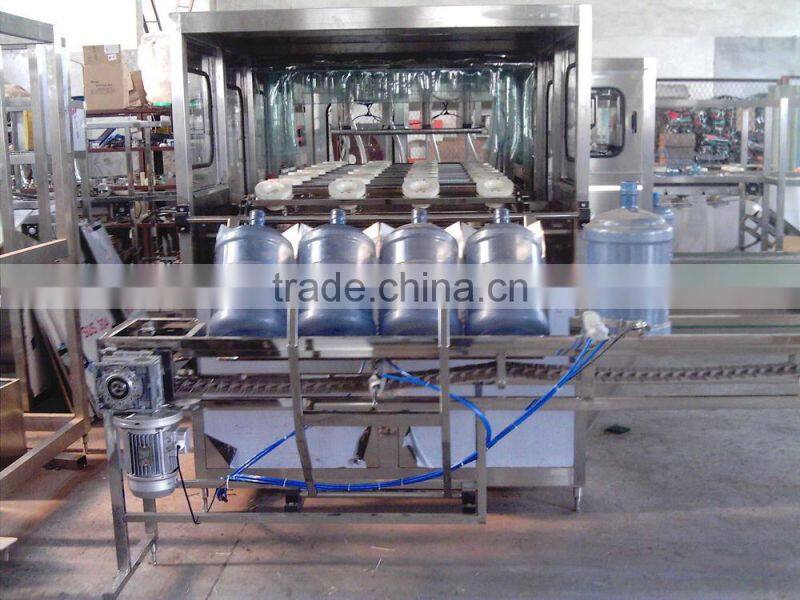

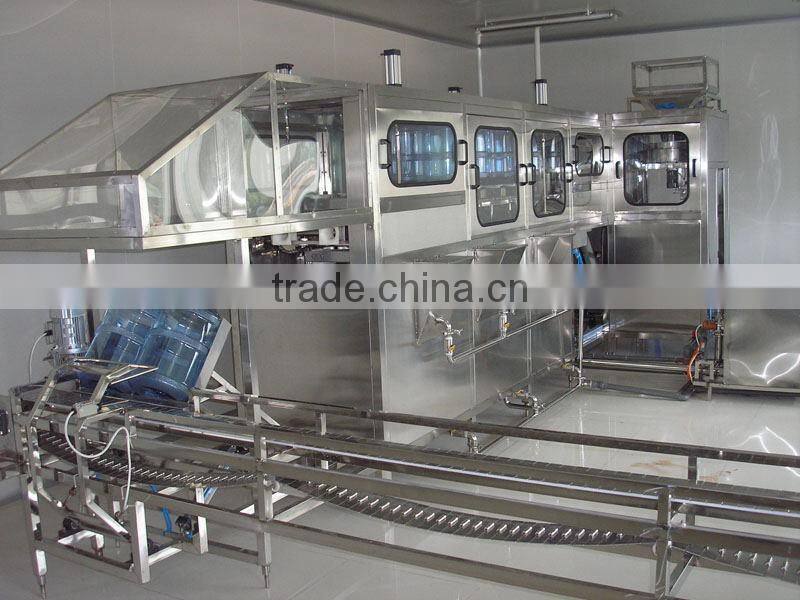

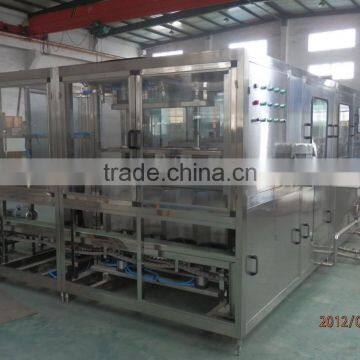

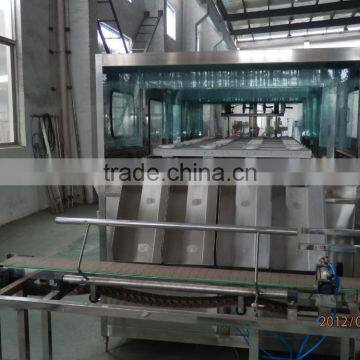

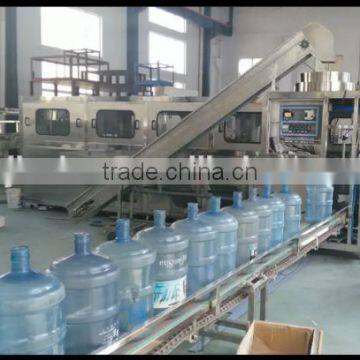

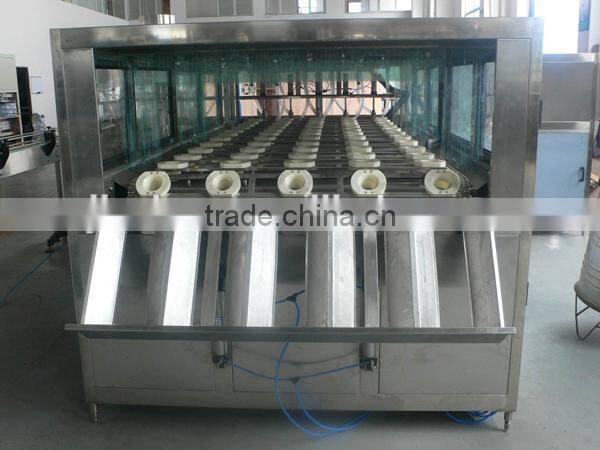

This Automatic 20 liter bottled water filling machine specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type. The automatic20 liter bottled water filling machinery integrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The automatic20 liter bottled water filling machinery sealer can seal bottle caps automatically.This automatic 20 liter bottled water filling machinery equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this automatic 20 liter bottled water filling machinery can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which automatic20 liter bottled water filling machinery integrates mechanism,electricity and pneumatics technologies together.
Automatic 20 Liter Bottled Water Filling Machine -Specification
Technical parameter:
| |||||||
Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
Filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size(mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
Capacity(B/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
Motor power(Kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Outline dimension(mm) | 3790×650 ×1550 | 3550×800 ×1800 2800×1100 ×1800 | 3550×1200 ×1800 3800×1100 ×1800 | 3650×1500 ×1800 3800×1100 ×1800 | 2200×1860 ×2700 | 2560×2350 ×2750 | 3100×2800 ×2750 |
Weight(kg) | 800 | 2800 | 4000 | 5500 | 7500 | 9500 | 11800 |
