Small Bottle Industrial Water Filling Plant

Small Bottle Industrial Water Filling Plant photo-1

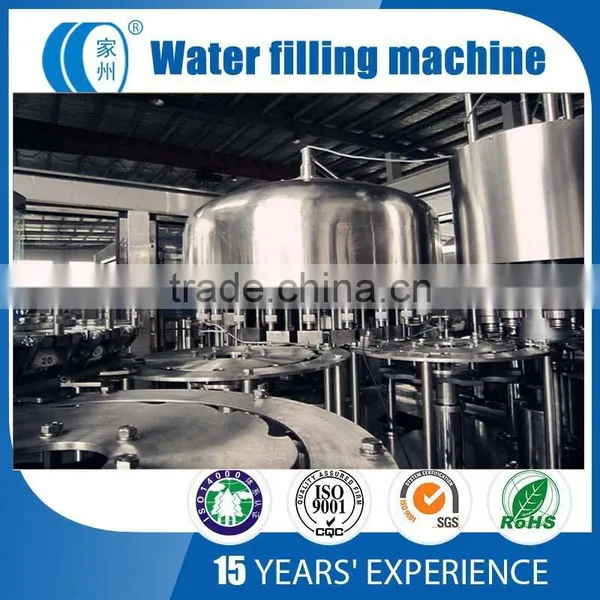

Small Bottle Industrial Water Filling Plant photo-2

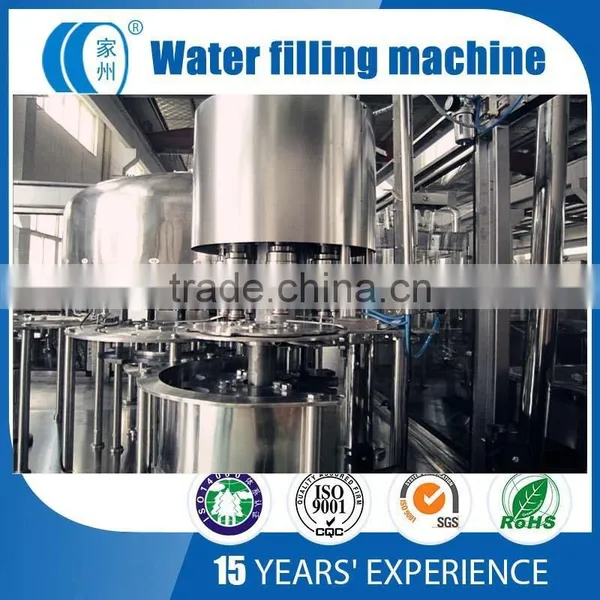

Small Bottle Industrial Water Filling Plant photo-3

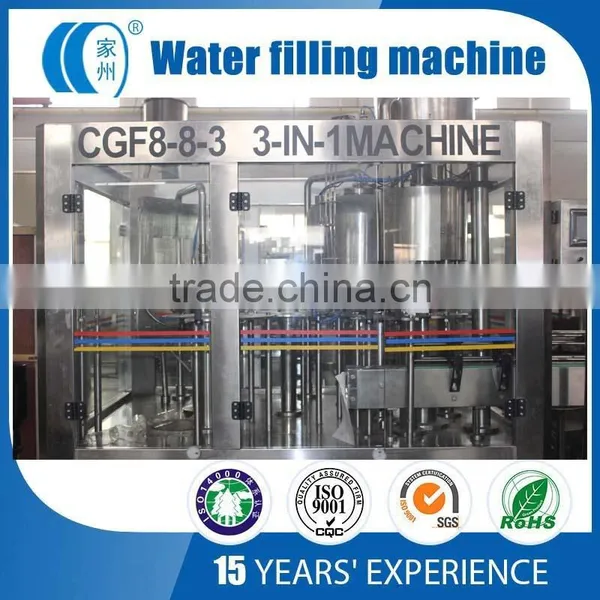

Small Bottle Industrial Water Filling Plant photo-4

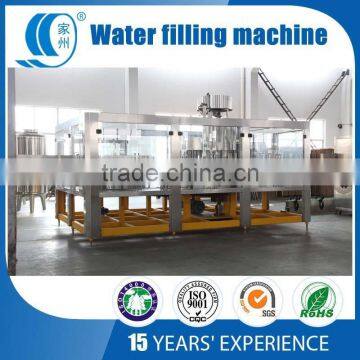

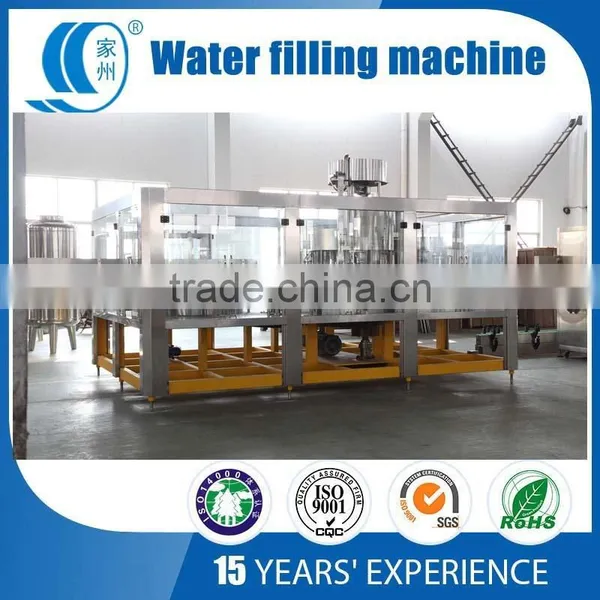

Small Bottle Industrial Water Filling Plant photo-5
US$ 2,000 - 8,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Water, Drinking Water
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for industrial water filling plant
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Water, Drinking Water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number CGF
Dimension(L*W*H) 2800*2500*2900mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Small bottle industrial water filling plant

Main features of the equipment:

1)Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.



2)Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.



3)The cylinder drives the valve, correct and reliable, high speed flow rate, high precision filling valve, CIP loop.



4)Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.



5)Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Product display Small bottle industrial water filling plant

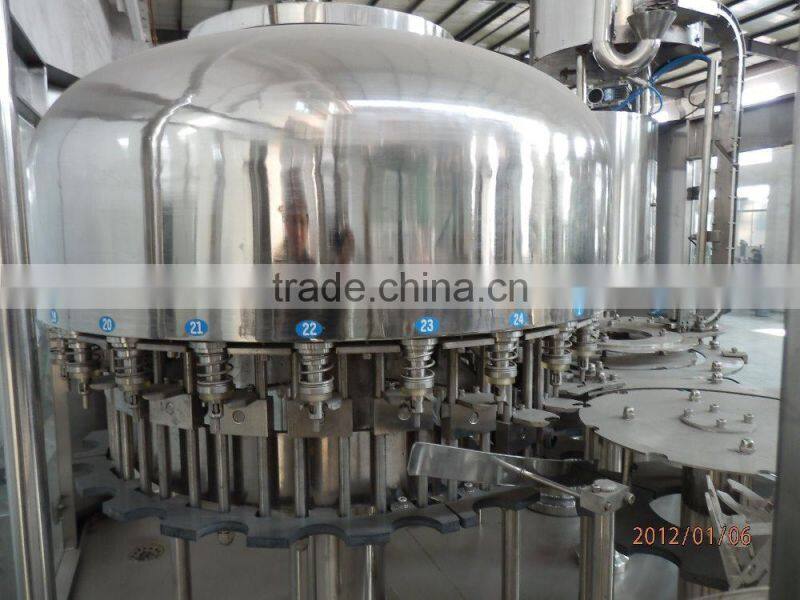

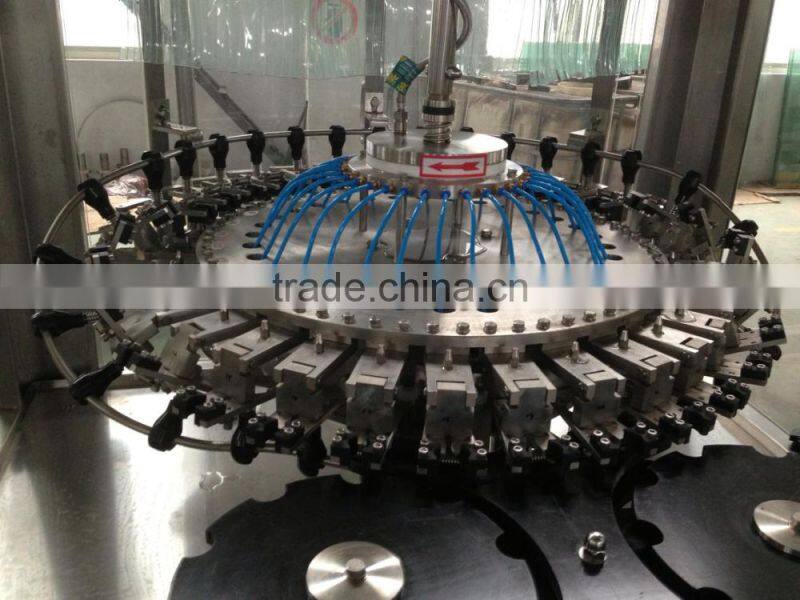

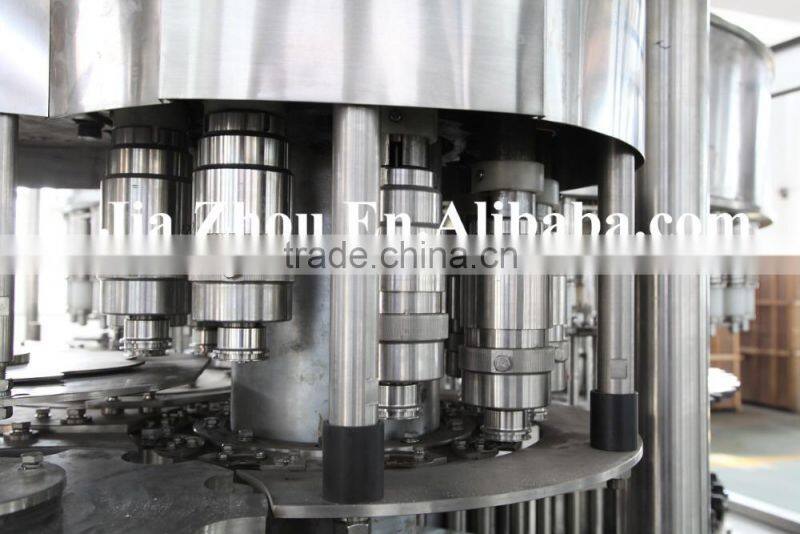

Small bottle industrial water filling plant



Small bottle industrial water filling plant



Small bottle industrial water filling plant

Product Parameters Small bottle industrial water filling plant
Model CGF
18186
CGF
24248
CGF
323212
CGF
404015
CGF
505018
CGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300
2800×2100
×2300
4200×2300
×2300
5000×2800
×2400
5900×3100
×2400
6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Small bottle industrial water filling plant
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
Small bottle industrial water filling plant
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Small bottle industrial water filling plant
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
Small bottle industrial water filling plant

C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
Small bottle industrial water filling plant
