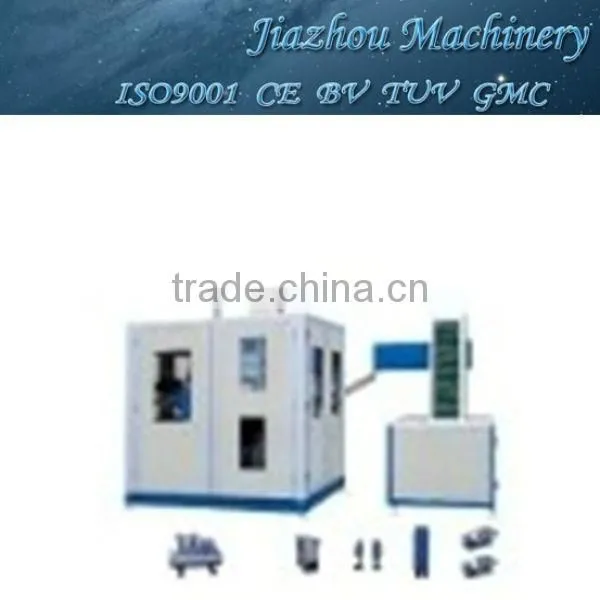

HY-3000 Full Automatic Beverage Bottle Mould Blowing Machine
HY-3000 strech mould blowing machine is suitable for producing PET/PC/PP/PE,plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle,mineral water,pesticide bottle,oil bottle,cosmetics,wide-mouth bottle and hot fill bottle etc..Feeding system carries the preforms by robot automatically.
Infrared oven heater adopts the quartz lamp to heat the PET tube.
Fully automatic process with low investment,high efficiency,quick and safe operation,easy for trouble-shooting,maintenance and other benefits.
Type |
Item |
Unit |
Technical Data |
|
2-cavity |
4-cavity |
|||
|
Container |
Product material |
|
PET/PP/PE/PC |
PET/PP/PE/PC |
Container volume |
L |
0.05-2.5,3-6 (1-cavity) |
0.05-2.5 3-6 (2-cavity) |
|
Theoretical output |
Pcs/h |
6L:450/2L:1200/0.5L:1500/0.1L:2000 |
6L:750/2L:1900/0.5L:2500/0.1L:3000 |
|
Preform length |
mm |
50-220 |
50-220 |
|
Maximum length of bottle |
mm |
350 |
350 |
|
Preform inner diameter |
mm |
15-60/60-180 (1-cavity) |
15-60/60-180 (2-cavity) |
|
Bottle diameter |
mm |
35-110/110-230 (1-cavity) |
35-110/110-230 (2-cavity) |
|
|
Moulding |
Maximum dimension(L*W) |
mm |
350*450 |
420*500 |
Thickness |
mm |
180-250 |
180-250 |
|
Clamping force |
KN |
150 |
280 |
|
Mould opening stroke(adjustable) |
mm |
80-250 |
80-250 |
|
Air Compressor |
High pressure compressor |
m³/MPa kw |
≥0.6/3.0*1set/11 |
≥0.6/3.0*2set/11 |
Low pressure compressor |
m³/MPa kw |
≥1.25/1.0/7.5 |
≥1.63/1.0/7.5 |
|
Dryer |
Air dryer |
m³/MPa kw |
1.0/3.0 |
1.0/3.0 |
Main machine electricity |
Power |
KW |
15.5 |
25.5 |
Voltage/Frequency |
V/HZ |
380-240-110/50-60(3-phase) |
||
|
Machine size and weight |
Main machine(L*W*H) |
M |
2.00*1.40*2.00 |
2.00*1.97.2.07 |
Main machine weight |
T |
2.0 |
3.5 |
|
Conveyer(L*W*H) |
M |
2.00*1.05*2.18 |
2.00*1.05*2.18 |
|
Conveyer weight |
T |
0.4 |
0.4 |
|
High pressure compressor(L*W*H) |
M |
1.90*0.75*1.50 |
1.90*0.75*1.50*2sets |
|
Low pressure compressor(L*W*H) |
M |
1.85*0.70*1.50 |
1.85*0.70*1.50 |
|
High pressure gas tank(D*H) |
M MPa |
0.70*2.55/3 |
0.70*2.55/3 |
|
Air dryer(L*W*H) |
M |
0.85*0.50*0.95 |
0.85*0.50*0.95 |
|
Air filters |
kg |
10*2pcs |
10*2pcs |
|
Moulding lifting rack |
kg |
15 |
15 |
|
Safty |
Auto-emergency alarm |
Safety interlocking device |
||
