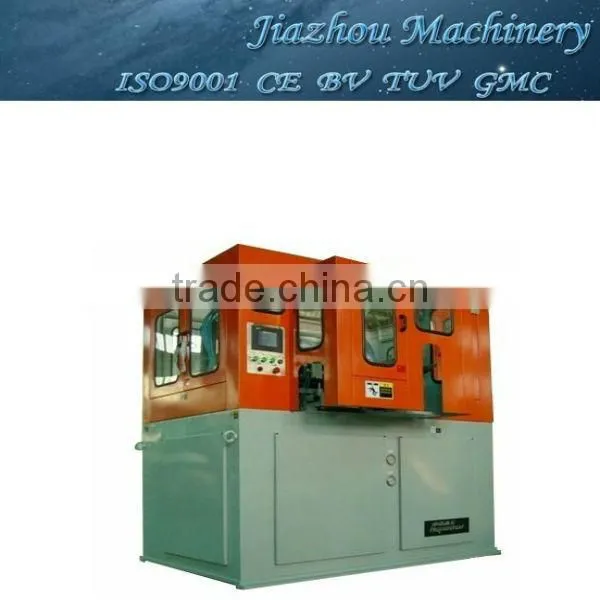

Automatic Bottle Blowing Machine
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JIAZHOU | |
| Model Number | HY-4000 | Plastic Processed | Other, PET,PE,PP,PVC | |
| Application | Bottle | Automatic | Yes | |
| Blow Moulding Type | Other, Stretch Blow Machine |
Product Description
blowing machine
High intelligent:This machine can be controlled through touch screen and running status is shown on it.
High quality:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
High Speed:35000 B/h.
No Contamination:Closed production zone,good selflubrication system avoid contamination.
High Transparency:easy maintenance,absolute safety.
TYPE | Item | Unit | HY-4000 |
4-CAVITY | |||
Container | Product material |
| PET/PE/PC/PP |
Container volume | L | 0.05-2.5 | |
Theoretical output | Pcs/hr | ≤0.75L/4000 | |
Perform length | mm | 50-200 | |
Max. length of bottle | mm | 320 | |
Preform inner diameter | mm | Φ15-60(4-cavity) | |
Bottle diameter | mm | Φ35-110(4-cavity) | |
Molding | Max. mould plate dimension(L*W*H) | mm | 420×640 |
Max. mould thickness | mm | 220 | |
Clamping force | KN | 280 | |
Mould opening stroke(Adjustable) | mm | 150 | |
Air Compressor | High pressure compressor | M3/Mpa/Kw | ≥1.5/3.0×2set/11KW |
Low pressure compressor | M3/Mpa/Kw | ≥1.6/1.0×1set/7.5KW | |
Dryer | Air dryer | M3/Mpa | 3.0/3.0 |
Main Machine Electricity | Power | KW | 25 |
Voltage/Frequency | V/Hz | 380-220/50-60Hz | |
Machine Size And Weight | Main machine(L×W×H) | M | 3.0×1.8×1.9 |
Main machine weight | T | 4.2 | |
Conveyer(L×W×H) | M | 1.4×1.1×1.85 | |
Conveyer weight | T | 0.3 | |
High pressure compressor(L×W×H) | M | 1.90×0.75×1.50×2sets | |
Low pressure compressor(L×W×H) | M | 1.85×0.70×1.50 | |
High pressure compressor(L×W×H) | M/Mpa | Φ0.70×2.55×/3.0 | |
Air dryer(L×W×H) | M | 0.85×0.50×0.95 | |
Air filters | Kg | 10×2pcs | |
Safety | Auto-emergency alarm | ||
