Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > HY-99A Semi-Automatic Bottle Blowing Machine

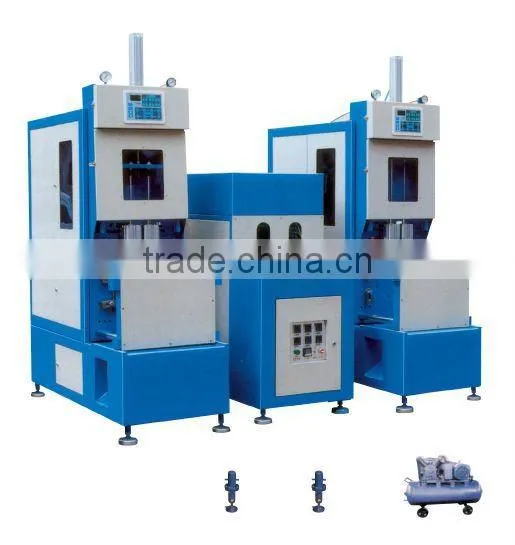

HY-99A Semi-Automatic Bottle Blowing Machine

Name: HY-99A Semi-Automatic Bottle Blowing Machine
Brand: JIAZHOU
SKU: 140469906
Availability: InStock

HY-99A Semi-Automatic Bottle Blowing Machine thumbnail-1

HY-99A Semi-Automatic Bottle Blowing Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

JIAZHOU

Model Number:

JZS-880

Contact Supplier Request Quote Chat Now

Zhangjiagang Jiazhou Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name JIAZHOU

Model Number JZS-880

Automatic Yes

Plastic Processed Other, PET/PP/PE

Blow Moulding Type Stretch Blow Moulding

Condition New

Application Bottle

bottle blowing machine

JZS-880 Semi-automatic bottle blowing machine can blow plastic bottles made of PET,PP,PE and PC.One drying tunnel is matched with two blowers,which is small in size,efficient and energy-saving and fit to blow plastic bottles of various raw material in a big quantity.

Type	Item	Unit	Technical Data
Container	Product material		PET/PC/PE
	Container volume	L	0.1-2.5(2-cavity) 3-6(1-cavity)
	Theoretical output	Pcs/h	0.1-1.5L:1700 3-6:800
	Maximum bottle height	mm	360
	Maximum bottle diameter	mm	180
Moulding	Maximum mould plate dimension(L*H)	mm	420*500
	Maximum mould thickness	mm	250
	Clamping force	KN	150
	Mould opening stroke	mm	240
Air compressor	Air compressor	M³/MPa KW	≥1.0/3.0 11
Air compressor	Air pressure for blowing	M³/MPa	30
Main machine electricity	Power	KW	6
Main machine electricity	Voltage/Frequency	KW V/HZ	380-240-110/50-60(3-phase)
Machine size and weight	Main machine	M	1.530.622.00
	Main machine weight	T	0.6
	Heater(LWH)	M	1.800.51.60
	Heater weight	T	0.3
	High pressure compressor(LWH)	M	1.900.751.50
	Air filters	kg	10*2pcs
Safety	Auto-emergency alarm	Safety interlocking device
