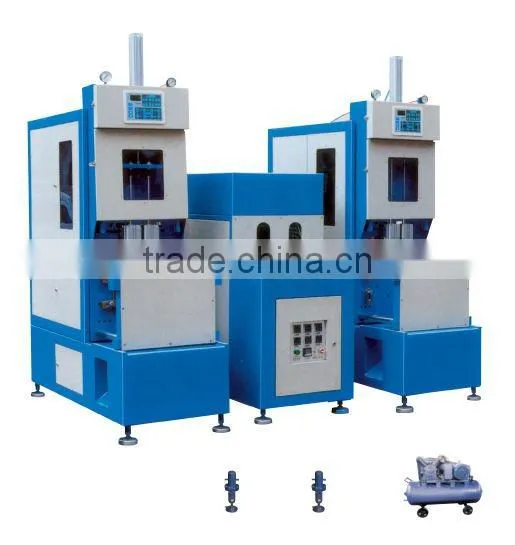

Semi-Automatic Bottle -Blowing Moulding Machine

Semi-Automatic Bottle -Blowing Moulding Machine thumbnail-1
Semi-Automatic Bottle -Blowing Moulding Machine photo-1
US$ 5,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Application:
Other, Bottle, Bottle
Plastic Processed:
Other, PET, PET/PP/PE/PC
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Other, Bottle, Bottle
Plastic Processed Other, PET, PET/PP/PE/PC
Blow Moulding Type Other, Stretch Blow Moulding, Injection Blow Moulding
Automatic Other, Yes, Yes
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number HY-99A

Semi-Automatic Blow Moulding Machine:

Type

Item

Unit

Technical Data

Container

Product material



PET/PC/PE

Container volume

L

0.1-2.5(2-cavity)

3-6(1-cavity)

Theoretical output

Pcs/h

0.1-1.5L:1700

3-6:800

Maximum bottle height

mm

360

Maximum bottle diameter

mm

180

Moulding

Maximum mould plate dimension(L*H)

mm

420*500

Maximum mould thickness

mm

250

Clamping force

KN

150

Mould opening stroke

mm

240

Air compressor

Air compressor

M³/MPa KW

≥1.0/3.0 11

Air pressure for blowing

M³/MPa

30

Main machine electricity

Power

KW

6

Voltage/Frequency

KW V/HZ

380-240-110/50-60(3-phase)

Machine size and weight

Main machine

M

1.53*0.62*2.00

Main machine weight

T

0.6

Heater(L*W*H)

M

1.80*0.5*1.60

Heater weight

T

0.3

High pressure compressor(L*W*H)

M

1.90*0.75*1.50

Air filters

kg

10*2pcs

Safety

Auto-emergency alarm

Safety interlocking device

Semi-Automatic Bottle -Blowing Moulding Machine

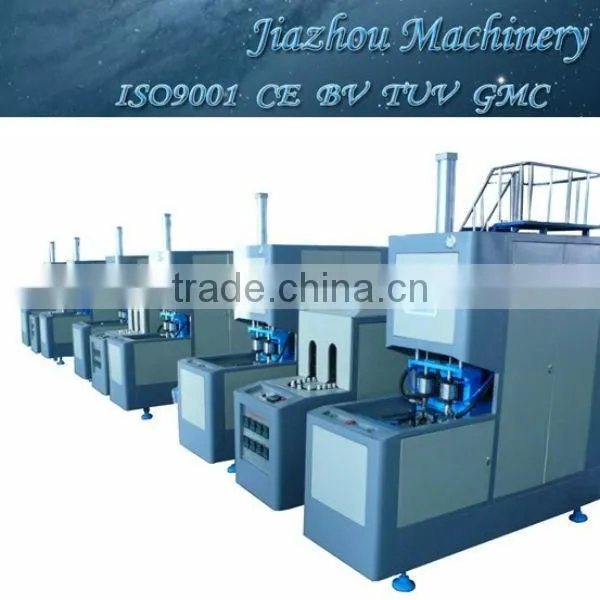

FACTORY AND WORKSHOP

Semi-Automatic Bottle -Blowing Moulding MachineSemi-Automatic Bottle -Blowing Moulding MachineSemi-Automatic Bottle -Blowing Moulding MachineSemi-Automatic Bottle -Blowing Moulding Machine

OFFICE

Semi-Automatic Bottle -Blowing Moulding MachineSemi-Automatic Bottle -Blowing Moulding Machine

CERTIFICATES

Semi-Automatic Bottle -Blowing Moulding Machine

TRANSPORT PACKING

Semi-Automatic Bottle -Blowing Moulding MachineSemi-Automatic Bottle -Blowing Moulding MachineSemi-Automatic Bottle -Blowing Moulding MachineSemi-Automatic Bottle -Blowing Moulding Machine
