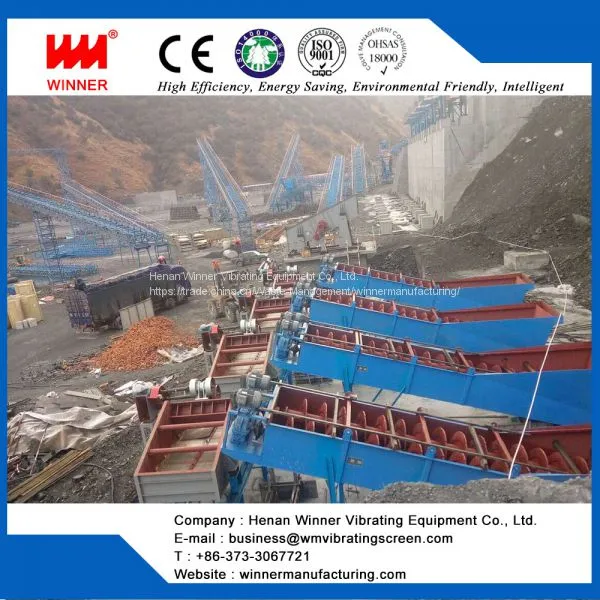

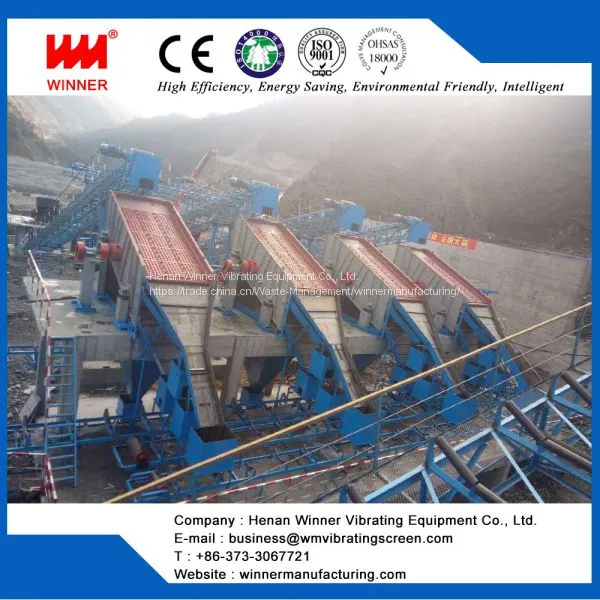

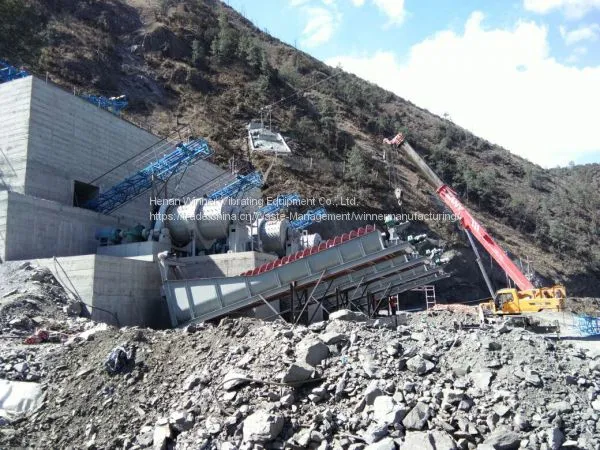

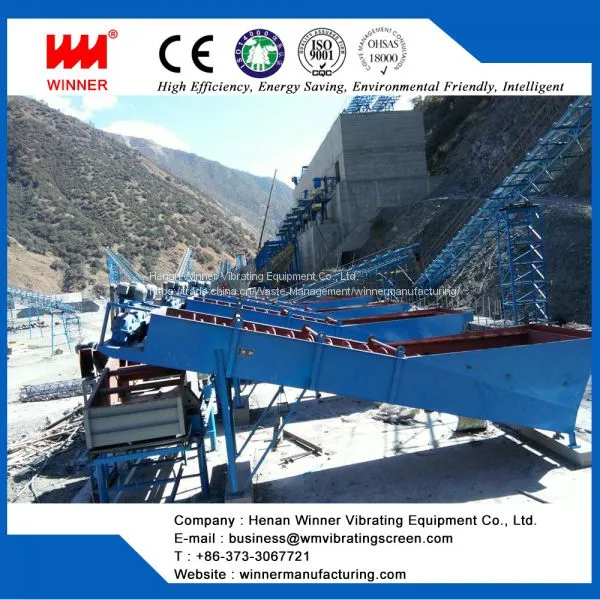

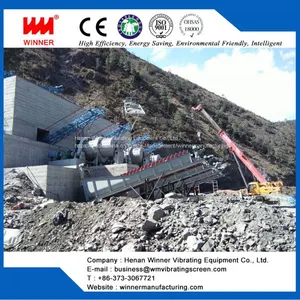

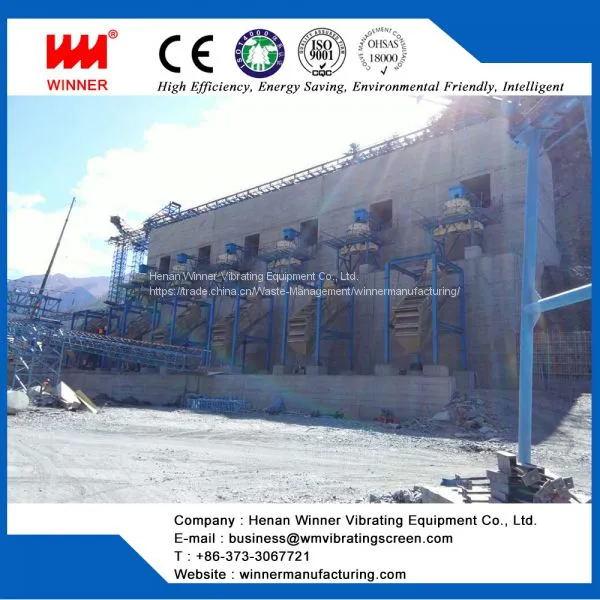

Aggregate and sand making production line from China
Applications of Aggregate and sand making production line from China:
1.Aggregates with grain size larger than 5mm are called coarse aggregates, and there are two kinds of gravel and pebble commonly used. Particle size grading: 5-10,10-20,20-31.5.
2.The aggregate with the grain size below 5mm is called fine aggregate. According to theproduction of sand is divided into natural sand and machine-made sand.
3.Aggregates as the main raw material in concrete because of its good hardness and stability of chemical properties ,It is play a role of the skeleton and support in the building. Widely used in housing, roads, roads, railways, engineering and other fields.
4. Aggregate and sand making production line from China can be used for hard limestone, granite, basalt, river gravel, smelting slag and other materials, aggregate and artificial sand making operations,for Hydropower Station, building materials, highways, urban construction and other industries.
5.According to different process requirements, various types of equipment combined to meet customer's different process requirements.
Brief introduction of Aggregate and sand making production line from China:
1.Aggregate and sand making production line from China can be simply summarized as crushing and sorting, mainly from the conveyor, feeding, crushing, screening, sand and other aspects of aggregate production line introduced aggregate.
2.The choice of crushing equipment depends on the characteristics of ore raw materials, the local market demand for gravel products and production capacity of the production line.

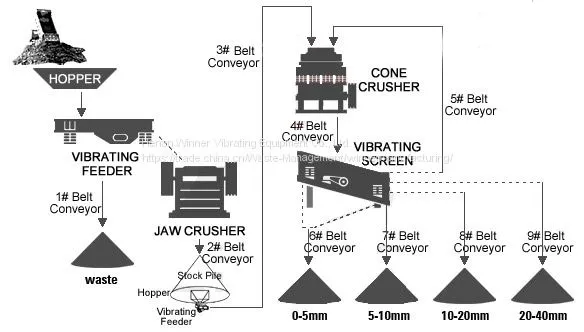

3. Aggregate and sand making production line from China production process is as follows:
a.Large stone by the silo by the vibrating feeder evenly sent to the jaw crusher for coarse crushing, coarse crushed stone by the conveyor belt to the impact crusher for further crushing.
b.Crushed stone by the belt conveyor Sent to the vibrating screen for screening, screening out several different specifications of the stone, meet the requirements of the size of the stone conveyor belt conveyor, the finished product sent to finished heap.
c.Do not meet the requirements of stone by the conveyor belt back to the impact crusher to break again to form closed-loop multiple cycles.
d.Finished particle size can be combined in accordance with the needs of users and grading, to protect the environment, can be equipped with auxiliary dust removal equipment.
WINNER GROUP Aggregate and sand making production line from China Main Equipment Model/Specification/Quantity:
Maximum Feeding Size(mm) |
Capacity(t/h) |
Vibrating Feeder |
Jaw Crusher |
Fine Crushing Equipment (Impact Crusher) |
Vibrating Screen |
Conveyor Equipment(m) |
Installed Power(KW) |
|
340 |
30 |
GZD2511(3kw) |
PE400×600(30kw) |
PF1007(45kw) |
3YZ1236(15kw) |
60-90(20kw) |
120 |
|
340 |
50 |
GZD3117(10kw) |
PE400×600(30kw) |
PF1007(45kw) |
3YZ1545(22kw) |
100-130(30kw) |
140 |
|
420 |
80 |
GZD3617(10kw) |
PE500×750(55kw) |
PF1010(75kw) |
3YZ1548(22kw) |
130-160(30kw) |
200 |
|
480 |
100 |
GZD4321(13kw) |
PE600×900(75kw) |
PF1210(130kw) |
3YZ1548(22kw) |
140-180(40kw) |
280 |
|
560 |
150 |
GZD4321(13kw) |
PE750×1060(90kw) |
PF1210(130kw) |
3YZ1845(22kw) |
200-240(50kw) |
300 |
|
630 |
200 |
GZD4321(13kw) |
PE900×1060(110kw) |
PFB1212(140kw) |
3YZ2050(30kw) |
200(40kw) |
350 |
|
630 |
250 |
GZD5027(17kw) |
PE900×1060(110kw) |
PFB1214(180kw) |
3YZ2050(30kw) |
200(40kw) |
400 |
|
630 |
300 |
GZD5027(17kw) |
PE900×1200(110kw) |
PFB1214(180kw) |
3YZ2160(30kw) |
250(50kw) |
450 |
|
700 |
350 |
GZD5027(17kw) |
PE1000×1200(132kw) |
PFB1315(250kw) |
3YZ2160(30kw) |
250(50kw) |
500 |
|
700 |
450 |
GZD6223(28kw) |
PE1000×1200(132kw) |
PFB1214/2(300kw) |
3YZ2145/2(60kw) |
350(60kw) |
600 |
