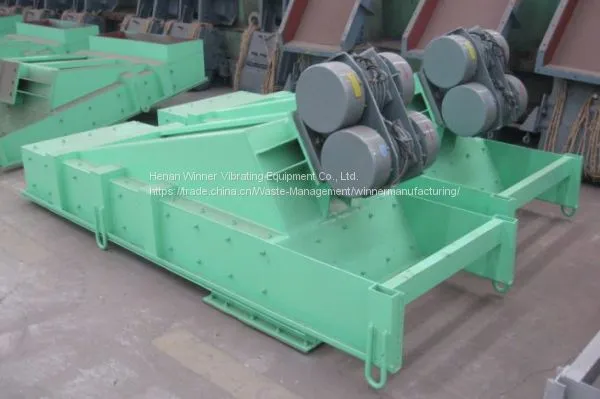

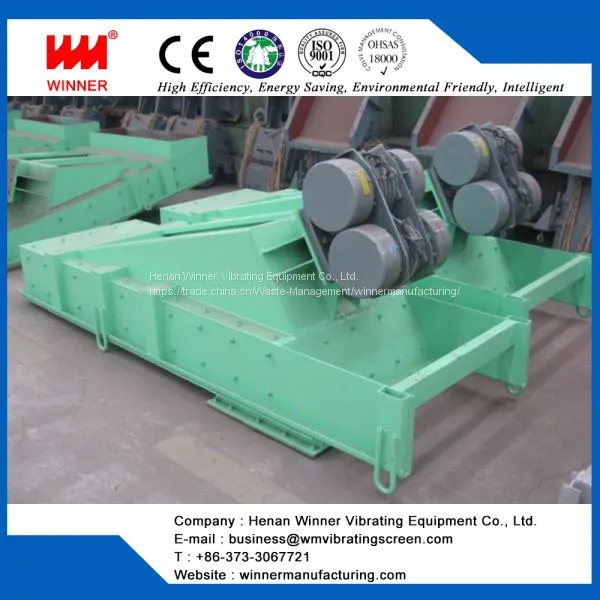

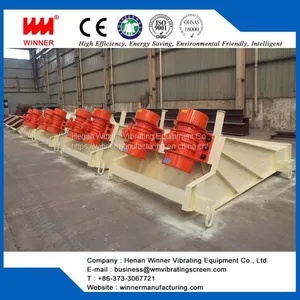

High efficiency ZG series vibrating feeder for mining and ore
Introduction Overview of High efficiency ZG series vibrating feeder for mining and ore：
High efficiency ZG series vibrating feeder for mining and ore is a new energy-saving universal feeding equipment. The machine adopts the new type vibration motor as vibration source, often matching with vibrating conveyor, vibration sieve, bucket elevator, crushing and so on.
Application of High efficiency ZG series vibrating feeder for mining and ore：
Widely used in metallurgy, mining, coal, electricity, building materials, chemical industry, machinery and other industries.
Working principle and structural features of High efficiency ZG series vibrating feeder for mining and ore:
The process of feeding is achieved by using the special vibration motor or two motors to drive the exciter to power the feeding trough along the oblique direction for periodic linear reciprocating vibration. The coal in the tank is thrown up, and moves forward according to the parabola, throwing and falling in an instant. Due to the continuous excitation of the excitation source, the trough is continuously vibrating and the coal is moving forward for giving materials.
Advantages of High efficiency ZG series vibrating feeder for mining and ore：
1.The structure is simple and compact, and the design is reasonable;
2. Convenient in operation and maintenance, low operating cost;
3.Feeding continuous uniform;
4.Low noise, is conducive to improving the working environment;
5.Energy saving: low power consumption, high power factor;
6.Stable amplitude, reliable operation, strong adaptability to various materials;
7.The material trough wear is small, the service life is long.
Technical parameter table of High efficiency ZG series vibrating feeder for mining and ore:
Model |
Groove size width × length × height(mm) |
Productivity(t/h) |
Maximum feed size（mm） |
Double amplitude （mm） |
Vibrator model |
Rated current （A） |
Power （kw） |
Total Weight （kg） |
GZG403 |
400×1000×200 |
30 |
60 |
4 |
ZG405 |
2×0.73 |
2×0.25 |
163 |
GZG503 |
500×1000×200 |
60 |
60 |
ZG405 |
2×0.73 |
2×0.25 |
202 |
|
GZG703 |
700×1000×250 |
120 |
80 |
ZG415 |
2×1.95 |
2×0.75 |
414 |
|
GZG903 |
900×1500×250 |
170 |
80 |
ZG415 |
2×1.95 |
2×0.75 |
605 |
|
GZG1003 |
1000×1750×315 |
250 |
100 |
ZG420 |
2×2.71 |
2×1.1 |
813 |
|
GZG1253 |
1250×2000×315 |
320 |
100 |
ZG432 |
2×3.51 |
2×1.5 |
1072 |
|
GZG705 |
700×1000×250 |
120 |
80 |
6 |
ZG612 |
2×1.66 |
2×0.75 |
307 |
GZG905 |
900×1500×250 |
160 |
80 |
ZG612 |
2×1.66 |
2×0.75 |
577 |
|
GZG1005 |
1000×1750×315 |
220 |
100 |
ZG618 |
2×2.97 |
2×1.1 |
817 |
|
GZG1255 |
1250×2000×315 |
270 |
100 |
ZG625 |
2×3.84 |
2×1.5 |
1077 |
Maintenance of High efficiency ZG series vibrating feeder for mining and ore:
1.During the work, should pay attention to whether the plate is smooth, such as abnormal operation or abnormal sound, should immediately stop and check;
2.The vibrator should be filled once a month 3# lithium grease lubrication, the bearing should be checked about degree of wear every year. If necessary, replacement of maintenance timely;
3.should often check the connection parts of the fastening bolts are loose, should promptly eliminate hidden dangers.
