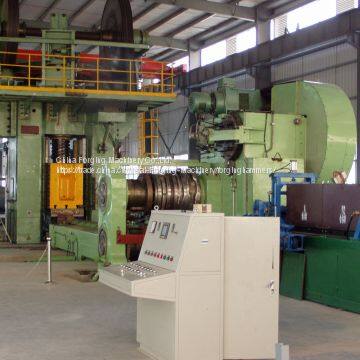

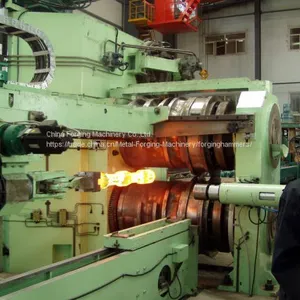

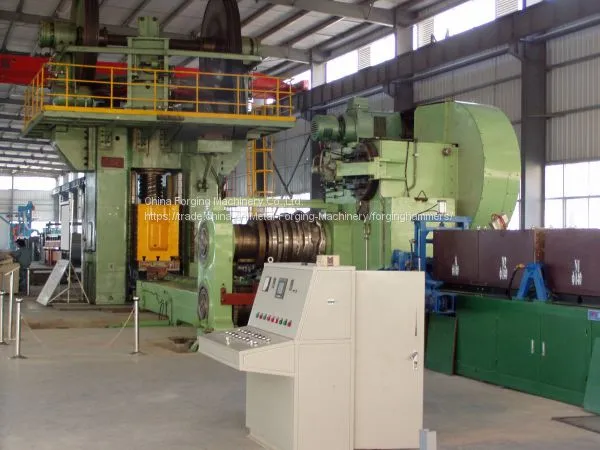

ZGD Automatic Forging Roll
1. It is controlled by PLC, man-machine interface, the state of all the motion can be set and adjusted by touch screen and with fault automatic diagnosis, alarm and indication.
2. With center distance eccentric adjusting mechanism and eliminate the backlash in main gear circular tooth mechanism, which make the structure compact and arrangement reasonable.
3. With automatic lubrication device.
4. The hydraulic oil tank is with cooling and heating device, temperature and level alarm.
5. Both pneumatic friction clutch and brake have the functions of single-action, serial action and inching etc.
6. With the features of slow hydraulic start and rapid rolling.
7. The work-piece is input automatically to realize automatic forging, which not only improve the production efficiency and quality, but also reduce the labor intensity.
8. The relevant movement between the forging rolls and mechanical arm is controlled by PLC.
9. For the small size forging rolls, the lateral moving of mechanical arm clamp can be driven by the servo motor and the ball screw structure.
10. Servo motor driving mechanism and die constant temperature heating mechanism are adopted for aluminum alloy rolling.
Main technical parameter: type unit ZGD- 370 ZGD- 460 ZGD- 560 ZGD- 680 ZGD- 1000 ZGD- 1250 Outer diameter of rolling die mm 370 460 560 680 1000 1250 Width in commission for rolling mm 500 570 700 850 1200 1400 Max.length of work-piece mm 570 710 870 1050 1920 2500 Adjustment of center distance mm 15 17 20 20 25 20 Rotating speed of roller rpm 62 56 52 40/25 15/30 8 Max.blank dimension mm □50 □65 □90 □110 □140 □180 Φ55 Φ75 Φ100 Φ125 Φ160 Φ200 Longitudinal stroke of transfer arm mm 490 630 758 800 7000 7000 Lateral stroke of transfer arm mm 435 505 550 750 920 1420 Vertical and horizontal adjustability adjustable adjustable adjustable adjustable adjustable adjustable Adjustment of longitudinal position mm 200 200 400 Unadjustable unadjustable unadjustable Single lateral stroke mm adjustable adjustable adjustable adjustable adjustable adjustable Max.load capacity kg 12 12 30 50 150 250 Main motor power kw 18.5 22 55 132 250 355 Total weight T 10 12.5 22 60 70 120
