Home > Products > forging machinery > CNC Fully Hydarulic Close Die Forging Hammer C88K-63( 2.5tons)

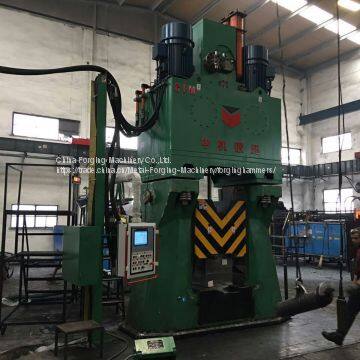

CNC Fully Hydarulic Close Die Forging Hammer C88K-63( 2.5tons)
- 4 Set / Sets per Month
- Shanghai China
- T/T L/C
- 120 days
- Low Cost MIM Product For Tubular Laryngeal Forceps
- Metal Injection Molding Process For MIM Dental Orthodontic Monoblock Bracket Instruments
- MIM Metal Injection Molding Dental Orthodontic
- Metal Injection Molding MIM Dental Orthodontic Buccal Tube
- MIM Stomach Clamp Surgical Handles Of Medical Accessories
- MIM Endoscope Operation Disposable Medical Product MIM Stomach Clamp
Product Details
Brand Name: | CFM | Place of Origin: | China | Model Number: | C88K-63 |
Certification: | Other |
Product Description
Main features:
01) Program control, numerical input, simple operate;
02) High integrated hydraulic control system, accumulator fixed directly on main valve block without any pipe connecting, improve hydraulic system efficiency and easy for maintenance;
03) Advanced taper valve control, fast response, good sealing and not easy to inner leakage;
04) One-piece casting steel U-frame, radial wide guide rails, to get stable and high ram guiding accuracy;
05) Touch screen man-machine interface and automatic malfunction diagnosis and alarm, easy for machine operation and maintenance;
06) Digitized and exacted controlling striking energy, avoid surplus energy harm during striking;
07) Three inserted locating faces to avoid bolts receive force and imported locking washer is used to avoid bolts lose.
08) Fully hydraulic driving system, avoid oil and air mixing;
09) Swaying combine oil cylinder and thin piston rod flexible design;
10) High and low pressure double anti-leakage design;
11) Slow up and down in the case of releasing hydraulic system pressure to make die changing safety;
12) Ram buffer is inner hydraulic buffer, to make sure safety and effective;
Optional machines:
01) Special designed die automatic lubrication, blank convey system, ejector and scale removing system are for customer to choose. They can be linked to hammer through program to realize die lubrication locating, timing, quantifying control, to improve its productivity and reduce labor intensity.
02) Remote monitor system can save maintenance engineer to user’s workshop time and cost. It not only save large labor and resource cost, but also supply fast service to customer to reduce loss arising from hammer stopping.
Main technical parameter:
item | unit | C88K- 16 | C88K- 25 | C88K- 31.5 | C88K- 50 | C88K- 63 | C88K- 80 | C88K- 100 | C88K- 125 | C88K- 160 |
Striking energy | KJ | 16 | 25 | 31.5 | 50 | 63 | 80 | 100 | 125 | 160 |
Max. Striking frequency | Min-1 | 100 | 90 | 90 | 90 | 80 | 80 | 75 | 70 | 65 |
Ram weight | Kg | 1150 | 1800 | 2250 | 3500 | 4350 | 5600 | 7000 | 8600 | 9800 |
Dropping weight | Kg | 1350 | 2100 | 2700 | 4000 | 5000 | 6300 | 8000 | 9800 | 11000 |
Total weight | T | 26 | 42 | 52 | 82 | 104 | 123 | 156 | 195 | 240 |
Main motor power | Kw | 30 | 55 | 55 | 2X55 | 2X55 | 2X90 | 2X90 | 2X110 | 2X132 |
