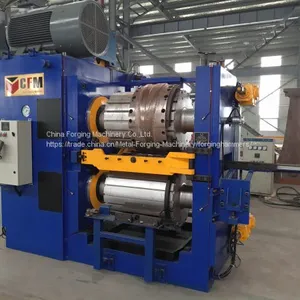

D46 Cross wedge roll

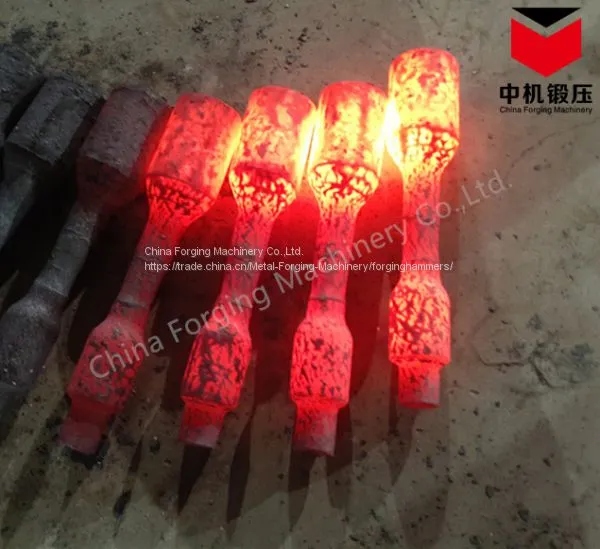

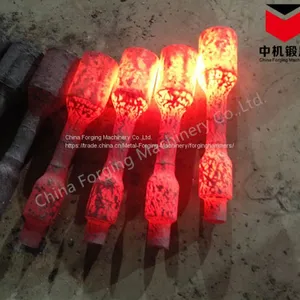

1．It is an advanced forming process, suitable for high precision forming mufti-shoulder shafts.
2．The productivity is twice to five times of traditional die forging. The material usage is high, because of no flash. So the die lifetime is prolonged at least 10 times than used in other traditional machinery.
3．It is with high deforming precision, and the material volume distribution is accurate and stable.
4．The double eccentric adjusting mechanism for center distance is patent technology.
5．It has outstanding advantages, such as high-rigidity, high automation degree and convenient for integrating the whole production line.
6．Dismantling roller, continuous heating, adjustable revolving speed, center distance adjusting, etc. are all available.
7．Friendly working environment can improve the working condition; no shocking and low noise in the operation of rolling, which meet the environmental requirements of modern manufacturing.
8．We can provide process, dies designing and manufacturing. And it can be matched with heating furnace to be automatic rolling lines.
Main technical parameter: type unit D46- 25X300 D46- 35X300 D46- 50X400 D46- 60X500 D46- 80X700 D46- 100X800 D46- 125X1100 D46- 165X1200 Center distance of rollers mm 400 500 630 700 800 1000 1250 1500 Useful dimension of roller dia. mm 320 400 500 560 630 800 1000 1200 length mm 360 400 500 600 800 900 1200 1300 Max.size of work -piece dia. mm 25 35 50 60 80 100 130 165 length mm 300 300 400 500 700 800 1100 1200 Adjustable distance of roller mm ±8 ±12 ±15 ±17 ±20 ±30 +50 -30 +55 -44 Rolling speed rpm 20 16 14 12 10 7 6 5 Adjustable angle of rollers o ±3° ±3° ±3° ±3° ±3° ±3° ±3° ±3° Main motor power kw 15 20 45 55 90 132 250 315
