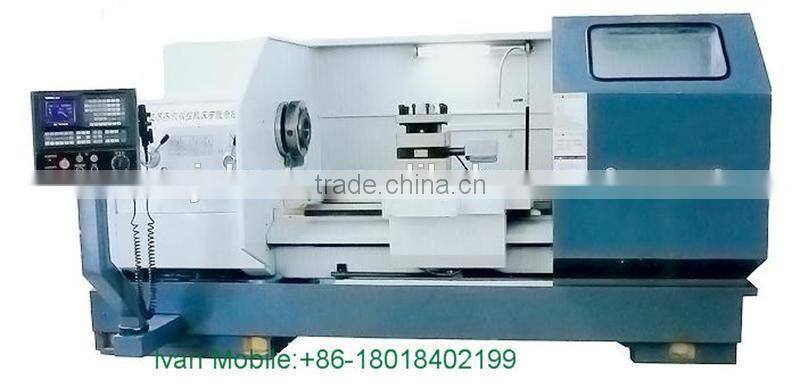

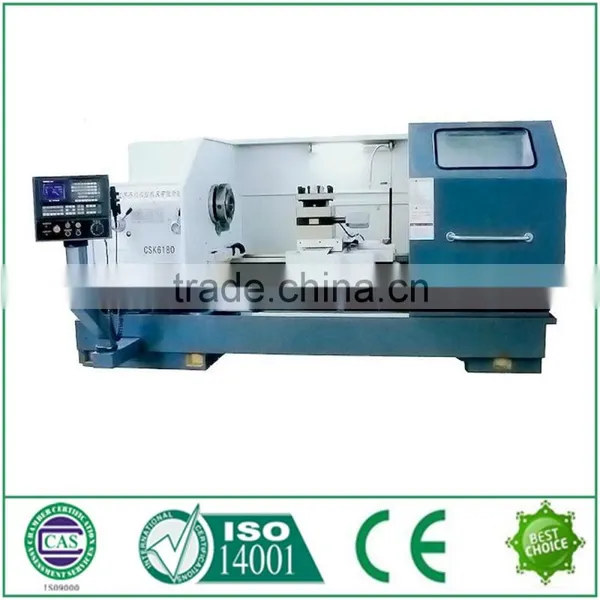

2015 China suppliers Horizontal CNC Lathe Machine CSK6180 with CE after-sale service oversea
- 100 Set / Sets per Month
- shanghai China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 800 | Place of Origin: | Jiangsu, China |
Brand Name: | OEM | Model Number: | CSK6180 | Voltage: | 380V or 220V |
Power(W): | 11KW | Dimension(L*W*H): | 4950*1600*1950 | Weight: | 5300KG |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
GOODS DESCRIPTION
1.Mateched with FANC.SIEMENS or NC system high-reliability because of its STD totalline strnc-tion,CRT Showing,line and cicle in-terpolation.
2.Two axle close-circle control.AC servo motor.Semi-closed loop control system.High-strength casting bed with high-fre-quency chilling and precise grinding,
3.slideway gluded low-fricton plastics.
4.Spindle with frequening converter and stepless variable drive.
5.Suited for cutting workpieces which have various shapes and sizes.
OUR OUTSTANDING ACHIEVEMENTS
TECHNICAL PARAMETER
MODEL | CSK6163 | CSK6180 | CSK6185 |
Max.swing over bed | 630mm | 800mm | 850mm |
Max.swing over cross slide | 310mm | 480mm | 530mm |
Center distance | 3000mm | ||
Max machining length | 2700mm | ||
Spindle hole | 70mm | 105mm | 105mm |
Max.distance of moving tool-post |
|
|
|
Longitude | 3000mm | ||
Transverse | 350mm | 450mm | |
Spindle speeds(Number) | 14-750rpm(18steps) or variable speed | ||
Main motor power | 11kw or variable frequency motor | ||
Speed of high-speed movement |
| ||
Longitude | 6m/min | ||
Transverse | 3m/min | ||
Feed resoving factor |
| ||
Longitude | 0.01mm | ||
Transverse | 0.005mm | ||
Toll numbers on tool-post | 4 (6.8 optional ) | ||
Positioning accuracy |
| ||
Longitude | 0.03/500mm 0.05/2000mm | ||
Transverse | 0.02mm | ||
Repeatablity |
| ||
Longitude | 0.013/500mm 0.025/2000mm | ||
Transverse | 0.01mm | ||
Repeatablity accuracy of tool-post | 0.005mm | ||
NET.WEIGHT |
| ||
Center distance:3000mm | 5000kg | 5300kg | 5500kg |
FLOOR SPACE(L*W*H) |
|
|
|
Center distance:3000mm | 4950*1600*1950 |
MORE DETAILS
OUR SALES SERVICE TEAM

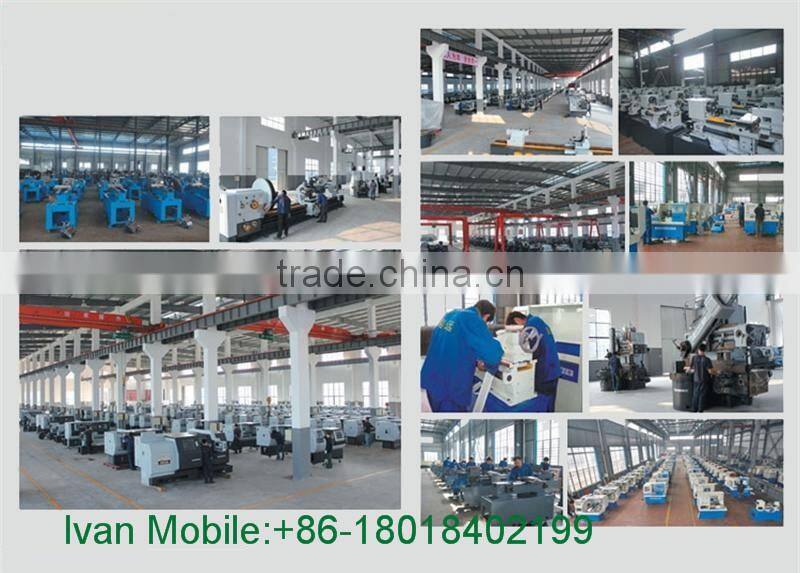

OUR COMPANY

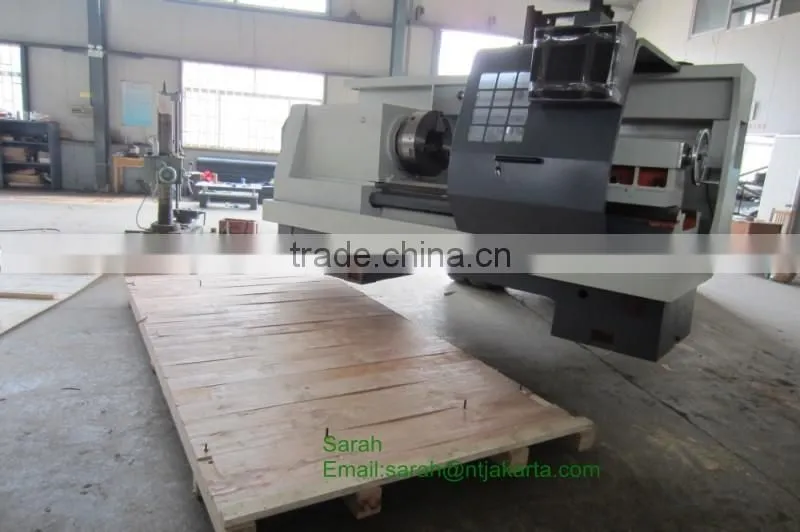

SHIPPING
PAYMENT TERMS
CONTACT US
