Home > Products > Machinery > China suppliers 12 Station Live Turret Machine Tool Fanuc Control slant Bed Cnc Lathe

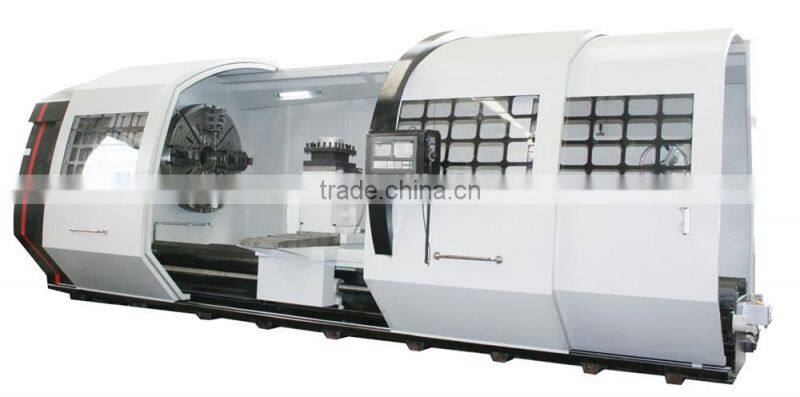

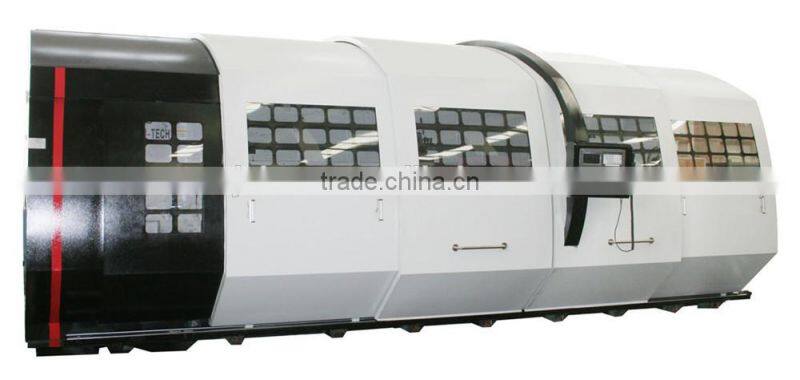

China suppliers 12 Station Live Turret Machine Tool Fanuc Control slant Bed Cnc Lathe
USD $10,000 - $50,000
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- SHANGHAI CHINA
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
| Automatic Grade: | Automatic | Max. Swing Diameter: | 1980MM | Place of Origin: | Jiangsu, China |
| Brand Name: | NANTONG JAKARTA | Model Number: | SK61180X4000MM | Voltage: | 380V |
| Power(W): | 30KW | Dimension(L*W*H): | 7300*3000*2500mm | Weight: | 22000KG |
| Certification: | CE & ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Mateched with FANUC.SIGMENS or NC system high-reliability because of its STD totalline strnc-tion, CRT Showing,line and circle interpolation.
2 axle closs-cirlce ontrol. AC servo motor. Semi-closed loop control system. High-strength casting bed with high-fre-quency chilling and precise grinding.
Slidewayglued low-frication plastics.
Spindle with frequening converter and stepless variable drive.
Suited for cutting workpieces which have various shapes and sizes.
Technical parameters
| MODEL | SK61128 | SK61148 | SK61168 | SK61198 | SK61208 |
| Max swing over bed | 1280mm | 1480mm | 1680mm | 1980mm | 2080mm |
| Max swing over cross slide | 840mm | 1040mm | 1240mm | 1540mm | 1640mm |
| Center distance | 2-16 m | ||||
| Spindle hole | 130mm | ||||
| Bed width | 1100mm | ||||
| Diameter of tailstock steeve | 260mm | ||||
| Max.distance of moving tool-post | |||||
| Longitude | 600mm | ||||
| Transverse | 800mm | ||||
| Spindle speede(Number) | 2.5-250(21)r/min | ||||
| Main motor power | 30KW | ||||
| Speed of high-speed movement | |||||
| Longitude | 4000mm/min | ||||
| Transverse | 3000mm/min | ||||
| Tool numebers on tool-post | 4.6.8 | ||||
| Positioning accuracy | |||||
| Longitude | 0.05mm | ||||
| Transverse | 0.03mm | ||||
| Repeatablity | |||||
| Longitude | 0.025mm | ||||
| Transverse | 0.012mm | ||||
| Repeatablity accuracy of tool-post | 0.005mm | ||||
| NET. WEIGHT(KG) | |||||
| SKQ61125*3000mm | 22000 | ||||
| FLOOR SPACE (L*W*H) | |||||
| SKQ61125*3000mm | 7300*3000*2500 | ||||
