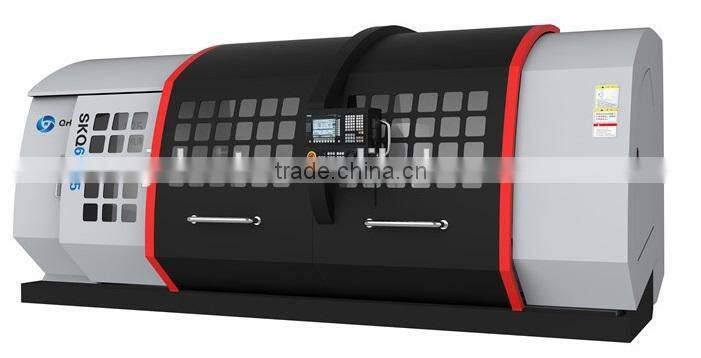

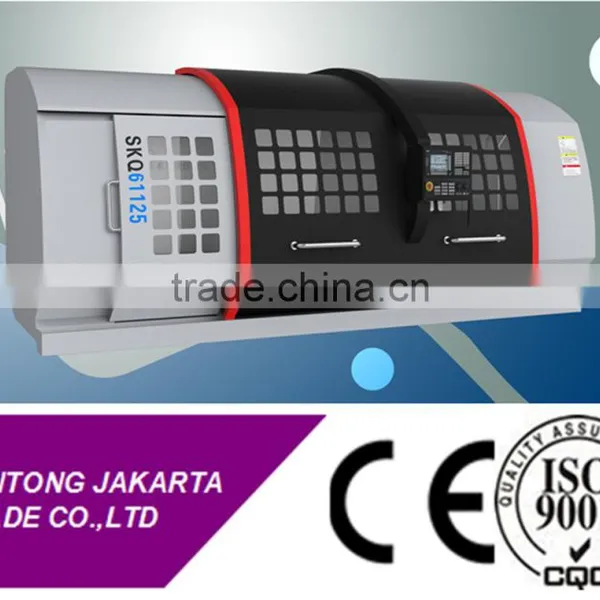

China Supplier 2015 Good Quality SKQ SERIES CNC LATHE MACHINE Horizontal
US$ 10,000 - 50,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Suppliers 2015 Horizontal Profile Bender/Hydraulic Profile Bending MachineUS$ 3,000 - 50,000MOQ: 1 Set -
CWA61140 Universal Lathe Machine Conventional Lathe Machine Price for Sale From China SuppliersUS$ 28,000 - 97,000MOQ: 1 Set
-
Metal Cut Band Sawing Machine GB4028US$ 100 - 10,000MOQ: 1 Set
-
China Supplier QC11Y-6*3200 Hydraulic Guillotine ShearUS$ 15,000 - 25,000MOQ: 1 Unit
-
WC67Y-200T3200 Hydraulic Plate Bending Machine / Press Brake With Low PriceUS$ 8,000 - 150,000MOQ: 1 Unit
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
1250MM
Place of Origin
Jiangsu, China
Brand Name
NANTONG JAKARTA
Model Number
SK61125*3000MM
Voltage
380V
Power(W)
22KW
Dimension(L*W*H)
6000*2700*2300mm
Weight
12000KG
Certification
CE & ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications China 2015 Good quality SKQ SERIES CNC LATHE MACHINE Horizontal
Mateched with FANUC.SIGMENS or NC system high-reliability because of its STD totalline strnc-tion, CRT Showing,line and circle interpolation.
2 axle closs-cirlce ontrol. AC servo motor. Semi-closed loop control system. High-strength casting bed with high-fre-quency chilling and precise grinding.
Slidewayglued low-frication plastics.
Spindle with frequening converter and stepless variable drive.
Suited for cutting workpieces which have various shapes and sizes.
Technical parameters China 2015 Good quality SKQ SERIES CNC LATHE MACHINE Horizontal
| MODEL | SKQ61100 | SKQ61125 | SKQ61140 | SKQ61160 |
| Max swing over bed | 1000mm | 1250mm | 1400mm | 1600mm |
| Max swing over cross slide | 590mm | 840mm | 1000mm | 1200mm |
| Center distance | 2,3,4,5,6,810,12 m | |||
| Spindle hole | 130mm | |||
| Bed width | 780mm | |||
| Diameter of tailstock steeve | 160mm | |||
| Max.distance of moving tool-post | ||||
| Longitude | 500mm | |||
| Transverse | 600mm | |||
| Spindle speede(Number) | 2.5-250(21)r/min | |||
| Main motor power | 22KW | |||
| Speed of high-speed movement | ||||
| Longitude | 4000mm/min | |||
| Transverse | 3000mm/min | |||
| Tool numebers on tool-post | 4.6.8 | |||
| Positioning accuracy | ||||
| Longitude | 0.05mm | |||
| Transverse | 0.03mm | |||
| Repeatablity | ||||
| Longitude | 0.025mm | |||
| Transverse | 0.012mm | |||
| Repeatablity accuracy of tool-post | 0.005mm | |||
| NET. WEIGHT(KG) | ||||
| SKQ61125*3000mm | 12000 | |||
| FLOOR SPACE (L*W*H) | ||||
| SKQ61125*3000mm | 6000*2700*2300mm | |||
