DESCRIPTION

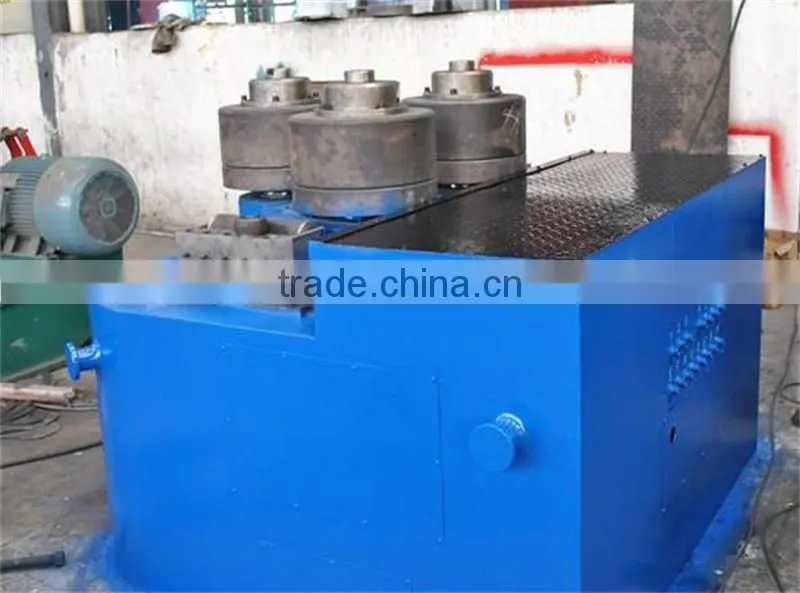

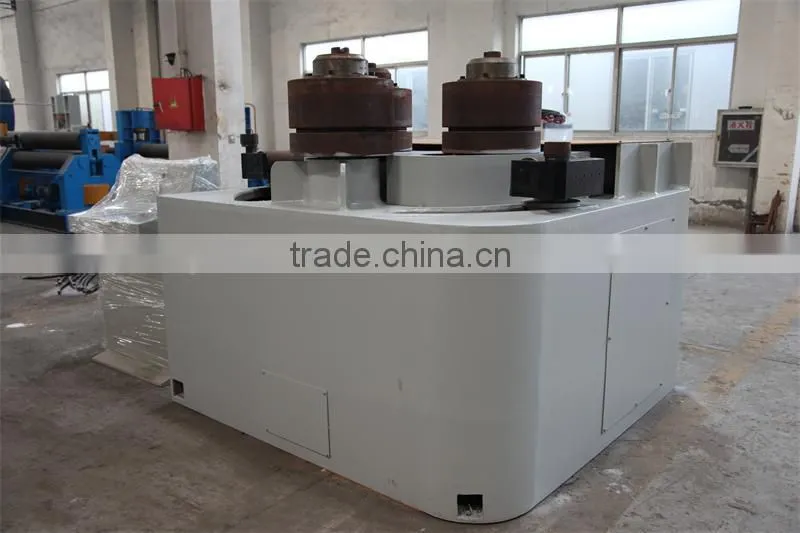

1,Horizontal Profile Bender, Horizontal Section Bender
2, All Accessories use world famous brand

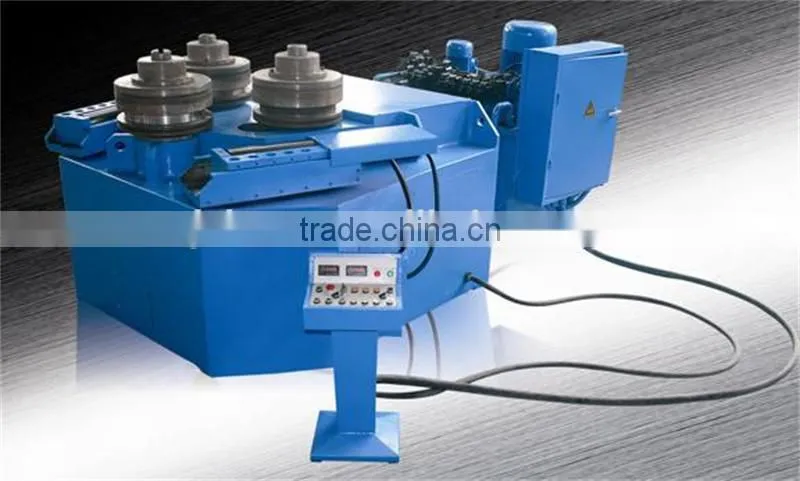

The Horizontal Profile Bender, Horizontal Section Bender Features:
1. The main three rollers and curvature adjustment of Besco Rolling Pipe Bending Machineis drove by hydraulic system, which with stability performance.
2. Besco Rolling Pipe Bending Machinea dopt grating ruler for curvature range adjustment, which with high precision. Besco Rolling Pipe Bending Machineis allowed to adjust curvature either by two rollers meanwhile, or by single roller according to set, which is easy to operate.

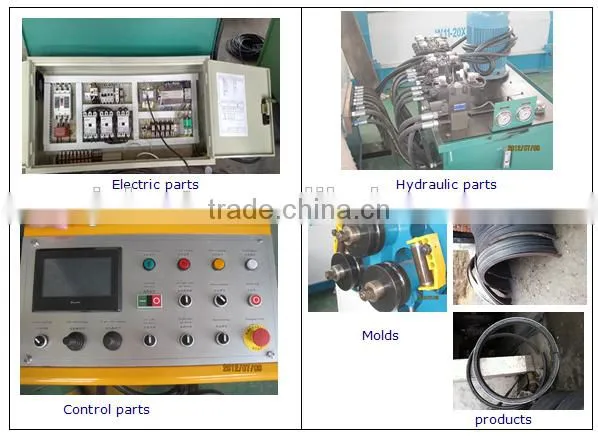

3. Besco Horizontal Profile Bender, Horizontal Section Bender use touch panel and PLC electrical control system, with advanced technology and stable performance;
4. With fault auto-detecting system and alarm function, and Besco Horizontal Profile Bender, Horizontal Section Bender display error information and solving suggestion on screen;
5. Besco Horizontal Profile Bender, Horizontal Section Bender equipe counting function, to record the quantity of processed workpieces
6. All Rolling data can be saved in PLC of Besco Horizontal Profile Bender, Horizontal Section Bender as permanent memory, and can be use at any time.
7. Besco Horizontal Profile Bender, Horizontal Section Bender have manual, semi-automatic and automatic work mode. Powerful cooling system allows the Besco Rolling Pipe Bending Machinecould be used in tropic area stably;

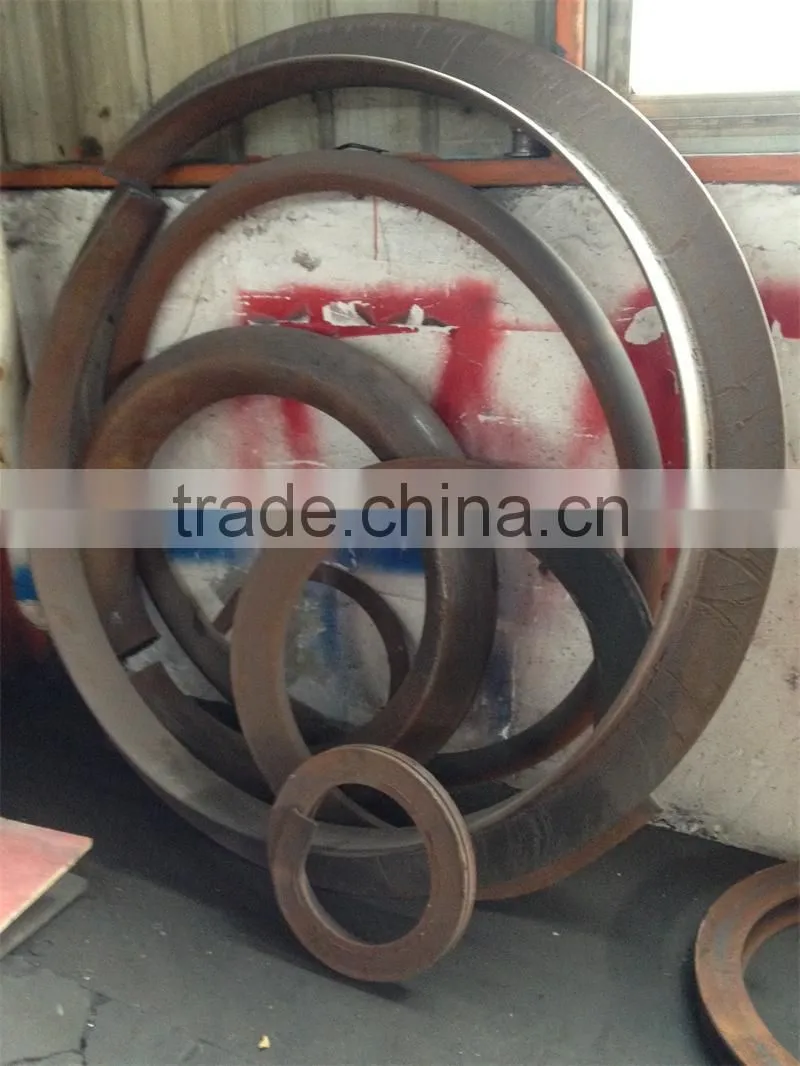

8. Besco Horizontal Profile Bender, Horizontal Section Bender allow to process varies of metal profile, such as angle iron, flat steel, round pipe and other material of abnormal section profile, through change the groove of Rolling dies;
9. Besco Horizontal Profile Bender, Horizontal Section Bender is able to bend large size profile, while no need to make super size Rolling die.
More details please feel free to contact us!
OUR OUTSTANDING ACHIEVEMENTS

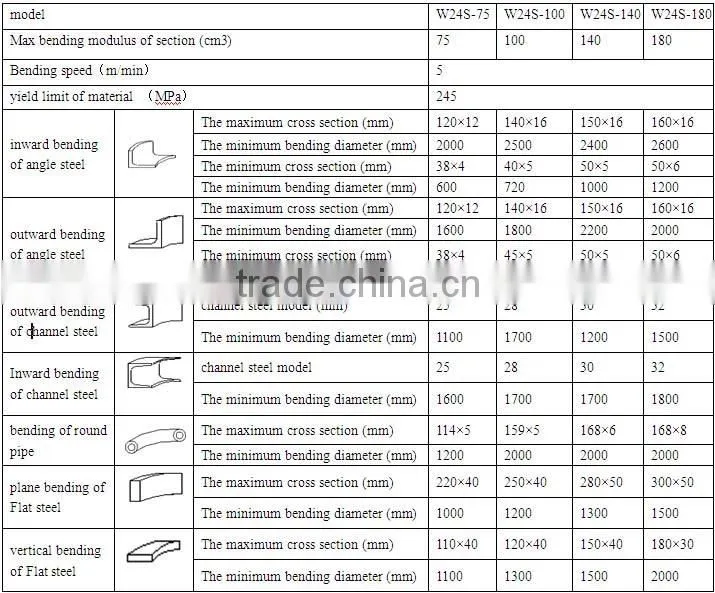

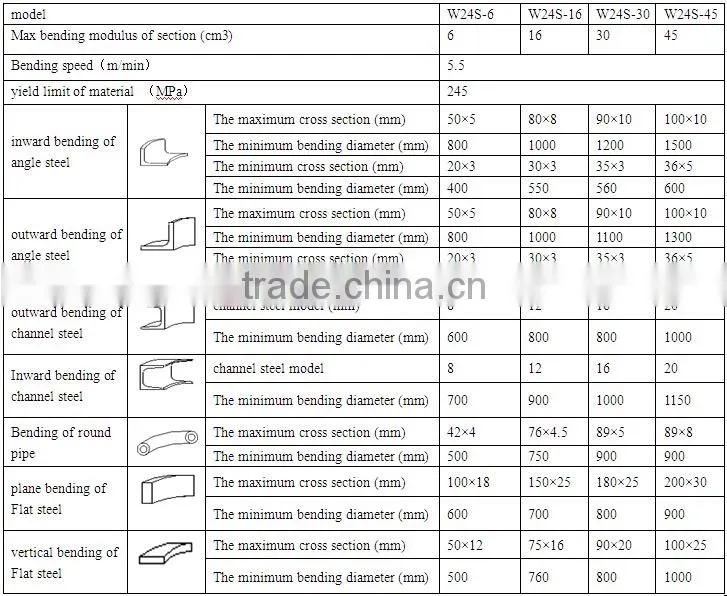

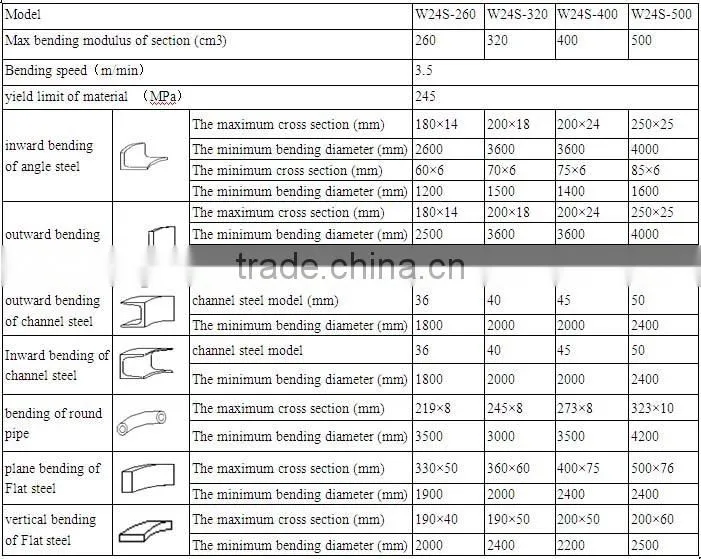

TECHNICAL PARAMETERS OF PROFILE BENDER
|
TPYE (W24Y/W24YPC /W25K) |
30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | 500 |
|
profile Max. bend section module(cm*2) |
30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | 500 |
| bending speed(m/min) | 5 | 5 | 5 | 5 | 5 | 4 | 4 | 4 | 4 | 4 |
| profile yield limit (Mpa) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Max hydraulic pressure(kw) | 8 | 12 | 14 | 16 | 16 | 16 | 18 | 20 | 25 | 25 |
| oil pump pressure(kw) | 12 | 16 | 16 | 21 | 21 | 21 | 25 | 31.5 | 31.5 | 31.5 |
|
measure ment(L*W*H) (M) |
1.6*1.2*11 |
1.8*1.5 *1.2 |
2.1*1.8 *1.6 |
2.2*1.9 *1.6 |
2.5*2.2 *1.6 |
3.1*2.3 *1.8 |
3.6*2.6 *1.8 |
4.0*3.2 *2 |
4.5*3.5 *2.2 |
5.5*4.0 *2.5 |
| weight(kg) | 3400 | 5000 | 7000 | 9000 | 11000 | 16000 | 23000 | 30000 | 36000 | 45000 |
PRODUCTS
OUR COMPANY
SHIPPING
PAYMENT TERMS
CONTACT US
OUR SERVIES
1 After-sale service content
1.1 Product quality warranty period is12 months.
1.2 After the product is completed, we are in charge of training the mechanical, hydraulic, electrical and operational 2 staff for free in our factory
1.3 Life-long service, and provide timely spare parts not free.
2 quality promise
Strictly implement quality commitment
2.1 machine qualities must be excellent and reliable before delivery, eliminate early failures of machine at our factory.
2.2 User found quality problem in the using process of machine, we response within 24 hours after receiving user’s notification, if necessary send engineer to user site. Repair personnel do not leave user site if do not eliminate failure.
2.3 Our company should provide spare part for repairing machines, and repair machine as per customer’s requirement.
