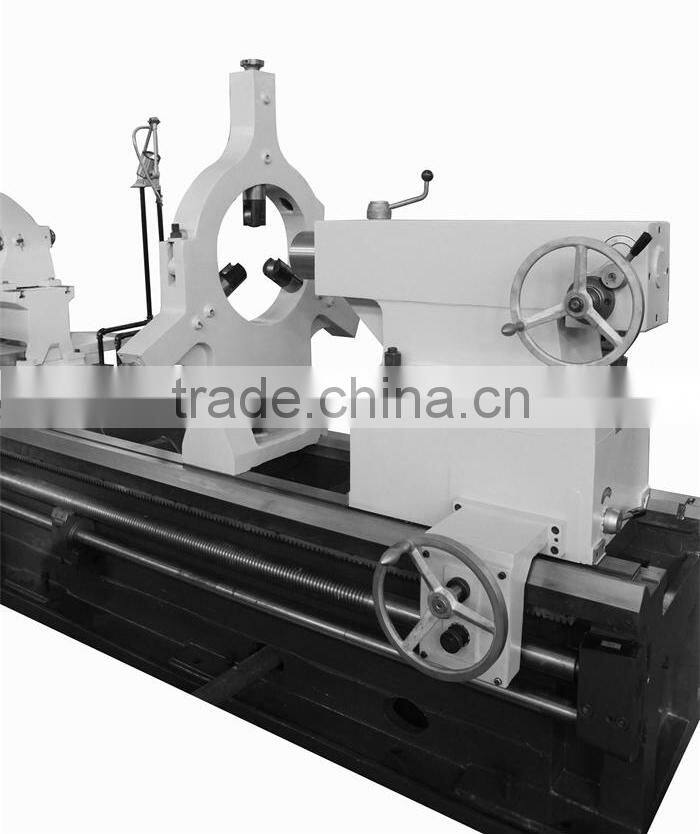

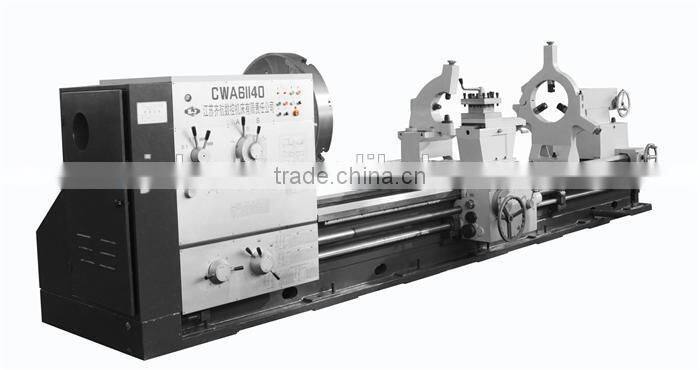

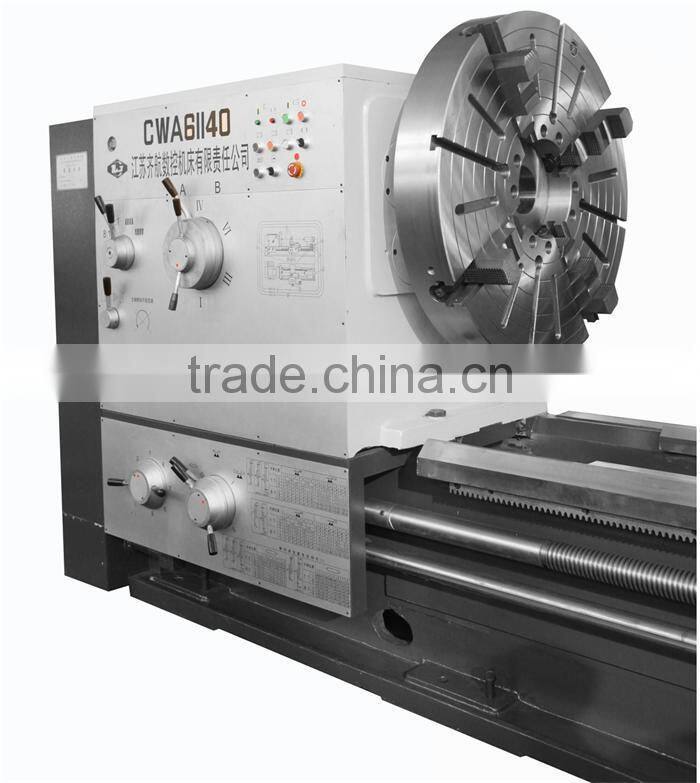

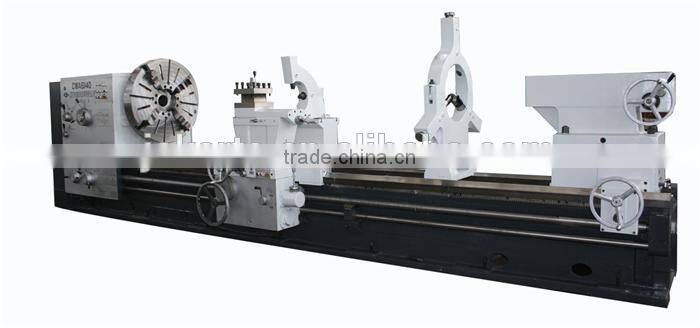

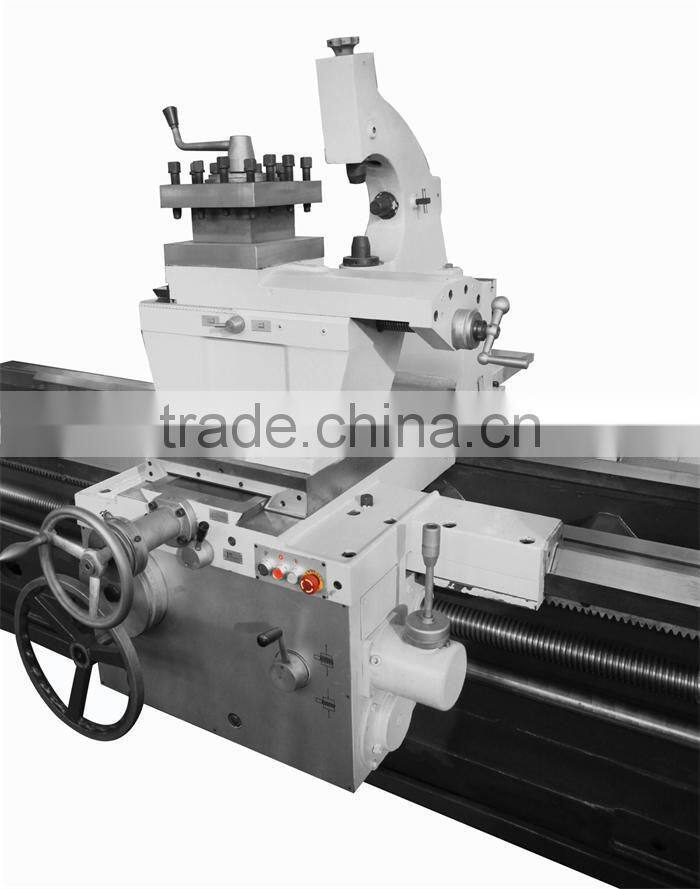

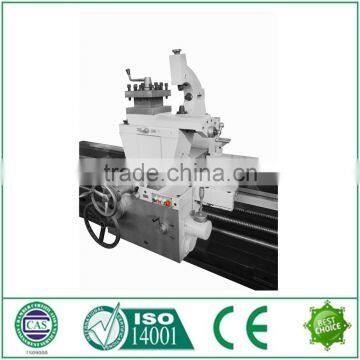

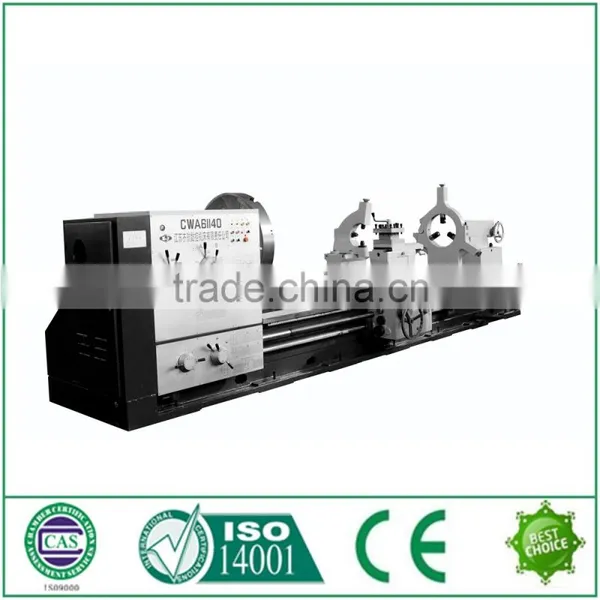

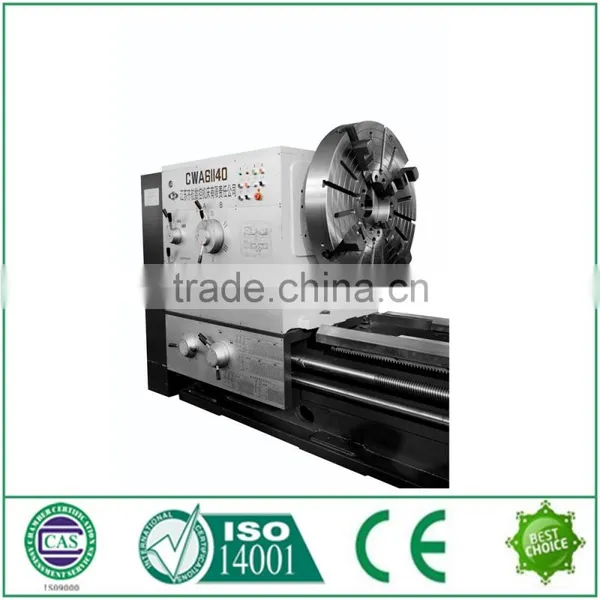

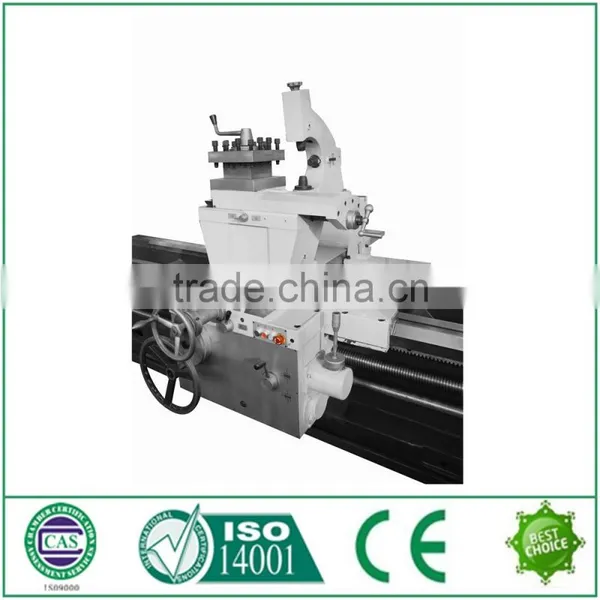

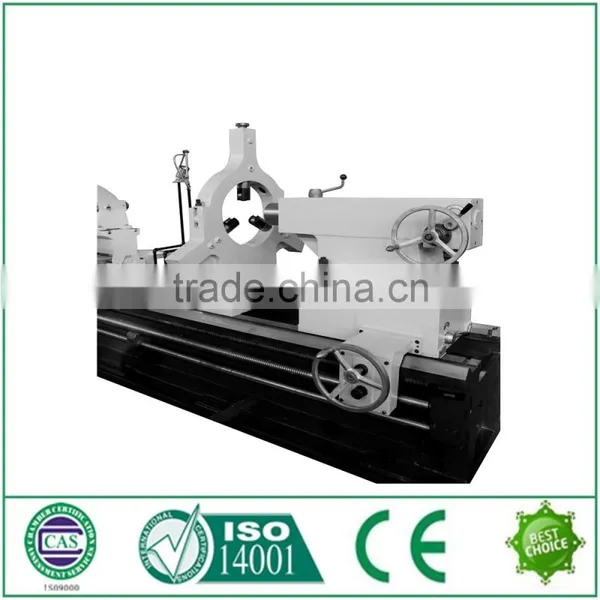

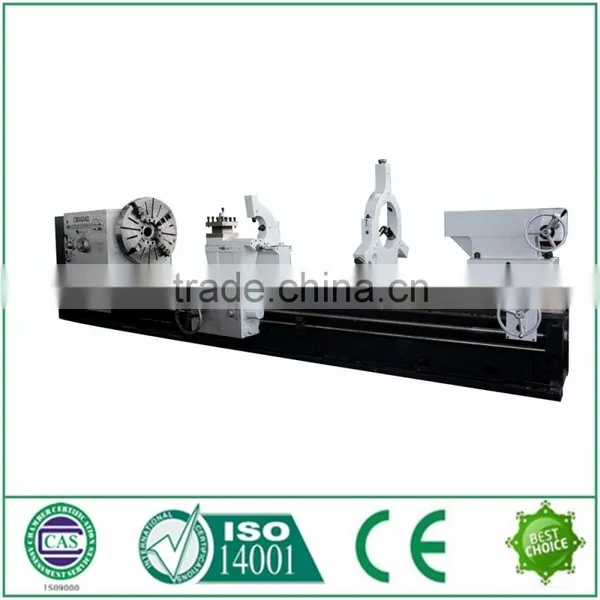

CWA Series Universal Lathe Machine Conventional lathe machine
1. CW(A) Series parallel lathes are suitable for turning of cast iron and steel workpieces, turning of non-ferrous metal parts of big or medium sizes.
2. It can do external cylindrical surface turning, inner hole and end face turning, groove broaching, drilling, boring and trepanning.
3. It can also turn various internal and external metric, inch module and diametrical pitch threads, the top slide can be used independently for turning of short taper.
4. These lathes are of high power, high rigidity and wide rotating speed range, so it can be used for high speed and strong force turning.
5. The lathe is suitable for high-speed steel, hard alloy and ceramic cutting tool, machining inner and outer cylindrical surface, inner and outer conical surface, groove and plane of ferrous metals, nonferrous metals and some non-metallic parts.
6. It can meet different quantity production requirements with high efficiency, stable and reliable precision.
OUR OUTSTANDING ACHIEVEMENTS
TECHNICAL PARAMETERS
| MODEL | CWA61100 | CWA61125 | CWA61140 | CWA61160 |
| Max.weight of workpiece | 8T | |||
| Max.swing over bed | 1000mm | 1250mm | 1400mm | 1600mm |
| Max.swing over cross slide | 620mm | 870mm | 1000mm | 1200mm |
| Center distance | 1.5m 2m 3m 4m 5m 6m 8m 10m 12m | |||
| Width of bed | 780mm | |||
| HEAD STOCK | ||||
| Spindle hole | 130mm | |||
| Spindle taper | metric 140# | |||
| Spindle speeds | 3.15-315r/min or 2.5-250r/mm.types of rev:forward 21,backward 12 | |||
| GEAR BOX-THREADS&FEEDS | ||||
| Metric threads range(kinds) | 44 types 1-120mm | |||
| Inch threads range(kinds) | 31types 1/4-24 tooth/hour | |||
| Moudle threads range(kinds) | 45types 0.5-60mm | |||
| Diametral threads range(kinds) | 38types 1/2-56DP | |||
| Longitudinal feeds range(kinds) | 56types0.1-12mm | |||
| Cross feed range(kinds) | 56types 0.05-6mm | |||
| Rapid feed:Long/Cross | 3400mm/min,1700mm/min | |||
| TOOL-POST | ||||
| Distance between Center & Tool | 48mm | |||
| Tool section | 45*45mm | |||
| CARRIAGE | ||||
| Cross slide travel | 650mm | |||
| Compound rest travel | 280mm | |||
| TAILSTOCK | ||||
| Sleeve diameter | 160mm | |||
| Sleeve taper | metrics 80#orM6# | |||
| Sleeve travel | 300mm | |||
| MOTOR | ||||
| Main motor | 22kw | |||
| Coolant motor | 0.15kw | |||
| Rapid feed motor | 1.5kw | |||
| Center distance.Net weight.Dimention CW61125 | 1500 | 10000kg | 4600 x 1900 x 2400 | |
| 2000 | 10800kg | 5100 x 1900 x 2400 | ||
| 3000 | 11600kg | 6100 x 1900 x 2400 | ||
| 4000 | 12400kg | 7100 x 1900 x 2400 | ||
| 5000 | 13200kg | 8100 x 1900 x 2400 | ||
| 6000 | 14000kg | 9100 x 1900 x 2400 | ||
| 8000 | 15600kg | 11100 x 1900 x 2400 | ||
| 10000 | 17200kg | 13100 x 1900 x 2400 | ||
| 12000 | 18800kg | 15100 x 1900 x 2400 | ||
