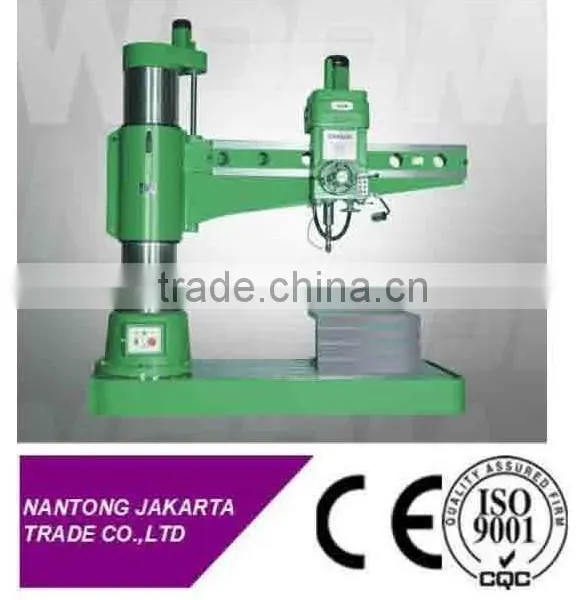

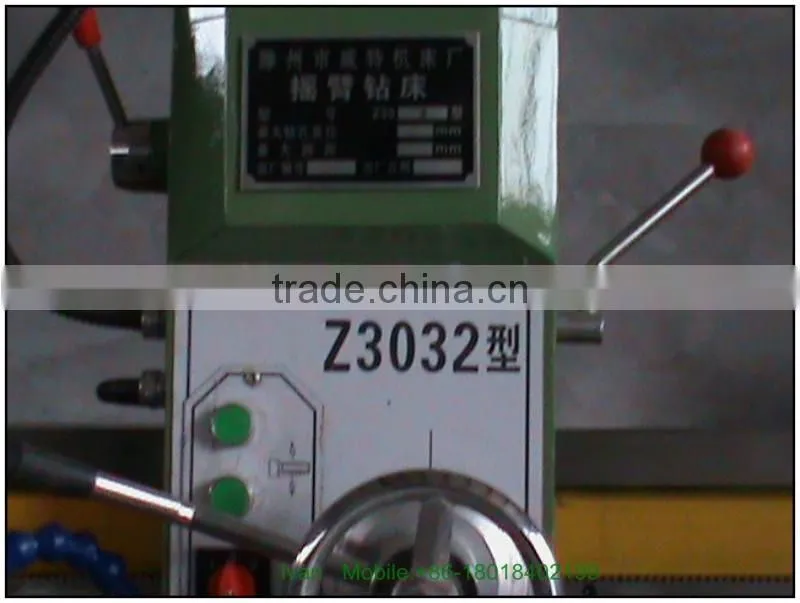

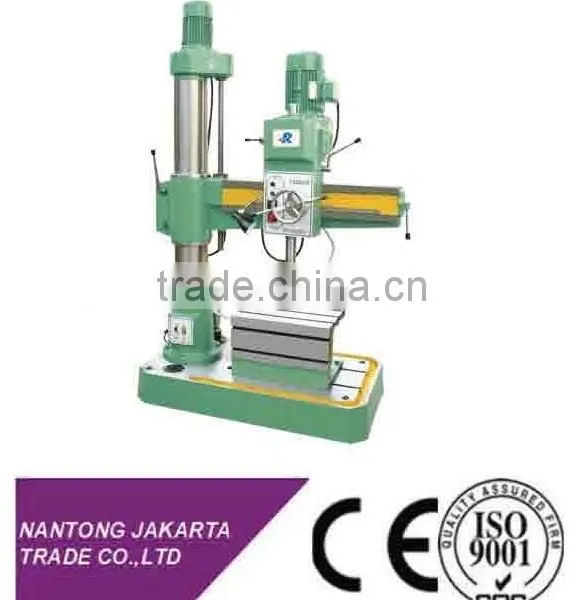

China Suppliers Cheap Price Multifunction and Chinese Good Quality Drilling Machine Z3032*10

US$ 10,000 - 12,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

1600rpm

Nantong Jakarta Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 1600rpm

Place of Origin Jiangsu, China

Brand Name YJD

Model Number Z3032X10/1

Voltage 380V

Power(W) 2200

Dimension(L*W*H) 1760x800x2050mm

Weight 2000KG

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

Characters

(1) With wide range of speed and feed.With manual,power and fine feeds.The feed of machines are very

easily engaged and disengaged at any time.

(2) With safe and reliable feed safety machine, all parts easy opeartion and change

(3) All controls centralized on the head stock easy operation and change. With rapid and accurate hydraulic

preselection of speeds and speeds of spindle.

(4) Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality

of material for basic parts

(5) Main parts are made by machine center which import form KIA with high precision and efficiency ,

ensuring reliability and high quality.

(6) Spindle parts are made by special high quality steel heat treatment to be made by first class

equipments ensuring high strength and durability.

(7)Main gears are machined by gear grinding ,the machine ensuring high precision and low noise.

Main specifications

Item	Unit	Z3032X10/1
Max. drilling diameter	mm	32
Distance between spindle axis and column	mm	300~1000
Diameter of column	mm	240
Spindle taper		MT4
Spindle travel	mm	280
Range of spindle speeds	r/min	32~2500
Number of spindle speeds		16
Range of spindle feeds	Mm/r	0.10-1.25
Main spindle feeds		8
Distance spindle nose to working surface of base	mm	220~1000
Worktable dimensions	mm	600x450x450
dimension of base	mm	1710x800x160
overall size	mm	1760x800x2050
Power of main motor	KW	2.2
G.W/N.W	kg	2000/1600
packing dimension	cm	187x97x220
