W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE

W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE thumbnail-1
W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE thumbnail-2
W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE thumbnail-3
W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE thumbnail-4
W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE thumbnail-5

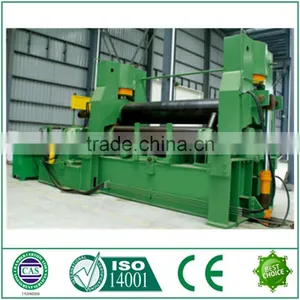

W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE thumbnail-6
W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE photo-1

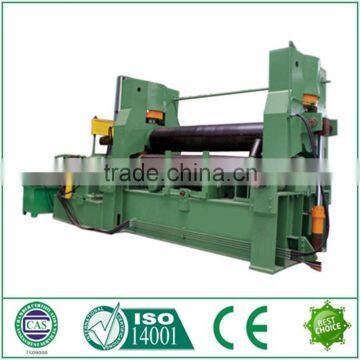

W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE photo-2

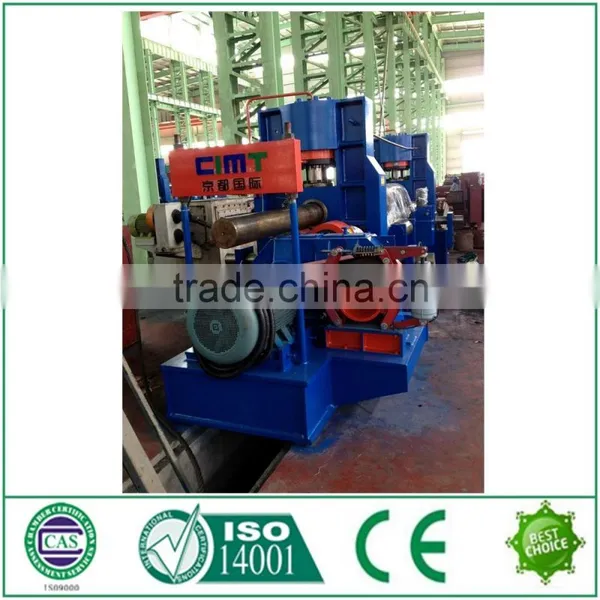

W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE photo-3

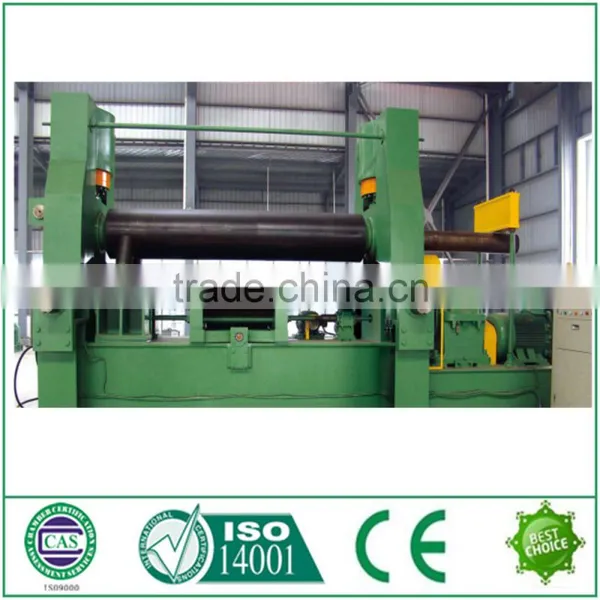

W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE photo-4

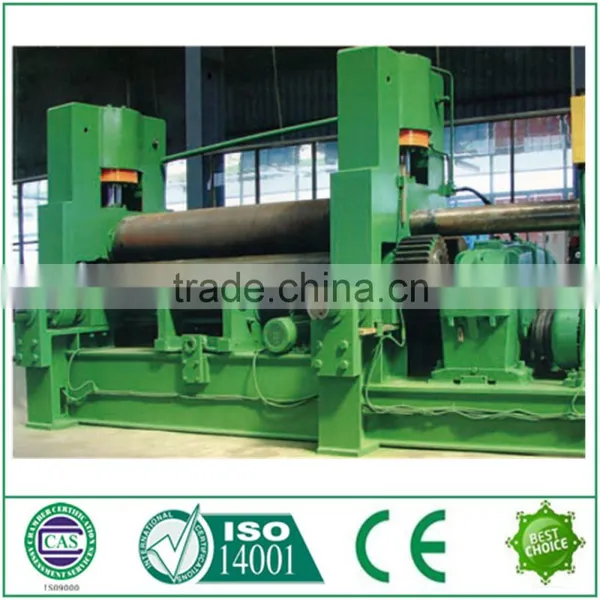

W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE photo-5

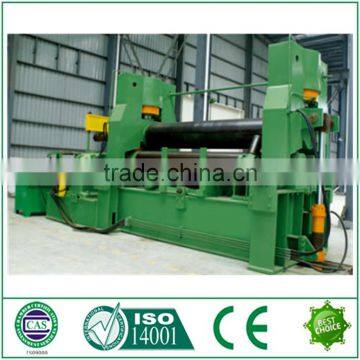

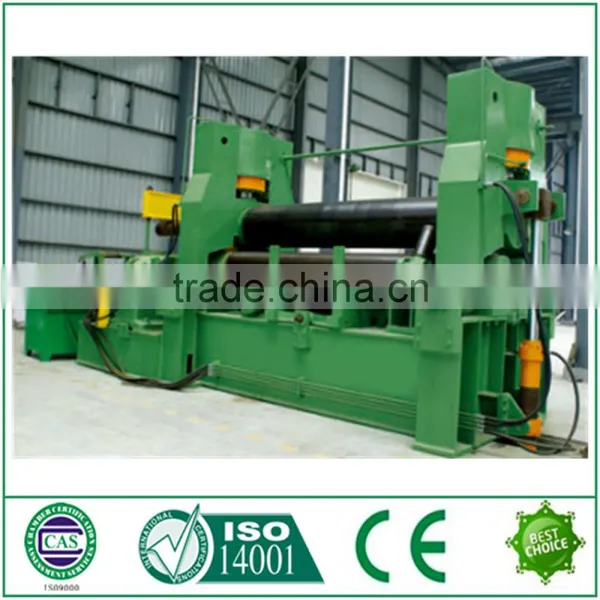

W11S BIG TYPE UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE photo-6
US$ 14,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
YJD
Contact Supplier Request Quote Chat Now
Nantong Jakarta Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name YJD
Model Number W11S
Machine Type Coiling Bending Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Carbon Steel
Power Hydraulic
Automation Automatic
Extra Services End Forming
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Products description

Performance features:W11S

1.The upper roller is designed as drum shape. Support roller install in the lower ofBottom roller to help bending a perfect cylinder from thin to thick plate;

2.Special bending craft, high precision pre-bending of the edge, digital control for bending process;

3.Rich shape bend such as O, U, and R etc.

4.Cone bending device for conical bend easily;

5.Whole chassis, simple ground foundation, it’s convenient to move the workplace

Performance features:W12

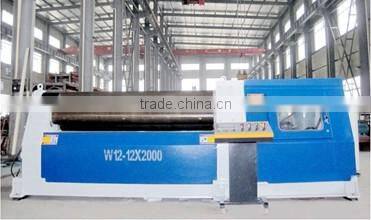

This machine is a hydraulic 4-roller bending machine and used to do pre-bending the end of plate, rolling it into round, cone and other shapes.

Specification
Top roll pressing force
(Tons)
Max Thickness

(mm)
max Width
(mm)
Top roll diameter
(mm)
Lower roll diameter
(mm)
Center distance

(mm)
drive
motor(KW)
Hydraulic
motor(KW)
moving
motor（KW)
W11S-6*2000
25
6
2000
195
125
160
3
2.2
0.75
W11S-8*1500
25
8
1500
175
125
160
3
2.2
0.75
W11S-8*2500
37
8
2500
235
135
180
4
2.2
0.75
W11S-10*1500
37
10
1500
205
135
180
4
2.2
0.75
W11S-11*1500
45
11
1500
215
135
180
4
2.2
0.75
W11S-12*2000
65
12
2000
250
145
200
5.5
4
0.75
W11S-14*2500
75
14
2500
270
150
245
7.5
4
1.1
W11S-15*2000
75
15
2000
255
150
245
7.5
4
1.1
W11S-18*3500
160
18
3500
390
200
330
18.5
7.5
2.2
W11S-20*2500
130
20
2500
330
180
300
15
5.5
2.2
W11S-22*2500
160
22
2500
360
200
330
18.5
7.5
2.2
More details
Related products

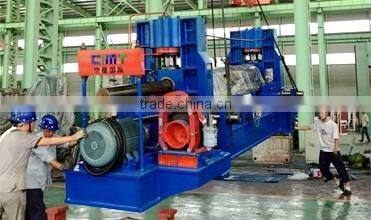

Exhibition &Visitors
Our Service

Oversea after-sales service


Standardization of Service “212"

2: response in 2 hours

1: provide solution in 1 day

2: solve complaint in 2 days
