Backstop Clutch RSBW One Way Bearing for Kelp Machine

Backstop Clutch RSBW One Way Bearing for Kelp Machine thumbnail-1
Backstop Clutch RSBW One Way Bearing for Kelp Machine thumbnail-2
Backstop Clutch RSBW One Way Bearing for Kelp Machine thumbnail-3
Backstop Clutch RSBW One Way Bearing for Kelp Machine thumbnail-4
Backstop Clutch RSBW One Way Bearing for Kelp Machine thumbnail-5
Backstop Clutch RSBW One Way Bearing for Kelp Machine thumbnail-6
Backstop Clutch RSBW One Way Bearing for Kelp Machine photo-1
Backstop Clutch RSBW One Way Bearing for Kelp Machine photo-2
Backstop Clutch RSBW One Way Bearing for Kelp Machine photo-3
Backstop Clutch RSBW One Way Bearing for Kelp Machine photo-4
Backstop Clutch RSBW One Way Bearing for Kelp Machine photo-5
Backstop Clutch RSBW One Way Bearing for Kelp Machine photo-6
US$ 50 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA of rsbw one way bearing
Model Number:
rsbw one way bearing
Precision Rating:
P6
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo for rsbw one way bearing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA of rsbw one way bearing
Model Number rsbw one way bearing
Precision Rating P6
Seals Type Sealed
Place of Origin Jiangsu, China



Backstop Clutch RSBW One Way Bearing for Kelp Machine



Product Description



Features of rsbw one way bearing

Structure: RSBW one way clutch bearing is a sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected metallic labyrinth seals.

Package detail: radial spherical plain bearings are delivered grease lubricated, ready to install in a vertical or horizontal position.

Caution: the torque arm and bearings must not be pretressed.



Product name

rsbw one way bearing

Model

RSBW20

Torque capacity

GCr5

Overrunning speeds

400 min -1

Inner diameter

20mm

Outer diameter

106mm

Material

GCr15

Thickness

125mm

Weight

2kg

Structure

Sprag type freewheel

Application

Backstop

Package

Wooden box or customized

Payment terms

TT, L/C, D/A, D/P, Western Union

Delivery time

5-7 days after order confirmed if no stock

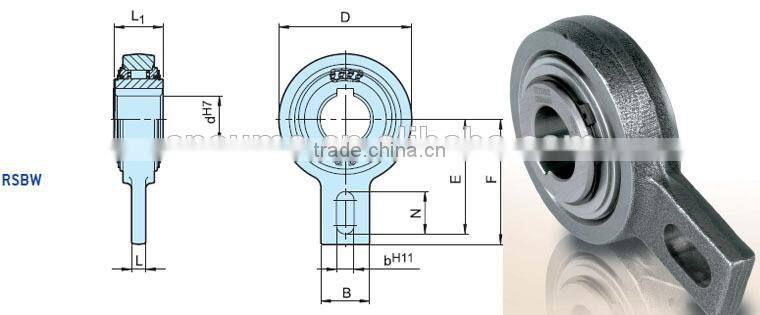

Catalogue of rsbw one way bearing for your choice

Backstop Clutch RSBW One Way Bearing for Kelp Machine

Type Size   Overrunning Speeds   Weight
RSBW dH7 TKN1) nimax D L 1 F E B N L bH11
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
20 375 400 106 35 113 102.5 40 35 15 18 2
25 606 400 106 48 113 102.5 40 35 15 18 2.6
30 606 400 106 48 113 102.5 40 35 15 18 2.5
35M  375 400 106 35 113 102.5 40 35 15 18 2
35 606 400 106 48 113 102.5 40 35 15 18 2.4
40 1295 300 132 52 125 115 60 35 15 18 4.6
45 1295 300 132 52 125 115 60 35 15 18 4.5
50 1295 300 132 52 125 115 60 35 15 18 4.5
55 1295 300 132 52 125 115 60 35 15 18 4.4
60 2550 250 161 54 140 130 70 35 15 18 6.5
70 2550 250 161 54 140 130 70 35 15 18 6.4
80 4875 200 190 70 165 150 70 45 20 25 9.9
90 4875 200 190 70 165 150 70 45 20 25 9.8

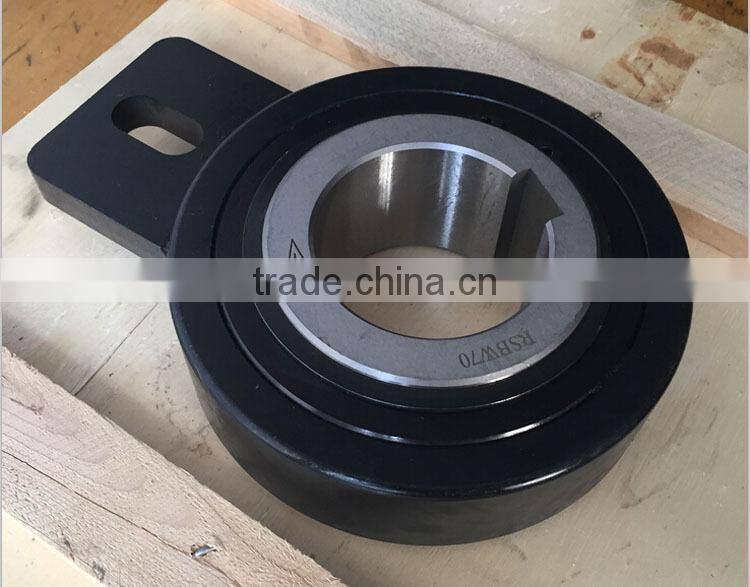

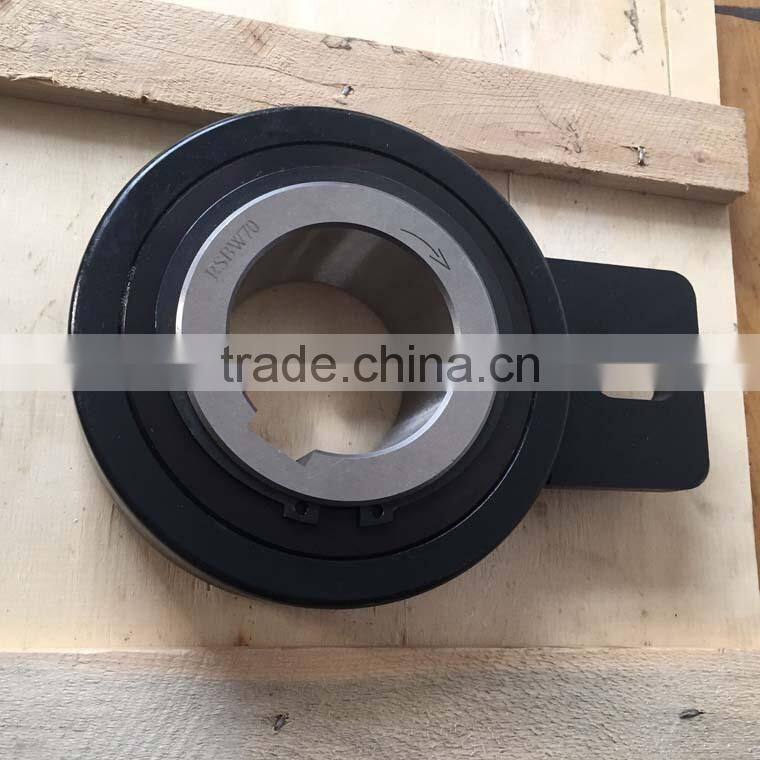

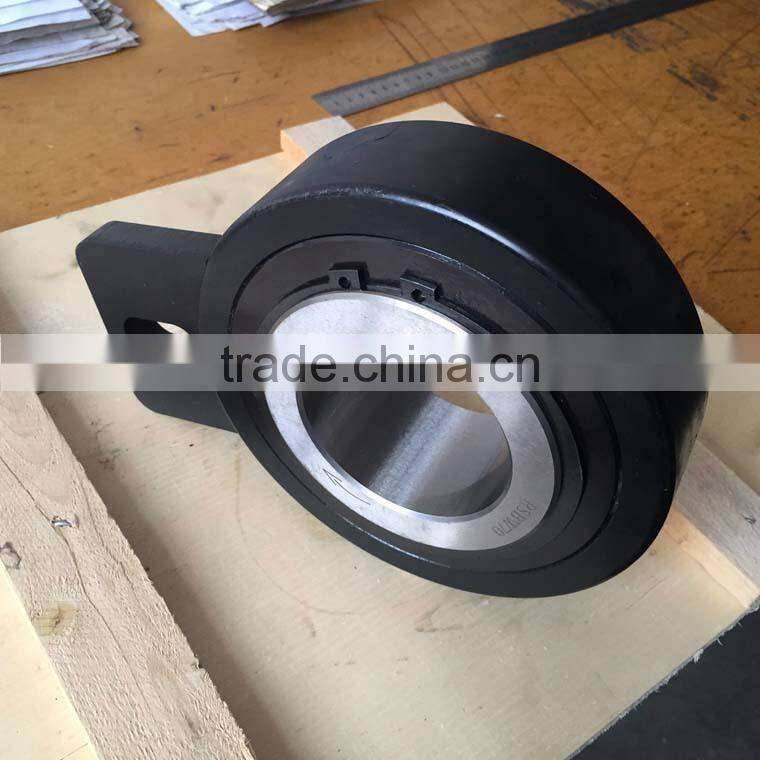

Detailed Images



Backstop Clutch RSBW One Way Bearing for Kelp MachineBackstop Clutch RSBW One Way Bearing for Kelp Machine

Backstop Clutch RSBW One Way Bearing for Kelp Machine



Company Information



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

Backstop Clutch RSBW One Way Bearing for Kelp Machine

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Factory Production

Backstop Clutch RSBW One Way Bearing for Kelp Machine

Backstop Clutch RSBW One Way Bearing for Kelp Machine

After-Sales Service



Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.



FAQ

Q: How do you pack the rsbw one way bearing?

A: Usually rsbw one way bearing are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of one way bearing from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver rsbw one way bearing in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.



Any needs, you are warmly welcomed to contact me at any time !
