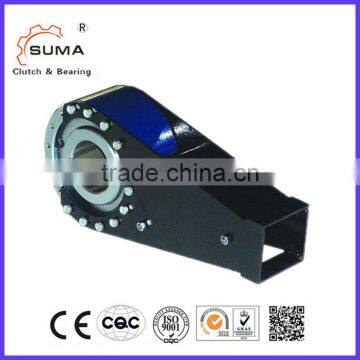

China Bearing Manufacturer RSBW AV NJ One Way Freewheel Clutch Release Bearing / Overrunning Clutch
US$ 100 - 600
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA of clutch release bearing
Bore Size:
20, 120
Outside Diameter:
83, 300
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo for Clutch Bearing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer in Changzhou One Direction Fxm290-96 Backstop Clutch BearingUS$ 30 - 1,000MOQ: 1 Piece -
RIZELG2 High Performance Coupling One Way Overrunning Clutch Bearing With SpragUS$ 10 - 100MOQ: 1 Piece
-
Overrunning Clutch One Way GFRN25 Cylindrical Roller BearingsUS$ 20 - 300MOQ: 1 Piece
-
One Way Bearing CSK35 Overrunning Clutch Sprag Type BackstopUS$ 3.5 - 50MOQ: 1 Piece
-
FWD CRB CRS Freewheel Bearing Motorcycle Starter Clutch With SpragsUS$ 9 - 15MOQ: 1 Piece
Brand Name
SUMA of clutch release bearing
Bore Size
20, 120
Outside Diameter
83, 300
Model Number
RSBW NJ AV of clutch release bearing
Precision Rating
P6
Seals Type
SEALED
Place of Origin
Jiangsu, China
China Bearing Manufacturer RSBW AV NJ Single Way Freewheel Clutch Release Bearing / Overrunning Clutch
Product Description
Features of Clutch Release Bearing
| Model | RSBW | AV | NJ(ND) |
| Bore diameter | 20-90mm | 20-120mm | 56-450mm |
| Outer diameter | 108-190mm | 83-300mm | 160-1090mm |
| Torque capacity | 375-4875Nm | 265-11000Nm | 4-250Nm |
| Overrunning speed | 15000-3000r/min | 5000-600r/min | 3300-230r/min |
| Structure | Sprag type | Roller type | Sprag type |
Parameter of RSBW Clutch Release Bearing
| Type | Size | Overrunning Speeds | Weight | |||||||||
| RSBW | dH7 | TKN1) | nimax | D | L 1 | F | E | B | N | L | bH11 | |
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 20 | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 25 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.6 | |
| 30 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.5 | |
| 35M | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 35 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.4 | |
| 40 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.6 | |
| 45 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 50 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 55 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.4 | |
| 60 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.5 | |
| 70 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.4 | |
| 80 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.9 | |
| 90 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.8 | |

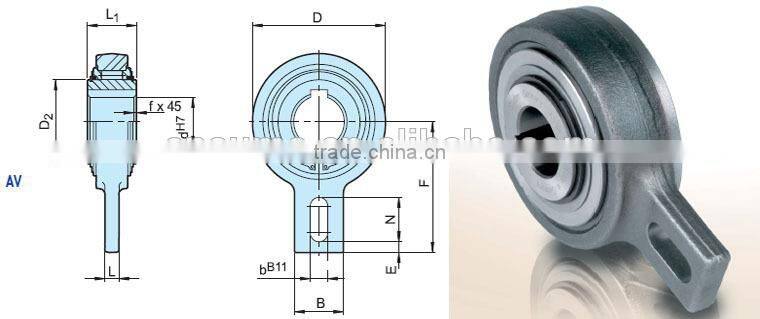

Parameter of AV Clutch Release Bearing
| Type | Size | Overrunning Speeds | Weight | ||||||||||
| AV | dH7 | TKN1) | nimax | D | D2 | L1 | L | B | N | E | bB11 | f | |
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 20 | 265 | 450 | 83 | 42 | 35 | 12 | 40 | 35 | 5 | 15 | 0.8 | 1.3 | |
| 25 | 365 | 450 | 83 | 42 | 35 | 12 | 40 | 35 | 5 | 15 | 0.8 | 1.3 | |
| 30 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 35 | 8 | 15 | 1 | 3.5 | |
| 35 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 35 | 8 | 15 | 1 | 3.4 | |
| 40 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 35 | 8 | 15 | 1 | 3.3 | |
| 45 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5.5 | |
| 50 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5.4 | |
| 55 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5.3 | |
| 60 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5.2 | |
| 70 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5 | |
| 80 | 2900 | 200 | 190 | 110 | 64 | 20 | 80 | 40 | 10 | 20 | 1.5 | 8.7 | |
| 90* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | - | - | - | 3 | 24.5 | |
| 100* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | - | - | - | 3 | 23.5 | |
| 110* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | - | - | - | 3 | 22.5 | |
| 120* | 11000 | 130 | 300 | 180 | 110 | 30 | 140 | - | - | - | 3 | 42 | |
Parameter of NJ ND Clutch Release Bearing
| Type | Load Capacity | Inner Race Max. Speed | Drag Torque | Bore | Size (mm) | Weight | ||||||||
| N.m | r/min | N.m | mm | A | B | D | H | h1 | h | L | L1 | kg | ||
| ND16 (NJ65) | 1600 | 150 | 4 | 50-65 | 50 | 6 | 160 | 226 | 16 | 13.5 | 30 | 85 | 106 | 13.5 |
| ND25 (NJ75) | 2500 | 5 | 60-75 | 65 | 170 | 269 | 19 | 16.5 | 35 | 16.1 | ||||
| ND60 (NJ85) | 6000 | 8 | 70-85 | 95 | 9 | 210 | 329 | 29 | 20.5 | 45 | 110 | 135 | 29.2 | |
| ND80 (NJ95) | 8000 | 10 | 80-95 | 105 | 230 | 382 | 32 | 55 | 138 | 37.2 | ||||
| ND110 (NJ110) | 11000 | 15 | 90-110 | 110 | 12 | 270 | 425 | 40 | 26 | 60 | 141 | 46.2 | ||
| ND160 (NJ130) | 16000 | 100 | 20 | 100-130 | 120 | 320 | 506 | 36 | 65 | 130 | 161 | 82.8 | ||
| ND250 (NJ160) | 25000 | 35 | 120-160 | 120 | 20 | 360 | 612 | 32 | 31 | 140 | 183 | 125 | ||
| ND380 (NJ200) | 38000 | 45 | 160-200 | 130 | 430 | 623 | 43 | 41 | 70 | 160 | 207 | 180 | ||
| ND500 (NJ220) | 50000 | 80 | 75 | 160-220 | 238 | 259 | 500 | 820 | 80 | - | - | 230 | 303 | 351 |
| ND650 (NJ230) | 65000 | 80 | 85 | 180-240 | 260 | 279 | 540 | 900 | 90 | - | - | 250 | 323 | 525 |
| ND900 (NJ250) | 90000 | 50 | 95 | 180-250 | 288 | 323 | 600 | 1000 | 100 | - | - | 290 | 367 | 675 |
| ND1250 (NJ270) | 125000 | 100 | 200-270 | 298 | - | 650 | 1100 | 110 | - | - | 737 | |||
| ND1800 (NJ300) | 180000 | 110 | 230-300 | 356 | 335 | 780 | 1300 | 135 | - | - | 290 | 392 | 1123 | |
| ND2700 (NJ320) | 270000 | 140 | 250-320 | 386 | 345 | 850 | 1500 | 135 | - | - | 320 | 412 | 1425 | |
| ND3200 (NJ350) | 320000 | 160 | 250-350 | 414 | 360 | 930 | 1600 | 135 | - | - | 360 | 426 | 1955 | |
| ND5200 (NJ420) | 520000 | 220 | 320-420 | 474 | 484 | 1030 | 1800 | 165 | - | - | 450 | 550 | 2930 | |
| ND7000 (NJ450) | 700000 | 250 | 350-450 | 526 | 494 | 1090 | 2000 | 165 | - | - | 480 | 574 | 3380 | |
Detailed Images

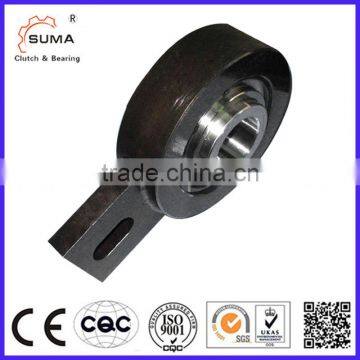

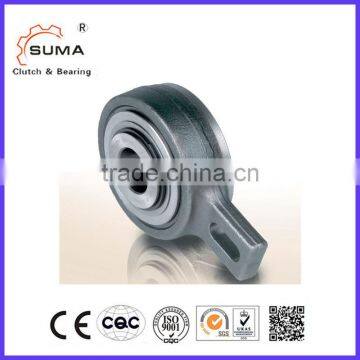

RSBW

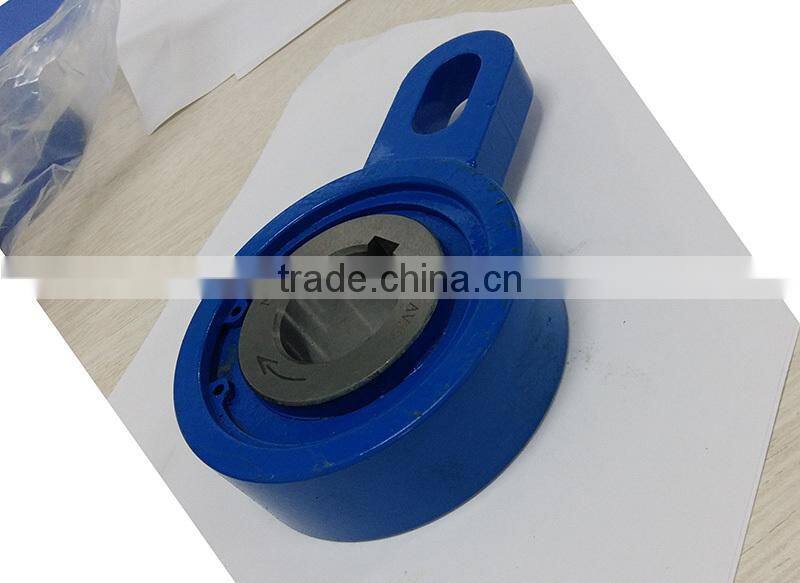

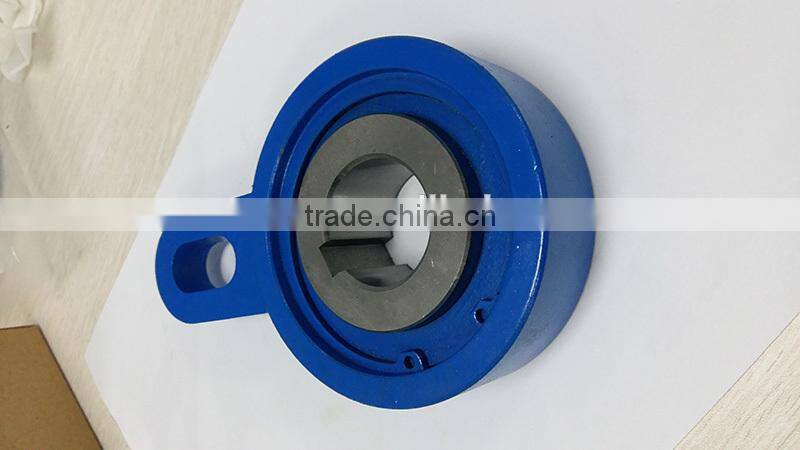

AV

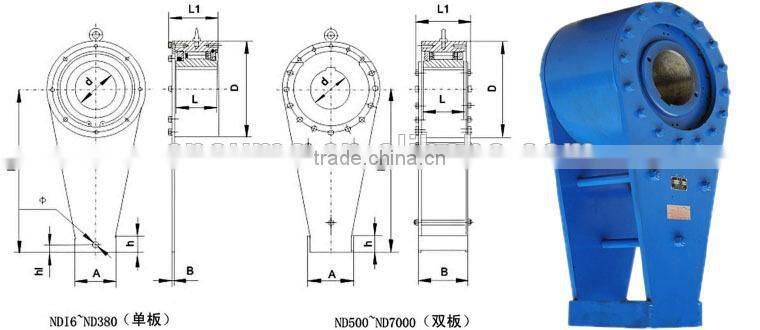

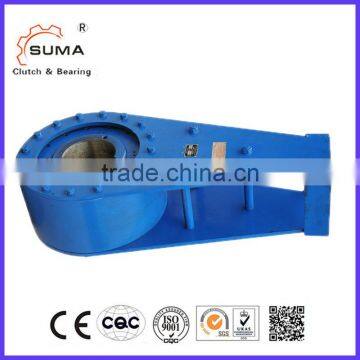

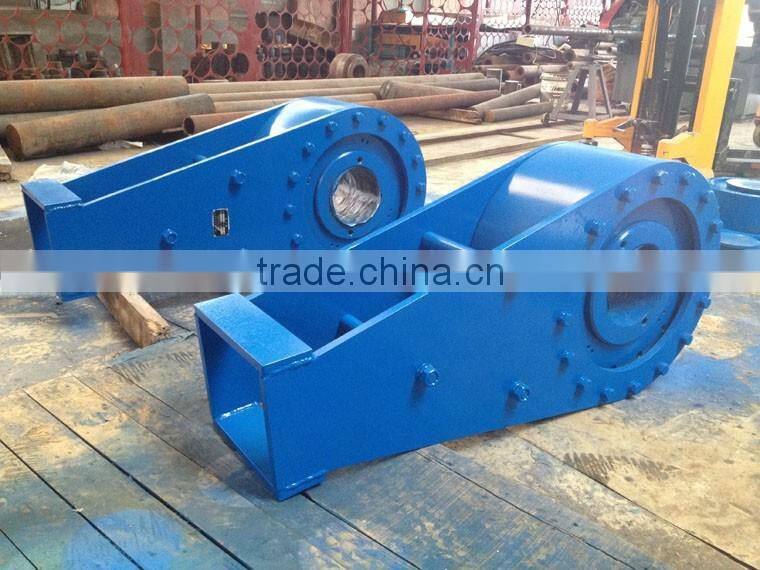

NJ / ND
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

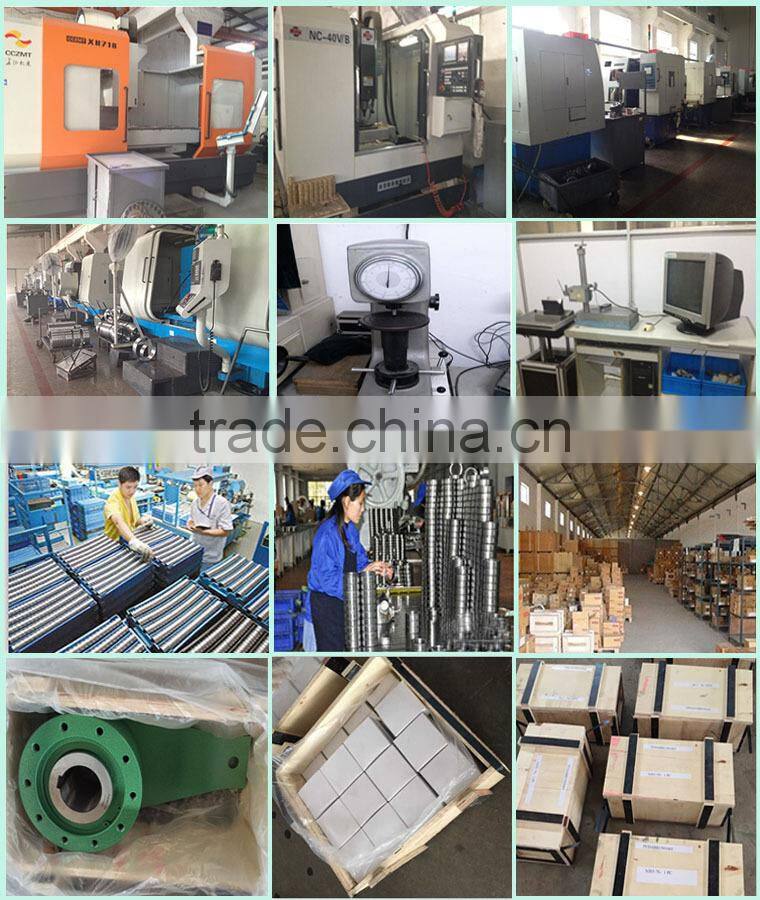

Factory Production
After-Sales Service
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
FAQ
Q: How do you pack the clutch release bearing ?
A: Usually clutch release bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the clutch release bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the clutch release bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
