RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing RSXM101

RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing RSXM101 thumbnail-1
RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing RSXM101 photo-1
US$ 30 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA
Bore Size:
20,
Outside Diameter:
85,
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo for reducer bearing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA
Bore Size 20,
Outside Diameter 85,
Model Number RSXM of reducer bearing
Precision Rating P6
Seals Type sealed
Place of Origin Jiangsu, China

RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing  RSXM101

Product Description

Features of rsxm reducer bearing

The series RSXM completes teh small to medium backstop range, which commenced with the highly successful RSCI programme.

Type RSXM is a centrifugal lift off sprag type freewheel with the inner race rotating. Only the inner race is designed for freewheeling. It is a non self-supported type.



Product name

industrial centrifugal clutch

Model

RSXM101

Material

GCr15

Torque capacity

1950Nm

Inner diameter

70mm

Outer diameter

175mm

Thickness

50mm

Weight

7.3kg

Structure

Sprag type

Application

SEW reducer

Package

Wooden box or customizable

Payment terms

TT. L/C, D/A,D/P, Western Union, Paypal

Delivery time

5-7 days after order confirmed


RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing RSXM101



Type Bore dia. Torque Overrunning speeds
RSXM dH7 TKN nmax nimin nimax D5) D1h6 D2H7 D3 D4 z L I I1 tmin dmin Weight
[mm] [Nm] [min-1 ] [mi-1 ] [min-1 ] [mm] [mm] [mm] [mm]     [mm] [mm] [mm] [mm] [mm] [kg]
31  20  100  340  820  20000  85  31  55  70  M6 6  24  25  17  1  41  0.75
38  20.25 135  320  770  18500  90  38  62  75  M6 6  24  25  17  1  50  0.95
46  25.3 425  300  720  13500  95  46  70  82  M6 6  35  35  25  1  53  1.4
51  30.35 525  220  525  12500  105  51  75  90  M6 6  35  35  25  1  62  1.8
56  35.4 625  210  500  11500  110  56  80  96  M6 8  35  35  25  1  70  1.8
61  35.4 420  265  640  14000  120  61  85  105  M8 6  25  27  17  2  73  1.8
66  35.40.45 850  200  480  10000  132  66  90  115  M8 8  35  35  25  1  78  2.7
76  40.45.50 1100  190  460  9000  140  76  100  125  M8 8  35  35  25  1  90  3.1
86  45.5 1450  180  440  8000  150  86  110  132  M8 8  40  40  25  1  100  4.2
101  45.55.60.70 1950  175  420  6500  175  101  125  155  M10 8  50  50  25  1  117  7.3
Detailed Images



RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing RSXM101

RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing RSXM101

RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing RSXM101

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing RSXM101

 We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

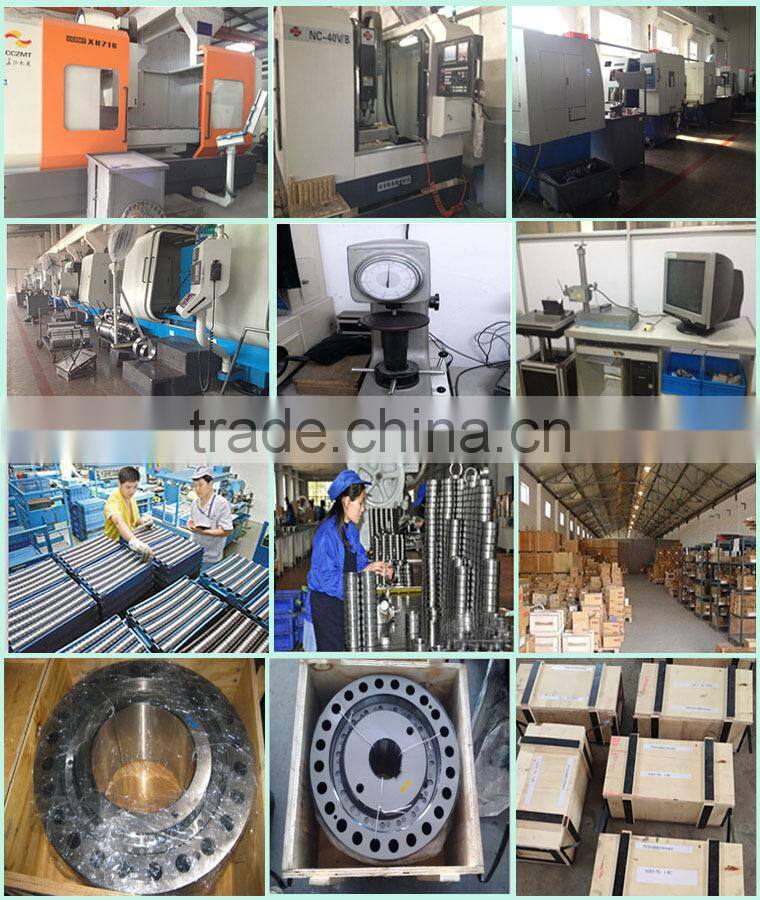

Production and Test

RSXM 101 Sprag Type One Way Clutch Backstop Reducer Bearing RSXM101

After-Sales Service

Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: How do you pack the rsxm reducer bearing ?

A: Usually rsxm reducer bearing for sale are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of one way reducer bearing from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the rsxm reducer bearing in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
