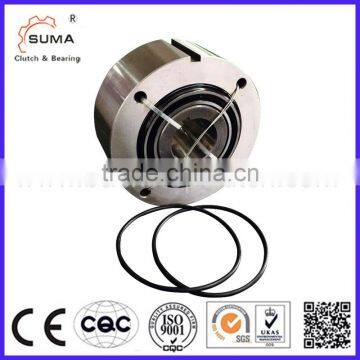

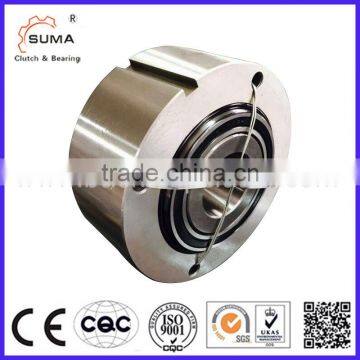

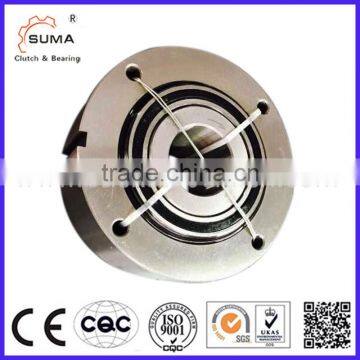

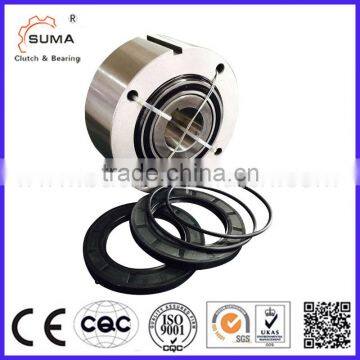

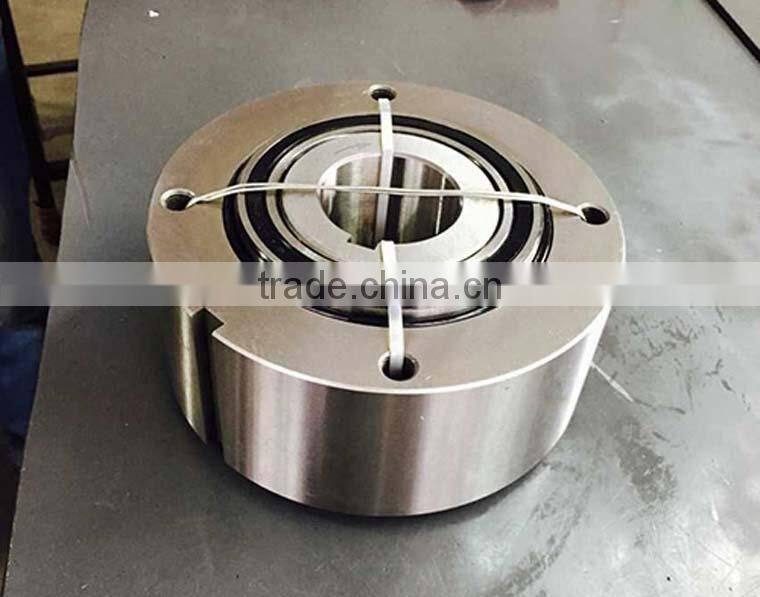

Overrunning clutch one way GFRN25 cylindrical roller bearings
Features of cylindrical roller bearings
Types GFR, GFRN are identical except that type GFRN has a keyway on the outside diameter to transmit the torque.
They are roller type freewheel, bearing supported.
Product name | cylindrical roller bearings |
Model | GFRN25 |
Material | GCr15 |
Precision | P6 |
Inner diameter | 25mm |
Outer diameter | 90mm |
Material | GCr15 |
Torque capacity | 288Nm |
Weight | 1.5kg |
Structure | Roller type with bearing supported |
Application | Elevator, Textile machine, forging machine, etc |
Package | Wooden box |
Payment terms | TT. L/C, D/A,D/P,Western Union |
Delivery time | 2-4 days for the sample, 7 days for big order |
INTRODUCTION of cylindrical roller bearings

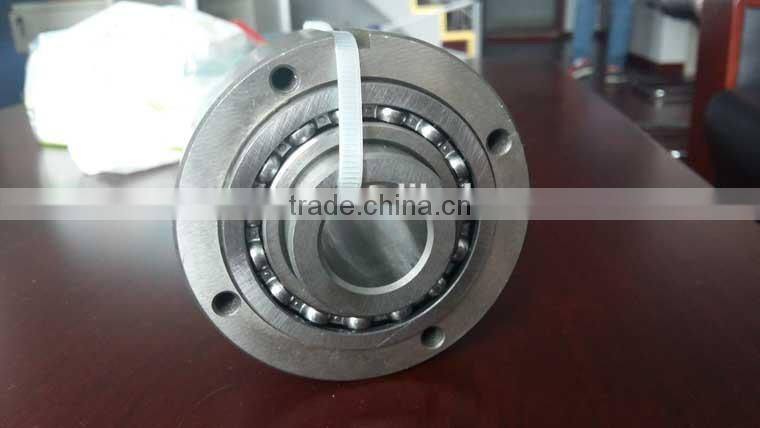

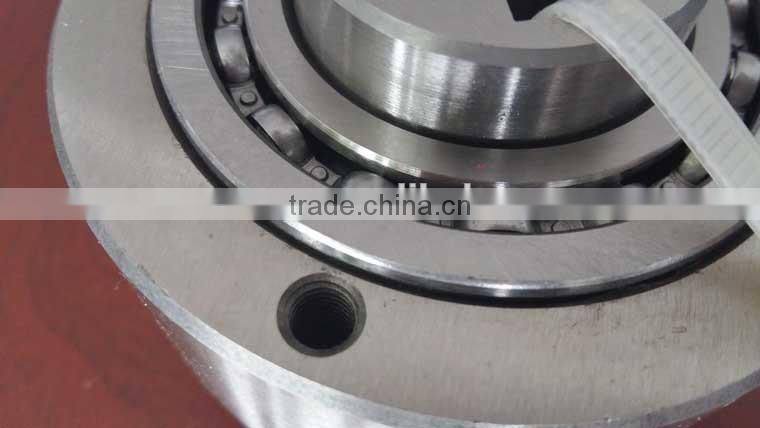

Types GFR,GFRN are roller type freewheels. They are bearing supported, using two 160.. series bearings, and require oil lubrication. These units may be used in designs providing oil lubrication and sealing as on the example overleaf. The bearings must not be axially stressed.
PARAMETER LIST of cylindrical roller bearings
| Type | Size | Overrunning | Number | Weight | ||||||||||||||
| speeds | ||||||||||||||||||
| dH7 | TKN1) | nimax2) | namax3) | Dh7 | D2 | D4 | D3 | G | t | z | L1 | L | B | t1 | bP10 | f | ||
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |||
| 12* | 55 | 4000 | 7200 | 62 | 20 | 42 | 51 | ø5.5 | – | 3 | 42 | 20 | 27 | 2.5 | 4 | 0.5 | 0.5 | |
| 15 | 125 | 3600 | 6500 | 68 | 25 | 47 | 56 | M5 | 8 | 3 | 52 | 28 | 32 | 3 | 5 | 0.8 | 0.8 | |
| 20 | 181 | 2700 | 5600 | 75 | 30 | 55 | 64 | M5 | 8 | 4 | 57 | 34 | 39 | 3.5 | 6 | 0.8 | 1 | |
| 25 | 288 | 2100 | 4500 | 90 | 40 | 68 | 78 | M6 | 10 | 4 | 60 | 35 | 40 | 4 | 8 | 1 | 1.5 | |
| 30 | 500 | 1700 | 4100 | 100 | 45 | 75 | 87 | M6 | 10 | 6 | 68 | 43 | 48 | 4 | 8 | 1 | 2.2 | |
| 35 | 725 | 1550 | 3800 | 110 | 50 | 80 | 96 | M6 | 12 | 6 | 74 | 45 | 51 | 5 | 10 | 1 | 3 | |
| 40 | 1025 | 1150 | 3400 | 125 | 55 | 90 | 108 | M8 | 14 | 6 | 86 | 53 | 59 | 5 | 12 | 1.5 | 4.6 | |
| GFR | 45 | 1125 | 1000 | 3200 | 130 | 60 | 95 | 112 | M8 | 14 | 8 | 86 | 53 | 59 | 5.5 | 14 | 1.5 | 4.7 |
| GFRN | 50 | 2125 | 800 | 2800 | 150 | 70 | 110 | 132 | M8 | 14 | 8 | 94 | 64 | 72 | 5.5 | 14 | 1.5 | 7.2 |
| 55 | 2625 | 750 | 2650 | 160 | 75 | 115 | 138 | M10 | 16 | 8 | 104 | 66 | 72 | 6 | 16 | 2 | 8.6 | |
| 60 | 3500 | 650 | 2450 | 170 | 80 | 125 | 150 | M10 | 16 | 10 | 114 | 78 | 89 | 7 | 18 | 2 | 10.5 | |
| 70 | 5750 | 550 | 2150 | 190 | 90 | 140 | 165 | M10 | 16 | 10 | 134 | 95 | 108 | 7.5 | 20 | 2.5 | 13.5 | |
| 80 | 8500 | 500 | 1900 | 210 | 105 | 160 | 185 | M10 | 16 | 10 | 144 | 100 | 108 | 9 | 22 | 2.5 | 18.2 | |
| 90 | 14500 | 450 | 1700 | 230 | 120 | 180 | 206 | M12 | 20 | 10 | 158 | 115 | 125 | 9 | 25 | 3 | 28.5 | |
| 100 | 20000 | 350 | 1450 | 270 | 140 | 210 | 240 | M16 | 24 | 10 | 182 | 120 | 131 | 10 | 28 | 3 | 42.5 | |
| 130 | 31250 | 250 | 1250 | 310 | 160 | 240 | 278 | M16 | 24 | 12 | 212 | 152 | 168 | 11 | 32 | 3 | 65 | |
| 150 | 70000 | 200 | 980 | 400 | 200 | 310 | 360 | M20 | 32 | 12 | 246 | 180 | 194 | 12 | 36 | 4 | 138 | |
NOTES
1) T max = 2 × T KN
2) Inner race overruns. Values without radial lip seals
3) Outer race overruns. Values without radial lip seals
Keyway to DIN 6885.1
*) GFR12 has through holes in outer race

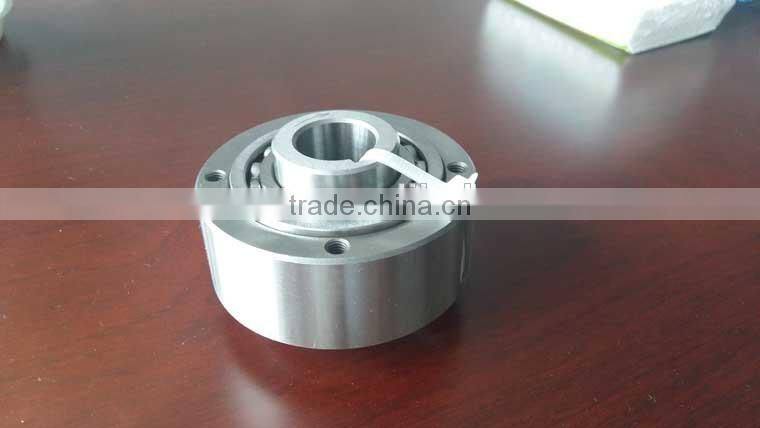

GFRN with keyway
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack cylindrical roller bearings ?

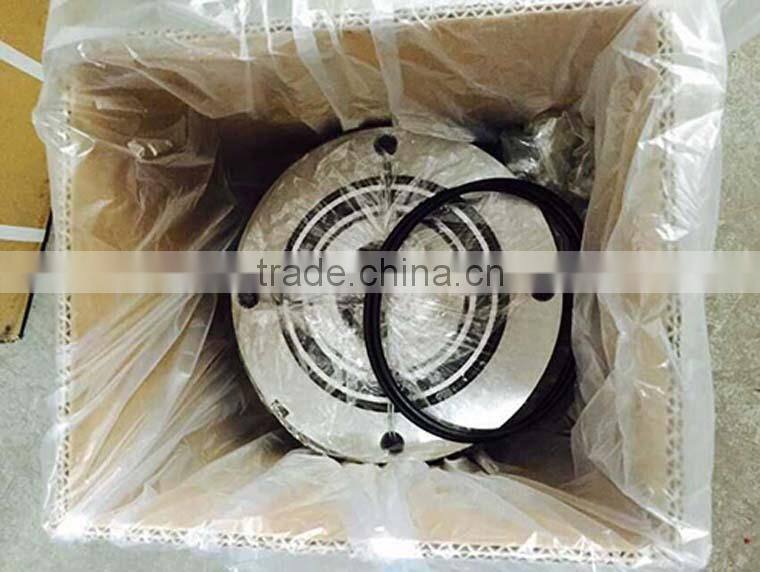

A: Usually cylindrical roller bearings are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of cylindrical roller bearings from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the cylindrical roller bearings in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
