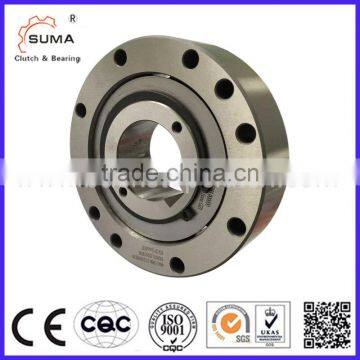

Manufacturer in changzhou one direction fxm290-96 backstop clutch bearing
Features of FXM290-60 backstop clutch bearing
Structure: FXM is a integrated sprag freewheels. It is equipped with sprag lift off X. The lift off X is used for backstop and overrunning clutches.
Lubrication: no special lubrication is required.
Product name |
fxm backstop clutch bearing |
Model |
FXM290-96 |
Material |
GCr15 |
Precision |
P6 |
Height |
110mm |
Thickness |
110mm |
Outer diameter |
460mm |
Inner diameter |
230mm |
Weight |
91kg |
Structure |
Integrated sprag freewheel one way |
Application |
Backstop, overrunning clutch |
Package |
Wooden box, pulley, etc |
Payment terms |
TT. L/C, D/A,D/P,Western Union |
Delivery time |
2-4 days for the sample, 7 days for big order |

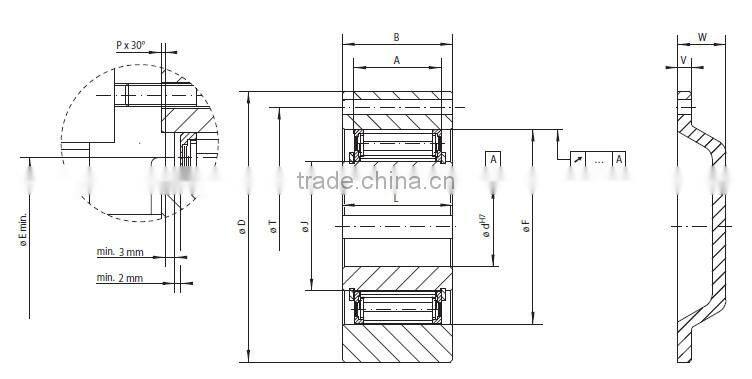

Catalogue of fxm backstop clutch bearing for your choice
| Bore d | A | B | D | E | F | G | J | L | P | T | U | V | W | Z** | Weight | |||||||
| Type | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | ||
| FXM 31 -17 | 20* | 20* | 17 | 25 | 85 | 41 | 55 | M6 | 31 | 24 | 1,0 | 70 | 15 | 6 | 21 | 6 | 0,8 | |||||
| FXM 38 -17 | 25* | 25* | 17 | 25 | 90 | 48 | 62 | M6 | 38 | 24 | 1,0 | 75 | 15 | 6 | 21 | 6 | 0,9 | |||||
| FXM 46 -25 | 25 | 30 | 25 | 35 | 95 | 56 | 70 | M6 | 46 | 35 | 1,0 | 82 | 15 | 6 | 21 | 6 | 1,3 | |||||
| FXM 51 -25 | 25 | 30 | 35 | 36 | 25 | 35 | 105 | 62 | 75 | M6 | 51 | 35 | 1,0 | 90 | 15 | 6 | 21 | 6 | 1,7 | |||
| FXM 56 -25 | 35 | 40 | 25 | 35 | 110 | 66 | 80 | M6 | 56 | 35 | 1,0 | 96 | 15 | 6 | 21 | 8 | 1,8 | |||||
| FXM 61 -19 | 30 | 35 | 40 | 45* | 19 | 27 | 120 | 74 | 85 | M8 | 61 | 25 | 1,0 | 105 | 15 | 6 | 21 | 6 | 1,8 | |||
| FXM 66 -25 | 35 | 40 | 45 | 48* | 25 | 35 | 132 | 82 | 90 | M8 | 66 | 35 | 1,0 | 115 | 15 | 8 | 23 | 8 | 2,8 | |||
| FXM 76 -25 | 45 | 55 | 60* | 25 | 35 | 140 | 92 | 100 | M8 | 76 | 35 | 1,0 | 125 | 15 | 8 | 23 | 8 | 3,1 | ||||
| FXM 86 -25 | 40 | 45 | 50 | 60 | 65 | 70* | 25 | 40 | 150 | 102 | 110 | M8 | 86 | 40 | 1,0 | 132 | 15 | 8 | 23 | 8 | 4,2 | |
| FXM 101 -25 | 55 | 70 | 80* | 25 | 50 | 175 | 117 | 125 | M10 | 101 | 50 | 1,0 | 155 | 20 | 8 | 28 | 8 | 6,9 | ||||
| FXM 85 -40 | 45 | 50 | 60 | 65 | 65 | 40 | 50 | 175 | 102 | 125 | M10 | 85 | 60 | 1,0 | 155 | 20 | 8 | 28 | 8 | 7,4 | ||
| FXM 100 -40 | 45 | 50 | 55 | 60 | 70 | 75 | 80* | 40 | 50 | 190 | 130 | 140 | M10 | 100 | 60 | 1,5 | 165 | 25 | 10 | 35 | 12 | 8,8 |
| FXM 120 -50 | 60 | 65 | 70 | 75 | 80 | 95 | 95 | 50 | 60 | 210 | 150 | 160 | M10 | 120 | 70 | 1,5 | 185 | 25 | 10 | 35 | 12 | 12,7 |
| FXM 140 -50 | 65 | 90 | 100 | 110 | 110 | 50 | 70 | 245 | 170 | 180 | M12 | 140 | 70 | 2,0 | 218 | 25 | 12 | 35 | 12 | 19,8 | ||
| FXM 170 -63 | 70 | 85 | 90 | 100 | 120 | 130 | 63 | 80 | 290 | 200 | 210 | M16 | 170 | 80 | 2,0 | 258 | 28 | 12 | 38 | 12 | 33,0 | |
| FXM 200 -63 | 130 | 155 | 63 | 80 | 310 | 230 | 240 | M16 | 200 | 80 | 2,0 | 278 | 32 | 12 | 42 | 12 | 32,0 | |||||
| FXM 240 - 63 | 185 | 63 | 80 | 400 | 280 | 310 | M20 | 240 | 90 | 2,0 | 360 | 48 | 15 | 60 | 12 | 60,0 | ||||||
| FXM 240 - 96 | 185 | 96 | 125 | 420 | 280 | 310 | M24 | 240 | 120 | 2,0 | 370 | 48 | 18 | 60 | 16 | 95,0 | ||||||
| FXM 260 - 63 | 205 | 63 | 80 | 430 | 300 | 330 | M20 | 260 | 105 | 2,0 | 380 | 48 | 18 | 60 | 16 | 75,0 | ||||||
| FXM 290 - 70 | 230 | 70 | 80 | 460 | 330 | 360 | M20 | 290 | 105 | 2,0 | 410 | 48 | 18 | 60 | 16 | 90,0 | ||||||
| FXM 290 - 96 | 230 | 96 | 110 | 460 | 330 | 360 | M20 | 290 | 120 | 2,0 | 410 | 48 | 18 | 60 | 16 | 91,0 | ||||||
| FXM 310 - 70 | 240 | 70 | 125 | 497 | 360 | 380 | M20 | 310 | 110 | 3,0 | 450 | 48 | 18 | 60 | 24 | 135,0 | ||||||
| FXM 310 - 96 | 240 | 96 | 125 | 497 | 360 | 380 | M20 | 310 | 120 | 3,0 | 450 | 48 | 18 | 60 | 24 | 145,0 | ||||||
| FXM 320 - 70 | 250 | 70 | 80 | 490 | 360 | 390 | M24 | 320 | 105 | 3,0 | 440 | 55 | 20 | 68 | 16 | 105,0 | ||||||
| FXM 360 - 100 | 280 | 100 | 120 | 540 | 400 | 430 | M24 | 360 | 125 | 3,0 | 500 | 55 | 20 | 68 | 24 | 170,0 | ||||||
| FXM 410 - 100 | 320 | 100 | 120 | 630 | 460 | 480 | M24 | 410 | 125 | 3,0 | 560 | 55 | 20 | 68 | 24 | 245,0 | ||||||
| FXM 2410 - 100 | 320 | 200 | 220 | 630 | 460 | 480 | M30 | 410 | 220 | 3,0 | 560 | 55 | 20 | 68 | 24 | 440,0 | ||||||
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the fxm backstop clutch bearing?
A: Usually fxm backstop clutch bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of fxm backstop clutch bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver fxm backstop clutch bearing ?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, you are warmly welcomed to contact me at any time !
