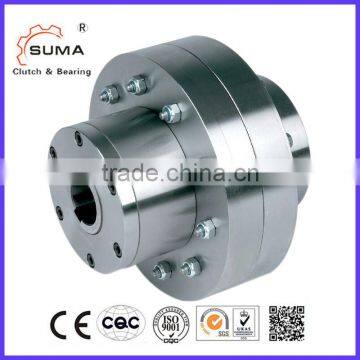

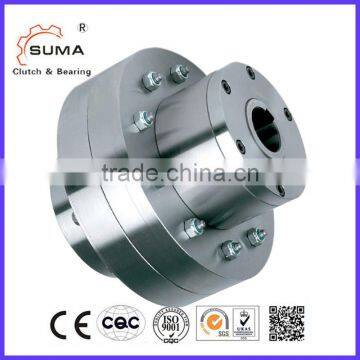

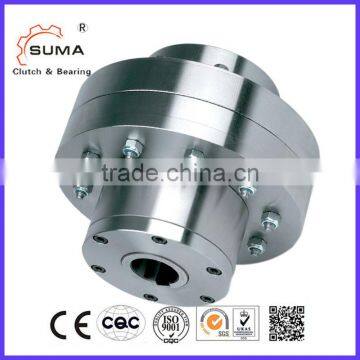

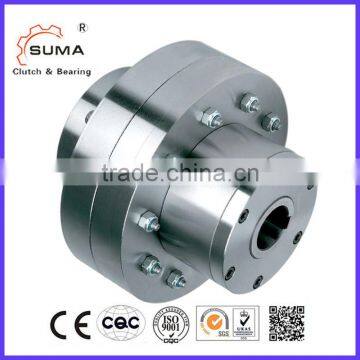

RIZELG2 High Performance Coupling One Way Overrunning Clutch Bearing with Sprags
Structure of RIZ one way overrunning clutch bearing :
Types RIZ..ESG2 is a centrifugal lift off sprag type freewheels with the inner race rotating. Only the inner race is designed for freewheeling.
These are self-contained units designed for overrunning clutch applications.
The EL type is a high performance coupling used to damp torsional vibrations and to accept misalignment without excess bearing load.
Available Shaft Diameter: 30-130mm
| Specification |
|
| Model | RIZ ELG2 80 |
| Materail |
GCr15 |
| Shaft Diameter |
80mm |
| Outer diameter |
290mm |
| Height |
309mm |
| Torque capacity |
5000Nm |
| Max Torque transimission speed |
155r/min |
| Inner race overrunning | 4000r/min |
| Application | Overrunning , Crawl drives |
| Package | Carton package / Wooden package |
| Delivery time | 5-7 days |
| Payment terms | TT, L/C, D/P, D/A, Western Union, Paypal |
Catalogue of riz one way overrunning clutch for your choice
| Type | Size | Speeds | Weight | |||||||||||
| dH7 | EL | TKN1) | nmax2) | nimin3) | nimax4) | dk1H7 | D | D6 | L1 | L6 | L8 | b | G1 | |
| [mm] | [Nm] | [min-1] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| 30 | 5 | 375 | 290 | 700 | 9000 | 22…55 | 100 | 160 | 68 | 60 | 147.5 | 19.5 | 11 | |
| 35 | 6 | 550 | 280 | 670 | 8500 | 25…75 | 110 | 190 | 74 | 75 | 166.5 | 17.5 | 17 | |
| 40 | 6 | 800 | 260 | 630 | 7500 | 25…75 | 125 | 190 | 86 | 75 | 176.5 | 15.5 | 19 | |
| 45 | 6 | 912 | 255 | 610 | 6700 | 25…75 | 130 | 190 | 86 | 75 | 176.5 | 15.5 | 19 | |
| 50 | 7 | 1400 | 235 | 560 | 6000 | 30…85 | 150 | 225 | 94 | 90 | 208.5 | 24.5 | 31 | |
| 60 | 8 | 2350 | 210 | 510 | 5300 | 35…100 | 170 | 270 | 114 | 100 | 244 | 30 | 49 | |
| RIZ | 70 | 10 | 3050 | 195 | 470 | 4000 | 45…120 | 190 | 340 | 134 | 140 | 312.5 | 38.5 | 90 |
| ELG2 | 80 | 11 | 5800 | 155 | 375 | 4000 | 55…145 | 210 | 380 | 144 | 160 | 340 | 36 | 107 |
| 90 | 12 | 8700 | 145 | 350 | 3000 | 65…165 | 230 | 440 | 158 | 180 | 388 | 50 | 170 | |
| 100 | 14 | 16000 | 140 | 340 | 2400 | 75…170 | 270 | 500 | 182 | 200 | 422.5 | 40.5 | 230 | |
| 130 | 16 | 23000 | 130 | 320 | 2400 | 85…180 | 310 | 560 | 212 | 220 | 482 | 50 | 330 | |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the riz one way overrunning clutch bearing ?
A: Usually riz one way overrunning clutch bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of riz one way overrunning clutch bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the riz one way overrunning clutch bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
