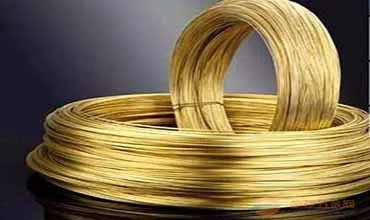

Sell BSH30** 0.3mm EDM Brass Wire

Sell BSH30** 0.3mm EDM Brass Wire photo-1
Sell BSH30** 0.3mm EDM Brass Wire photo-2
Sell BSH30** 0.3mm EDM Brass Wire photo-3
US$ 8.25 - 9.2 MOQ: 300 Kilograms
Key Specifications
Get Latest Price
Brand Name:
BASHAN
Place of Origin:
China
Model Number:
BSH30**
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin,qingdao
Delivery Detail:
7 days
Brand Name BASHAN
Place of Origin China
Model Number BSH30**
Type Brass Wire
Application used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi, Makino
Ultimate Strength (≥ MPa) 380-420
Alloy Or Not Is Alloy
Grade BSH1503
Wire Gauge 0.3mm
Cu (Min) 66.4%-83%
Products Show

Features of Sell BSH30** 0.3mm EDM Brass Wire.

1.High dimensional accuracy.
2.Diameter tolerance is kept to ±0.001mm.
3.Outstanding straightness.
4.We test each spool for curling and torsion and pride ourselves on the stable automatic wire threading performance or our product.
5.Stable mechanical properties.
6.Tensile strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
7.Ultra-smooth surface.

Product Description
 The description of Sell BSH30** 0.3mm EDM Brass Wire.

1. Grade: Cu/Zn
2.Model Number:BSH30**
3. Alloy Or Not:Is Alloy
4. Place of Origin:henan,China
5. Certification: Passed ISO9001:2008 quality certificate
Passed ISO/TS16949:2009 certificate
Passed GJB9001A-2001 military quality certificate.
6.Brand Name:Bashan


 Sell BSH30** 0.3mm EDM Brass Wire.

Product Name
Sell BSH30** 0.3mm EDM Brass Wire
Material
 Material : CuZn35,CuZn37,CuZn40
            specification
BSH30**
 Wire diameter
0.3mm
Weight/Spool
Weight/Spool:3kg/5kg/7kg/15kg/20kg
Tensile strength:
above 980Mpa
Packing
Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance.
Used
used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi, Makino

Sell BSH30** 0.3mm EDM Brass Wire.

Condition
Diameter(mm)
Tolerance(mm)
Tensile Strength (N/mm²)
Type of Spool
(Standard Weight)
       Hard
0.10
±0.001
≥980
DIN125(3kg,3.5kg
0.15
±0.001
≥980
0.20
±0.001
≥980
DIN125(3kg,3.5kg)

p5(5kg)

DIN160(7kg,8kg)

DIN200(15kg,16kg)
0.25
±0.001
≥980
0.30
±0.001
≥980
    Semi-hard
0.25
±0.001
480~520
0.30
±0.001
         Soft
0.25
±0.001
380~420
0.30
±0.001
Because the space is limited , We Only listed a few specifications of EDM brass wire . if you want to learn more,Welcome to  contact me any time
Reliable Raw Materials

Good and reliable raw material is the most important factor of producing excellent EDM brass wire. Bashan company use good raw materials from well-known iron manufacturers at home and abroad. Ugitech in France, Hikari Works in Japan, Tisco in China, D&B Special Steel in China, Ruipu in China, etc.

Our Company

Xinxiang Bashan Aero Material Co., Ltd.

In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)

Certifications

1)Passed ISO9001:2008 quality certificate

2)Passed ISO/TS16949:2009 certificate

3)Passed GJB9001A-2001 military quality certificate.

4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93

The main market of Sell BSH30** 0.3mm EDM Brass Wire.
