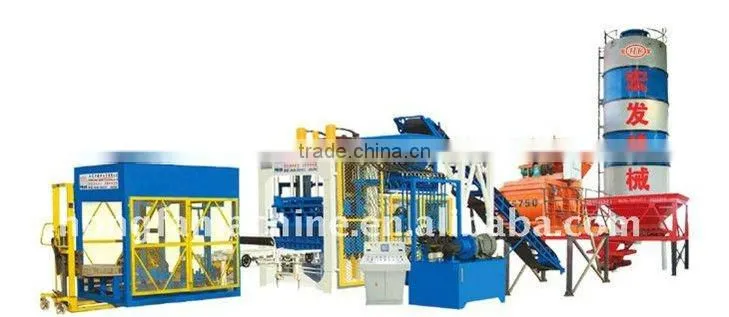

qt8-15b blockmachine QT8-15B automatic cement block production line

Specifications

qt8-15bblockmachine QT8-15B automatic cement block production line 1controlled by PLC2Electric and hydraulic system

qt8-15b blockmachine QT8-15B automatic cement block production line

call: 0086 13969983506

( We have QT4-26 / QT4-20 / QT4-15 / QT5-15 / QT6-15 / QT8-15 / QT10-15 / QT12-15 types  )



 Shandong Hongfa as the top manufacturer for aerated autoclaved concrete block making machine (AAC) , concrete bricks&blocks making machine with over 20 years experience has four branches in China , We win customers at home and abroad by strong quality and unbeatable service with competitive price , we have exported our products toover 120 countries .



We win customers by strong quality ,  unbeatable service and competitive price!

Let me show you QT8-15B type :

qt8-15b blockmachine QT8-15B automatic cement block production line

Breif information:

1.The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks ,square bricks ,grassed bricks and so on with different moulds.
2.Low frequency in feeding material, high frequency vibration. Platform vibrating works together with mould, So that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density.
3.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely,therefore ,different materials can be able to produce the high quality products.
4.All the procedures are operated by PLC and equipment with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system.

qt8-15b blockmachine QT8-15B automatic cement block production line

(1) Productivity

Item	Specification size	Quantity per mold	Cycle molding	Per hour	Per day
Hollow brick	400*200*200	8pcs	15-20s	1440pcs	14400pcs/day
Porous brick	400*150*200	9pcs	15-20s	1620pcs	16200pcs/day
Color  brick	225*112.5*60	20pcs	15-25s	3600pcs	36000pcs/day



(2) Main Technical Parameter

Dimension	7520*2040*2960mm
Rated     pressure	21MPa
Main vibration	platform
Vibration frequency	2800-4500r /min
Molding  Cycle	15-25(s)
Overall Power	40.58kw
Pallet Size	1100*680mm
Raw Materials	Crushed stone, sand, cement, dust and coal fly ash, cinder, slag,  gangue, gravel, and other industrial wastes.
Applied Products	concrete blocks, solid/hollow/cellular masonry products, paving  stones with or without face mix, garden and landscaping products, s labs,  curbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields	widely used in buildings, road pavers, gardens, landscaping, city  constructions.



qt8-15b blockmachine QT8-15B automatic cement block production line

Brick samples :



qt8-15b blockmachine QT8-15B automatic cement block production line

Production line design :

QT8-15B major block machine is an automatic type , the production line can be designed by your ideas and local situation .

The support equipments can be chosen in each section to make production line according to your exact need.

<< material store , batching , mixing section >>

1,cement silo 50T or 100T

2,cement and water scale

3,Screw conveyor

4,batching machine PLD1200

5,conveyor belt 8m

6,JS750mixer

<< Block molding section >>

1,QT8-15B block machine

2,mould

3,Pallets

<<Second materal feeding section for color paver or curbstone>>

1,Second material feeding machine

2,mixer for second material

3,conveyor belt for second material

<< Finished blocks transfering section >>

1,Stacker

2,forklift or fully automatic finger cart

<< Blocks curing section >>

curing in the sun or in the curing room by boiler

Simpel production line:

kind one :

1,Major QT8-15B block machine

2,JS750mixer

3,8m conveyor belt

4,Pallets

Kind two:

1,Batching machine PLD1200

2,JS750mixer

3,8m conveyor belt

4,Major QT8-15B block machine

5,Stacker

6,manual forklift

7,Pallets

If you like to share you opinion , i can help you make a design .



qt8-15b blockmachine QT8-15B automatic cement block production line

Land and labour need :

Needs 5-6 labour from mixing and transfering finished blocks , the working aera needs 200m2 for simple production line , the raw material store and finised blocks store depends on the local situation .

Service :

We can give one year warranty time for free service , in the period , we can send our engineer to customers place for installaion and training . For any help in the machine whole using life , you can feel free to contact with our after sale deparment for 24 hours.

1.Delivery time:within 30 days after receipt of the deposit

2.payment:30% advance payment by T/T, the balance payment by T/T or L/C.

3.Warranty: 1 year.

4.Spare parts: 1 set of the spare parts and 1set of the tools.

5.We will supply the design layout; we will dispatch the engineer to your side for the installing machine, training your workers. and the buyer only pay for the airtickets, the foods and the hotel for our engineer .

Shipping container need :

Major QT8-15B block machine,JS750mixer,and 8m conveyor belt can be put in one 40HQ container when delivery,if need other support equipments cubic meters,please kindly let me know,i will help you check.

Thanks  for  your time !

For any help , please feel free to contact me !

Sale manager : Amy Liu  MB:0086 13969983506  Skype: donghaowen66
