HFB575A (New)

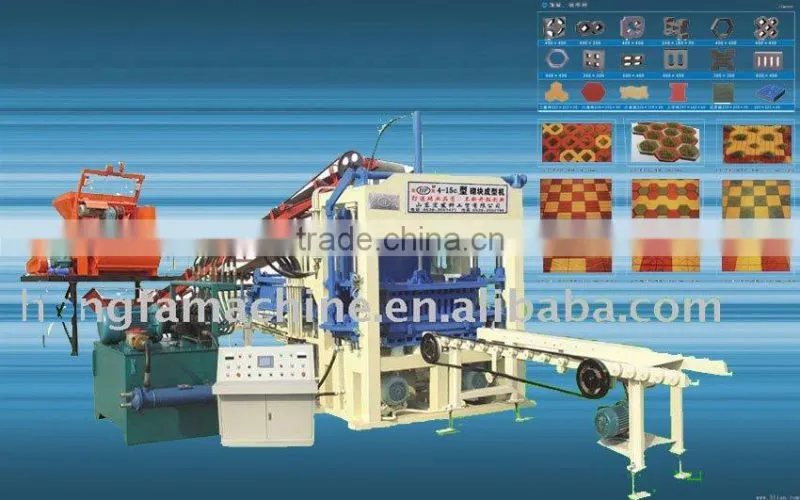

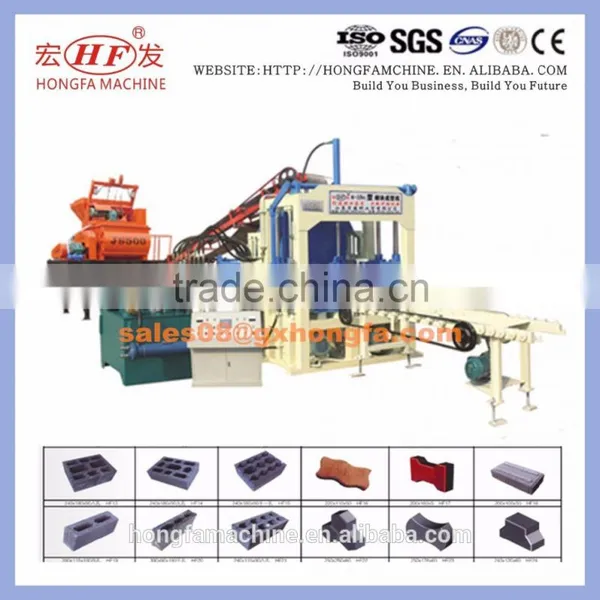

Automatic Cement Block and Brick Making Machine
Grassed paver
1.Brief intruduction :
a) It is a compact oil hydraulic machine according to the standard of international .Many parts from abroad ensure the quality of machine and take fro the power.
b) The vibration system contains platform vibration and mould vibration so the products is very close grained and produced quickly.
c) The novel feeding system gives material exactly and average and assures the products having a high density.
2.Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
Product scope:
It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
3. Main Technical Specifications
Overall Dimension |
7100×1600×2610(mm) |
Rated pressure |
16MPa |
Main vibration form |
Platform vibration |
Cycle Time |
15-25 seconds |
Vibrating Frequency |
4500-5100 r/minute |
Motors Power |
27.5KW |
Weight |
5300KG |
Pallet Size |
1020*570(mm) |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
4.Productivity of QT4-20C block making machine
|
Size mm |
Cycle moulding |
QTY /Mould |
Per hour |
|
Hollow brick
|
400*200*200 |
16-20s |
4 |
720~960pcs |
Solid brick |
240*115*53 |
15-17s |
28 |
5930~6700pcs |
Color brick |
220*110*50
|
20-25s |
16 |
2310~2800pcs |

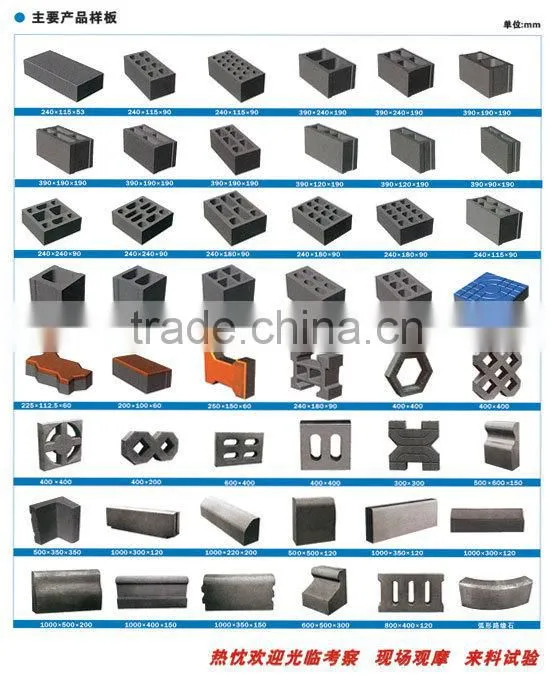

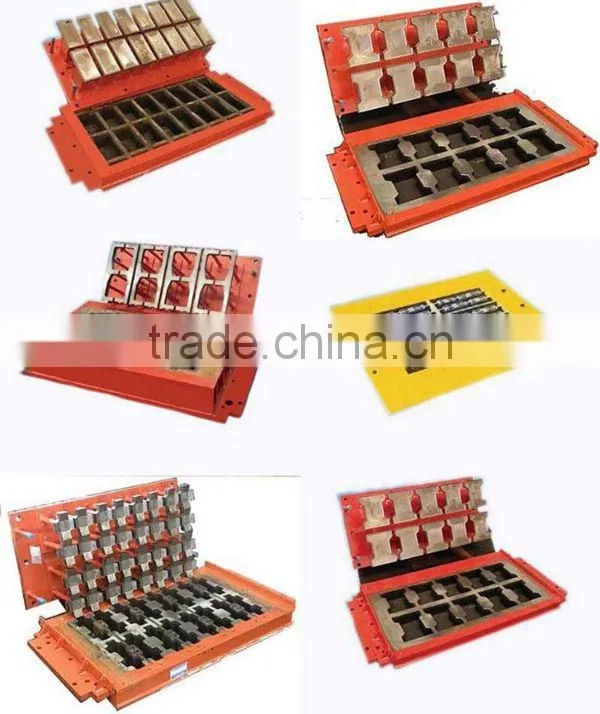

It can produce different blocks by changing mould:
1.Delivery time:within 30 days after receipt of the deposit
2.payment:30% advance payment by T/T, the balance payment by T/T or L/C.
3.Warranty: 1 year.
4.Spare parts: 1 set of the spare parts and 1set of the tools.
5.We will supply the design layout; we will dispatch the engineer to your side for the installing machine, training your workers.
But the buyer will pay for the airtickets, the foods and the hotel.
1.How can I trust you?
1) More than 20 years manufacture experience.
2) The biggest and most famous supplier in China: total 4 factories with 353,000M2 and yearly selling above 100 Million USD.
3) Main products:
-concrete brick machine
-EPS wall panel machine
-AAC production line
-concrete batching plant
-concrete tile machine
-concrete pipe machine.
4) Ever exported to more than 76 countries and area.
5) Continuous service and logistics system.
6) High quality products and competitive price.
Our machines have been checked and got the certification ISO9001 and CE, and always have a good reputation of its quality. What's more, every machine will be tested carefully before shipment, making sure all the machines operate perfectly when it comes to your hand.
2.How long is the guarantee?
Our warranty is one year after installation.
3.Can you help to make installation?
We could send one or two engineers to buyer's places to direct the installation and give the operation training.
The customers should pay for the cost of VISA, room and board, and the round-trip tickets for our engineers.
