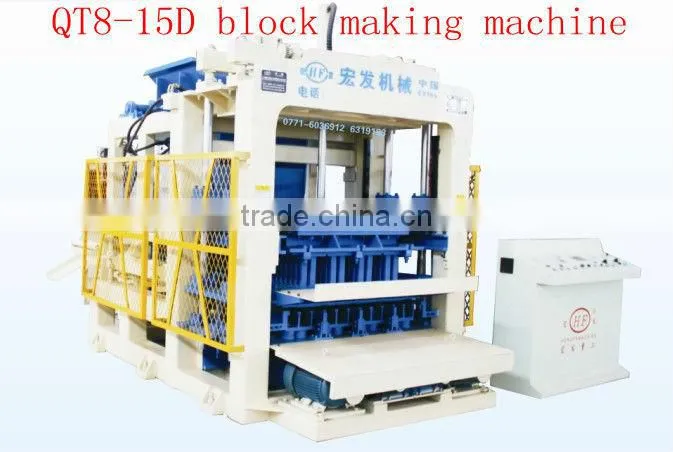

New 8-15 Hydraulic Cement Brick Making Machine price

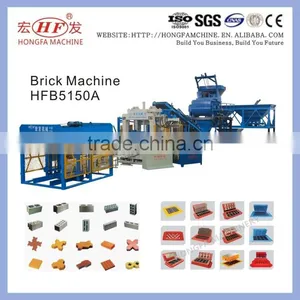

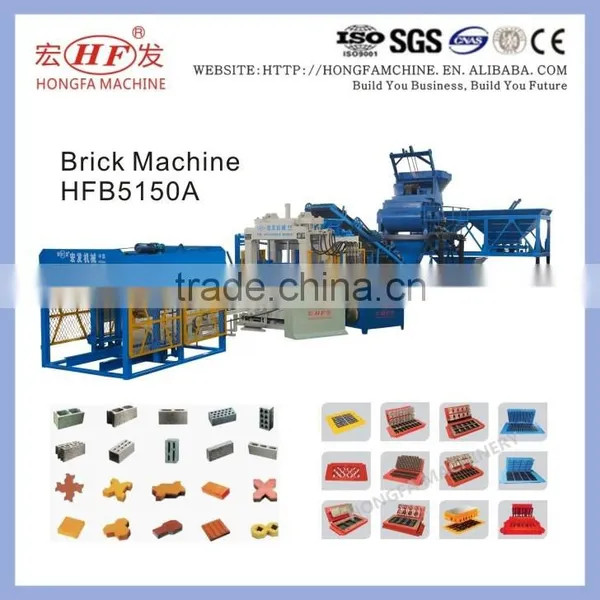

Model: HFB5150A
Brief introduction:
Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have an optimal vibration way.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Control system:
It adopts PLC intelligent control and man-machine interface. Control system is equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person to be the operator.
Product scope:
It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc
.
Main Technical Specifications:
Motors Power
Main Technical Specifications | ||
Overall Dimension |
7500×2100×3020(mm) |
|
Rated pressure |
21MPa |
|
Main vibration form |
Platform vibration |
|
Cycle Time |
15-25 seconds |
|
Vibrating Frequency |
2800-4500 rolls/minute |
|
Pallet Size |
1020*900(mm) |
|
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
|
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
|
Productivity of HFB5150A brick making machine:
|
Size mm |
Cycle moulding |
QTY/Mould |
Per day |
|
Hollow brick
|
400*200*200 |
15-20s |
8 |
11500-15300pcs |
Color brick |
220*110*53
|
20-25s |
28 |
32300-40300pcs |
Standard brick |
240*115*53 |
15-17s |
45 |
76230-86400pcs |

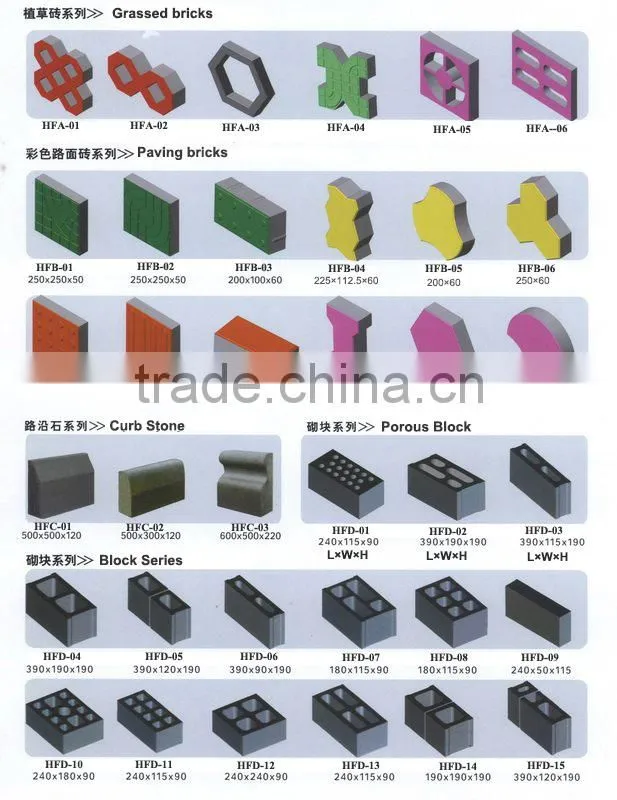

Finished product samples of HFB5150A block making machine:
