Specifications
QT4-15B automatic concrete brick making machine1Japan PLC2electric and hydraulic system3 It produces various bricks/blocks

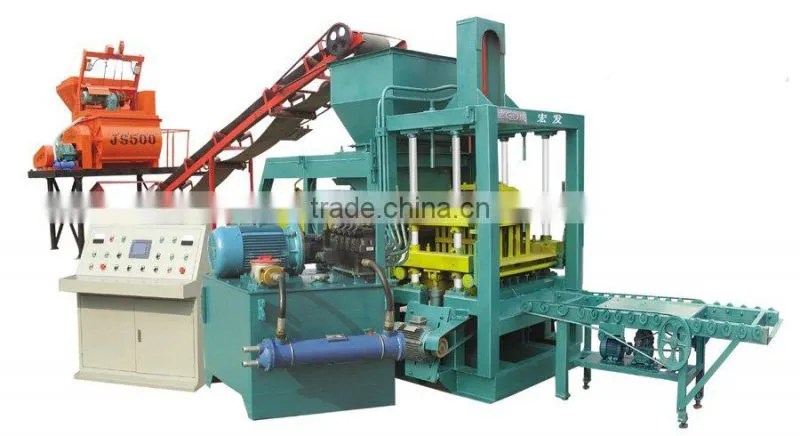

Low price hydraulic concrete bricks & blocks moulding machinery QT4-15B automatic brick making machine sold well in Saudi Arabia
Brief introduction :

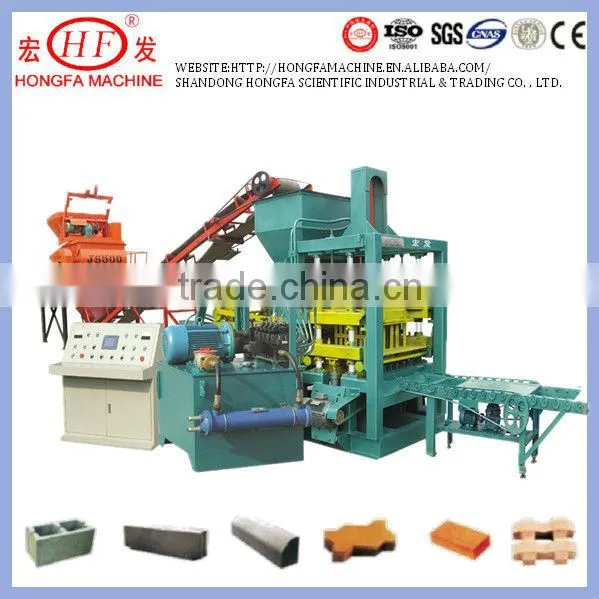

Low price hydraulic concrete bricks & blocks moulding machinery QT4-15B automatic brick making machine sold well in Saudi Arabia
1. It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and reliably.
2. Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
3. The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.
Control system:
Low price hydraulic concrete bricks & blocks moulding machinery QT4-15B automatic brick making machine sold well in Saudi Arabia PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
Product scope:
Low price hydraulic concrete bricks & blocks moulding machinery QT4-15B automatic brick making machine sold well in Saudi Arabia It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Main Technical Specifications
Low price hydraulic concrete bricks & blocks moulding machinery QT4-15B automatic brick making machine sold well in Saudi Arabia
Main Technical Specifications | |
Overall Dimension |
6800×1500×2700(mm) |
Rated pressure |
16MPa |
Main vibration form |
Platform vibration |
Cycle Time |
15-25 seconds |
Vibrating Frequency |
4600 rolls/minute |
Motors Power |
27.85KW |
Pallet Size |
950*550(mm) |
Raw Materials |
. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Productivity of QT4-15B block making machine
Low price hydraulic concrete bricks & blocks moulding machinery QT4-15B automatic brick making machine sold well in Saudi Arabia
|
Size |
Size mm |
Cycle moulding |
QTY /Mould |
Per hour |
|
Hollow brick
|
|
400*200*200 |
16-20s |
4 |
720~960pcs |
|
240*115*90 |
15-20s |
14 |
2520~3360pcs |
|
Color brick |
|
225*112.5*60
|
18-22s |
14 |
2280~3200pcs |
PRODUCTS
Low price hydraulic concrete bricks & blocks moulding machinery QT4-15B automatic brick making machine sold well in Saudi Arabia
Equipment
Low price hydraulic concrete bricks & blocks moulding machinery QT4-15B automatic brick making machine sold well in Saudi Arabia
Item |
Model |
Unit |
Host machine |
QT4-15B |
|
PLC control system |
|
|
Mould |
950*550mm |
|
Stacker |
For QT4-15B |
|
Compulsive mixer |
JS750 |
|
Belt conveyor |
8m |
|
Batching machine |
PLD 1200 |
|
Cement silo |
100T |
|
Screw conveyor |
9m / Ø 219mm |
|
Plastic Pallet |
950*550*30mm |
|
Installation service:
My company could send one or two of our engineers to buyers' place to direct the installation and give the operation training. The customers should pay for the cost of room and board, and the round-trip tickets for our engineers.
Concrete Block Simple production line Sketch
