Specifications

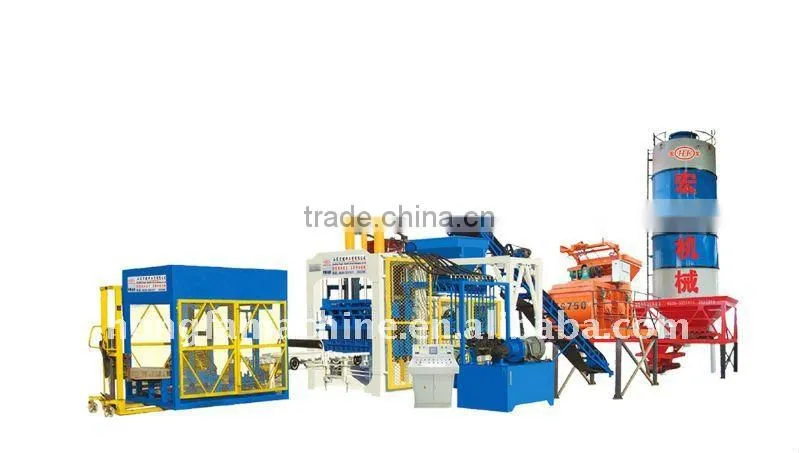

Building block maker construction hollow brick making equipments supplier 1Japan PLC2Electric and hydraulic system workBuilding block maker construction hollow brick making equipments supplier
( passed ISO CE SGS )
for hollow brick , porous brick , solid block , color paver and curbstone

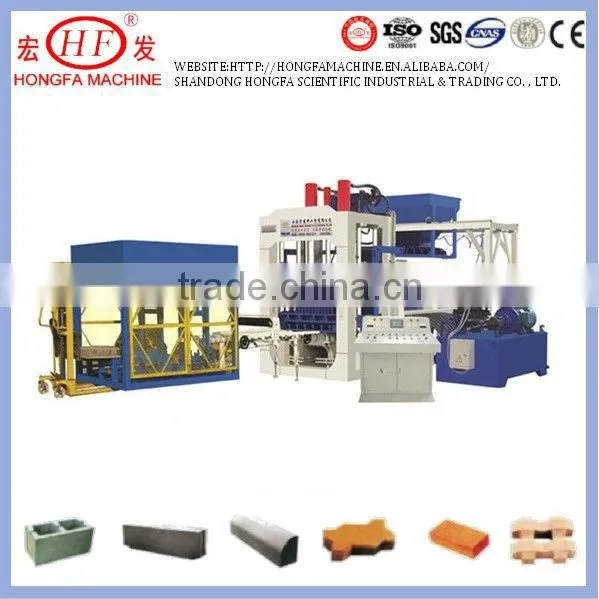

QT8-15B type :
Building block maker construction hollow brick making equipments supplier
QT8-15B production line :
Breif information :
1.The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks ,square bricks ,grassed bricks and so on with different moulds.
2.Low frequency in feeding material, high frequency vibration. Platform vibrating works together with mould, So that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density.
3.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely,therefore ,different materials can be able to produce the high quality products.
4.All the procedures are operated by PLC and equipment with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system.
Building block maker construction hollow brick making equipments supplier
QT8-15B production line:
| Technical parameters : | ||||||||
|
Exciting force(KN) |
Vibration frequency(HZ) |
Molding method |
control mode |
Molding cycle(s) |
Dimension (mm) |
Netweight of host machine |
Pallet |
Total power(kw) |
| 80 | 0-60 |
automatic charging, vibrating and pressing |
Full automatic PLC control |
15-20 | 7520*2040*2960mm | 9T | 1100*680mm | 37 |
| Productivity : | ||||||||
| Item | block size(mm) | Qty per mold |
Molding cycle |
Qty per hour | ||||
| Hollow block | 4000*200*200 | 8pcs | 15-20s | 1440-1920pcs | ||||
| Porous block | 240*115*90 | 18pcs | 15-20s | 3240-4320pcs | ||||
| Solid brick | 240*115*53 | 45pcs | 15-17s | 8100-10800pcs | ||||
Building block maker construction hollow brick making equipments supplier
QT8-15B production line :
Brick samples :
Building block maker construction hollow brick making equipments supplier
QT8-15B production line:
Production line design :
QT8-15D major block machine is an automatic type , the production line can be designed by your ideas and local situation .The support equipments can be chosen in each section to make production line according to your exact need.If you like to share you opinion , i can help you make a design
Simple production line :
kind one :
1,Major QT8-15D block machine
2,JS750mixer
3,8m conveyor belt
4,Pallets
Kind two:
1,Batching machine PLD1200
2,JS750mixer
3,8m conveyor belt
4,Major QT8-15D block machine
5,Stacker
6,manual forklift
7,Pallets
Fully automatic production line sketch one :
Fully automatic production line sketch two :
Building block maker construction hollow brick making equipments supplier
QT8-15B production line:
Land and labour need :
Needs 5-6 labour from mixing and transfering finished blocks , the working aera needs 120-200m2 (simple production line) the raw material store and finised blocks store depends on the local situation .
Service :
We can give one year warranty time for free service , in the period , we can send our engineer to customers place for installaion and training . For any help in the machine whole using life , you can feel free to contact with our after sale deparment for 24 hours .
1.Delivery time:within 30 days after receipt of the deposit
2.payment:30% advance payment by T/T, the balance payment by T/T or L/C.
3.Warranty: 1 year.
4.Spare parts: 1 set of the spare parts and 1set of the tools.
5.We will supply the design layout; we will dispatch the engineer to your side for the installing machine, training your workers. and the buyer only pay for the airtickets, the foods and the hotel for our engineer .
Shipping container need :
Major QT8-15B block machine,JS750mixer,and 8m conveyor belt can be put in one 40HQ container when delivery,if need other support equipments cubic meters,please kindly let me know,i will help you check.
Building block maker construction hollow brick making equipments supplier
Shandong Hongfa warmly welcome you :
Shandong Hongfa as the top manufacturer for aerated autoclaved concrete block making machine (AAC) , concrete bricks&blocks making machine with over 20 years experience has four branches in China , We win customers at home and abroad by strong quality and unbeatable service with competitive price , we have exported our products to over 120 countries . Shandong Hongfa is spoken highly by people around the world .
Thanks for your time !
It is our pleasure to be of service to you my friend . Your enquiry is great help for us !
Sale manager : Amy Liu MB:0086 13969983506 Skype: donghaowen66
