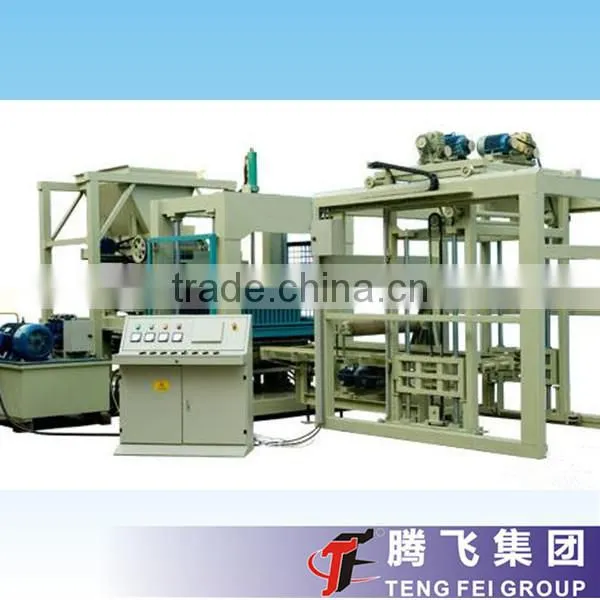

Help CenterQT8-15B Moving Block Making Machine
Related Products
-
NEW Qt5 20 Color Paver Block Making Machine for SaleUS$ 20,560 - 22,600MOQ: 1 Set -
QT10-15 Used Mobile Concrete Block Making Machine for SaleUS$ 78,000 - 79,800MOQ: 1 Set
-
QT5-15 Manual Compressed Earth Brick Block Making Machine for SaleUS$ 25,000 - 33,000MOQ: 1 Set
-
QT4-25 Interlocking Block Making Machine Price -Factory DirectUS$ 42,000 - 43,000MOQ: 1 Set
-
QT8-15A Foam Concrete Block Making Machine -Top SellingUS$ 59,000 - 60,000MOQ: 1 Set
Specifications
QT8-15B moving block making machine1.Molding cycle:15s
2.Machine power:34.5kw
3.Vibration frequency:45-75HZ
4.BV

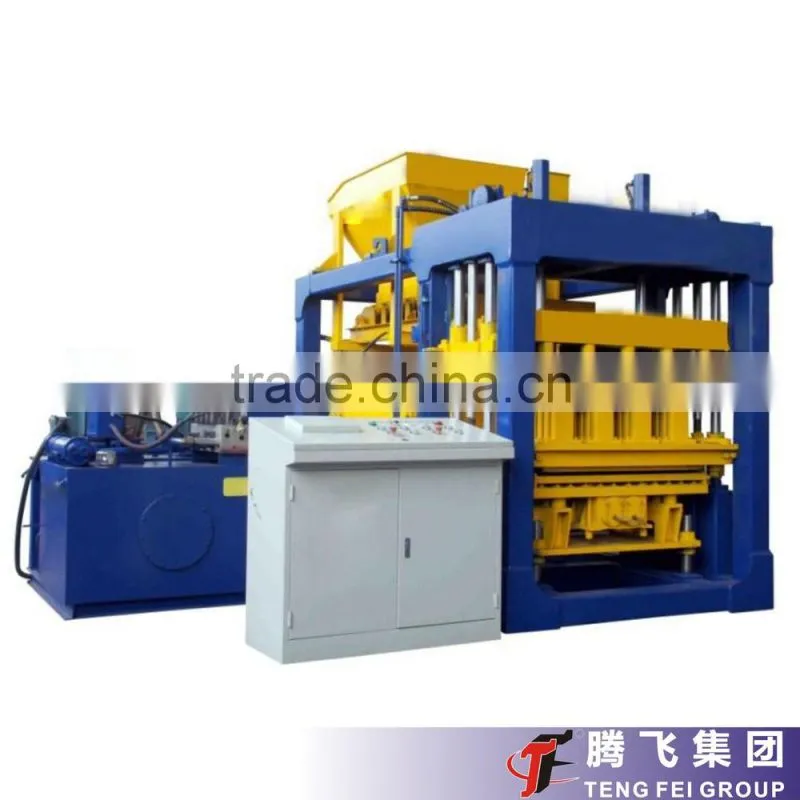

QT8-15B moving block making machine
- PLD1200 batching plant : compounding sand,stone and other material with a good ratio
- JS750 concrete mixer : mixing all kinds of material
- QT8-15 block making machine : making the block
3. Working principle of QT8-15B block making machine
- The sand and gravel and other raw materials will be conveyed by the loader into batching machine, measured by electronic meter and burdening according to the computer storage formula (or random adjustment). After measurement, the material will be conveyed by the conveyor into the hopper of concrete mixer machine, and be conveyed into concrete mixer.
- The cement and flyash will be sconveyed by the screw conveyor into cenment and fly ash measure system severally, and be conveyed into concrete mixer in the end. Then water enter in concrete mixer according to the water cement ratio design.
- After mxing corresponding period, the mixing material will be conveyed into storage hopper of block machine by belt conveyor. Then the mixing material will be sent to the mould by the distributing device.
- Centrifugal force produced by the rotation of distributing shaft fabric would send the material to feeding box forcibly, the distributing device returned after feeding. discharge head goes down and at the same time start the vibrator vibration, and vibration compression.
- After moulding, lifting the molding box and the finished product will be extruded and sent to the brick conveyor, after cleaned by the brick face sweeper cleaning machine, the finshed product will be sent to palletizing machine, curing chamber by the forklift in the end.
4. Features of QT8-15 moving block making machine
- Rational design, compact structure, machine body using a high tension steel and special welding technology, widely use import parts, so that the body more stable and reliable.
- Highly efficient, super shock system design, use computer-controlled converter to achieve kinds of vibration frequency and amplitude, thereby increasing the density of products and production effiency greatly.
- All machines adopt the PLC system and controlled by computer that can realize random signal analysis and ensure machines work in the best conditions.
- Equipped with Hydraulic code allocated trigger, can easily make large productivity, automatic production, saving a lot of manpower, maintaining storage yard and liquidity.
- Spiral fabrics semi-mandatory system, so that a more fast uniform material loading.
- Material storage and discharge device adopts enclosed electric roller belt transmission, so that it can control the storage of the small hopper to prevent the concrete liquefied by the effect of vibration ageing technology, and then ensure the product’s degree of hardness.
5. Main technical parameters of QT8-15 moving block making machine
Dimension of host machine |
3000*2100*3090mm |
Power of host machine |
35.1kw |
Weight of host machine |
7.9t |
Viberation force |
60-80kn |
Molding area |
1080*880mm |
Models of mixer |
JS750 |
Water consumption |
5-10t |
Forming period |
15-20s |
Workshop |
260 sq . m . |
Pallet size |
1100*730*25mm |
6. Theoretical production capacity
Size (L*W*H) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8Hr |
400*100*200 |
15.5 |
2790-3255 |
22320-26040 |
400*150*200 |
8.5 |
1530-1785 |
12240-14280 |
400*200*200 |
7.5 |
1350-1575 |
10800-12600 |
400*250*200 |
6.5 |
1170-1365 |
9360-10920 |
230*110*70 |
32 |
5760-6720 |
46080-53760 |
Paver:200*100*60 |
27 |
4860 |
38880 |
Paver:200*163*60 |
20 |
3600 |
28800 |
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole loading.
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Teng Fei Group is a manufacturer of construction machine and mine machine, with more than 15 years experience, mainly produce concrete batching plant, AAC block line, stabilized soil mixing plant, dry mortar production line, cement production line, concrete mixer, concrete pump ,concrete truck, cement silo, crusher, ball mill, raymond mill, sand making line and so on.
