Help CenterQT8-15A Foam Concrete Block Making Machine -Top Selling
Related Products
-
QT8-15B Diesel Power Block Making MachineUS$ 59,000 - 60,000MOQ: 1 Set -
QT10-15 Concrete Brick Machine Price Block Making MachineUS$ 78,000 - 79,800MOQ: 1 Set
-
QT5-20 Paver Block Making Machine PriceUS$ 10,560 - 12,600MOQ: 1 Set
-
2014 Big Sale- Qmr2-40 Price Clay Block Making MachineUS$ 999 - 1,598MOQ: 1 Set
-
NEW Qtj4-26 Block Making Machine Price -Top SellingUS$ 25,000 - 28,000MOQ: 1 Set
Specifications
QT8-15A foam concrete block making machine1.Molding cycle:15s
2.Machine power:34.5kw
3.Vibration frequency:45-75HZ
4.BV
QT8-15A foam concrete block making machine -Top selling

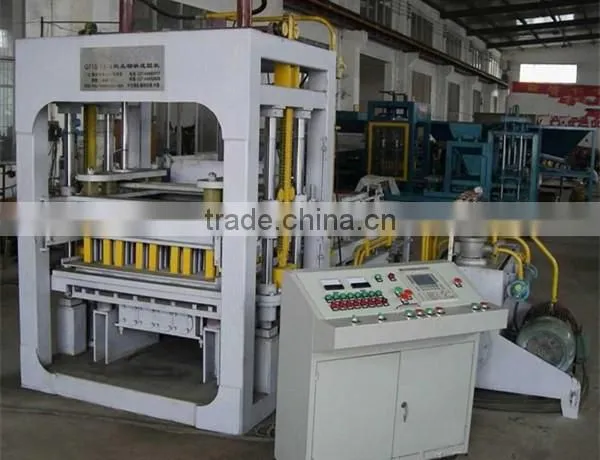

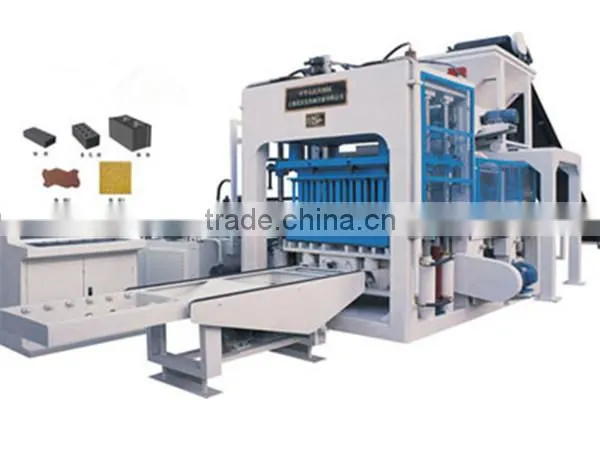

1. Introduction of QT8-15A foam concrete block making machine
QT8-15A block machines controlled by PLC system.By operating its computer interace.the random signal analysis,fault diagnosis and parameter setting-up of all kind of materials can be achieved easily.
For the electro-hydraulic proportional valve is used in its vibrating system.the material-feeding with low frequency and the shape-vibrating with high frequency have been achieved. At the same time installed the Board said devices on the vibration table. And its low 1-1.55mm than the vibration table. When the vibration box drop ,the Board said devices will stand the pallets so that will reduce the pressing of vibration box and increase the vibration force .To build a higher density of block and also will contral the higher of the produces.within the error 1mm. Its rake –feeding system mounter with multirow of stirring forkscan quickly and evenly discharge the materials into the moulding box. According to the produces,its will can changed the the moulds .all kinds of blocks.standard bricks,cellular bricks.grass planting titles,decoration bricks . pavement bricks.ect.can be manufactured,with an annual production capacity of 70.000 cubic meters.

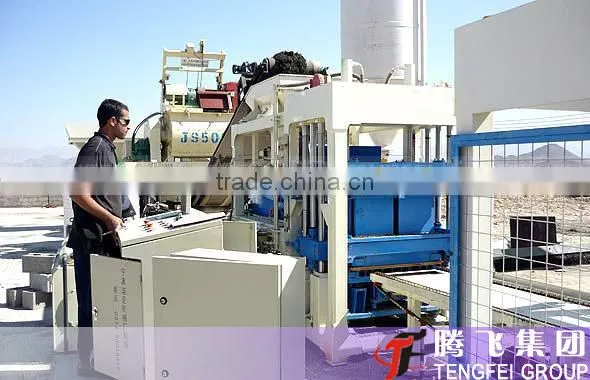

2. Equipments Configuration of QT8-15A foam concrete block making machine
- PLD1200 batching plant : compounding sand,stone and other material with a good ratio
- JS750 concrete mixer : mixing all kinds of material
- QT8-15A block making machine : making the block
3. Working Principle of QT8-15A foam concrete block making machine
- The sand and gravel and other raw materials will be conveyed by the loader into batching machine, measured by electronic meter and burdening according to the computer storage formula (or random adjustment). After measurement, the material will be conveyed by the conveyor into the hopper of concrete mixer machine, and be conveyed into concrete mixer.
- The cement and flyash will be sconveyed by the screw conveyor into cenment and fly ash measure system severally, and be conveyed into concrete mixer in the end. Then water enter in concrete mixer according to the water cement ratio design.
- After mxing corresponding period, the mixing material will be conveyed into storage hopper of block machine by belt conveyor. Then the mixing material will be sent to the mould by the distributing device.
- Centrifugal force produced by the rotation of distributing shaft fabric would send the material to feeding box forcibly, the distributing device returned after feeding. discharge head goes down and at the same time start the vibrator vibration, and vibration compression.

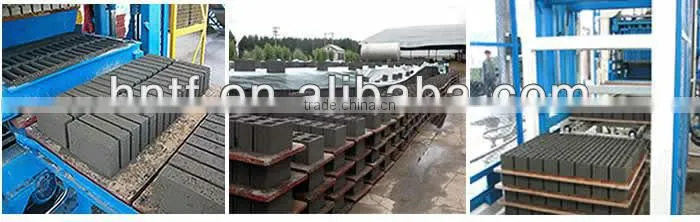

- After moulding, lifting the molding box and the finished product will be extruded and sent to the brick conveyor, after cleaned by the brick face sweeper cleaning machine, the finshed product will be sent to palletizing machine, curing chamber by the forklift in the end.
4. Features of QT8-15A foam concrete block making machine
- Particular storage and discription material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
- Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
- The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
5. Main technical parameters
Dimension of host machine |
3500*1700*2930mm |
Power of host machine |
29.1kw |
Weight of host machine |
8.5t |
Viberation force |
60-80kn |
Molding area |
936*880mm |
Models of mixer |
JS750 |
Water consumption |
5-10t |
Forming period |
15-20s |
Workshop |
260 sq . m . |
Pallet size |
980*900*25mm |
6. Theoretical production capacity
Size (L*W*H) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8Hr |
400*100*200 |
16 |
2880-3360 |
23040-26880 |
400*150*200 |
10 |
1800-2100 |
14400-16800 |
400*200*200 |
8 |
1440-1680 |
11520-13440 |
400*250*200 |
6 |
1080-1260 |
8640-10080 |
230*110*70 |
33 |
5940-6930 |
47520-55440 |
Paver:200*100*60 |
32 |
5760 |
46080 |
Paver:200*163*60 |
20 |
3600 |
28800 |
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole loading.
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Teng Fei Group is a manufacturer of construction machine and mine machine, with more than 15 years experience, mainly produce concrete batching plant, AAC block line, stabilized soil mixing plant, dry mortar production line, cement production line, concrete mixer, concrete pump ,concrete truck, cement silo, crusher, ball mill, raymond mill, sand making line and so on.
